F7 Series OTDR Tester | High Cost Performance
Different dynamic ranges are available

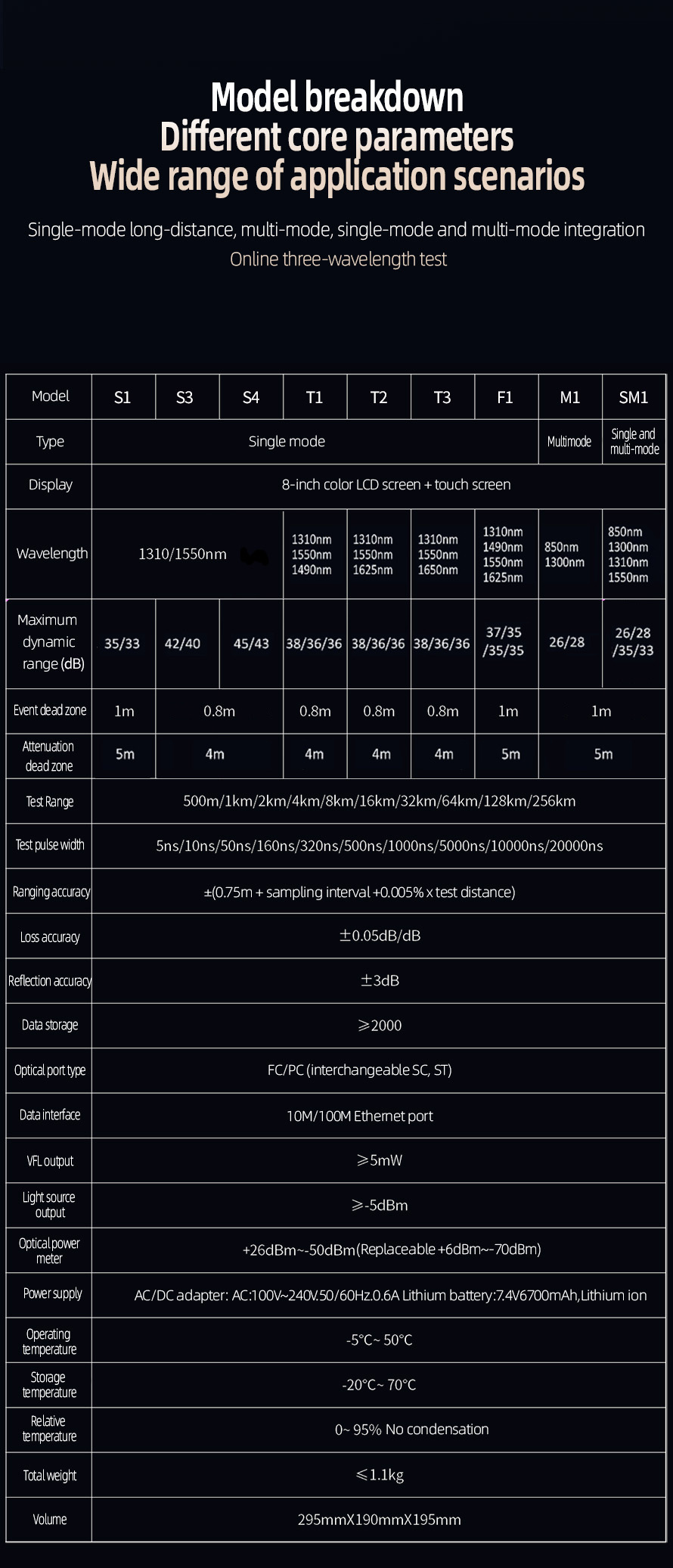

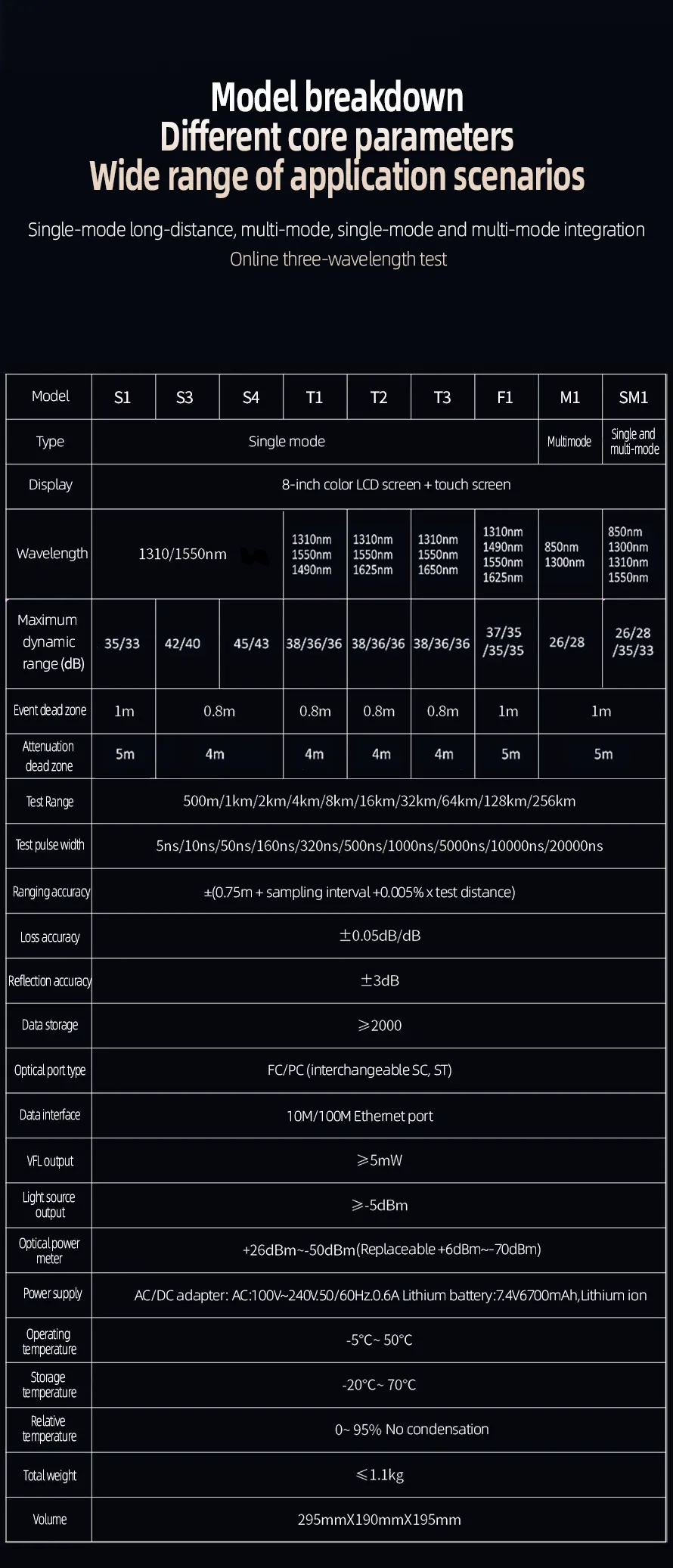

| F7-S1 | F7-S3 | F7-S4 | F7-M1 | F7-SM1 | F7-T1 | F7-T2 | F7-T3 | |
| Wavelength | 1310/1550nm | 1310/1550nm | 1310/1550nm | 850/1300nm | 850/1300/1310/1550nm |
1310/1490/1550nm | 1310/1550/1625nm | 1310/1550/1650nm |
| Dynamic Range | 35/33dB | 42/40dB | 45/43dB | 26/28dB | 26/28/35/33dB | 38/36/36dB | 38/36/36dB | 38/36/36dB |
| Event Dead Zone | 1m |
0.8m | 0.8m | 1m | 1m | 0.8m | 0.8m | 0.8m |
| Attenuation Dead Zone | 5m | 4m | 4m | 5m | 5m | 4m | 4m | 4m |

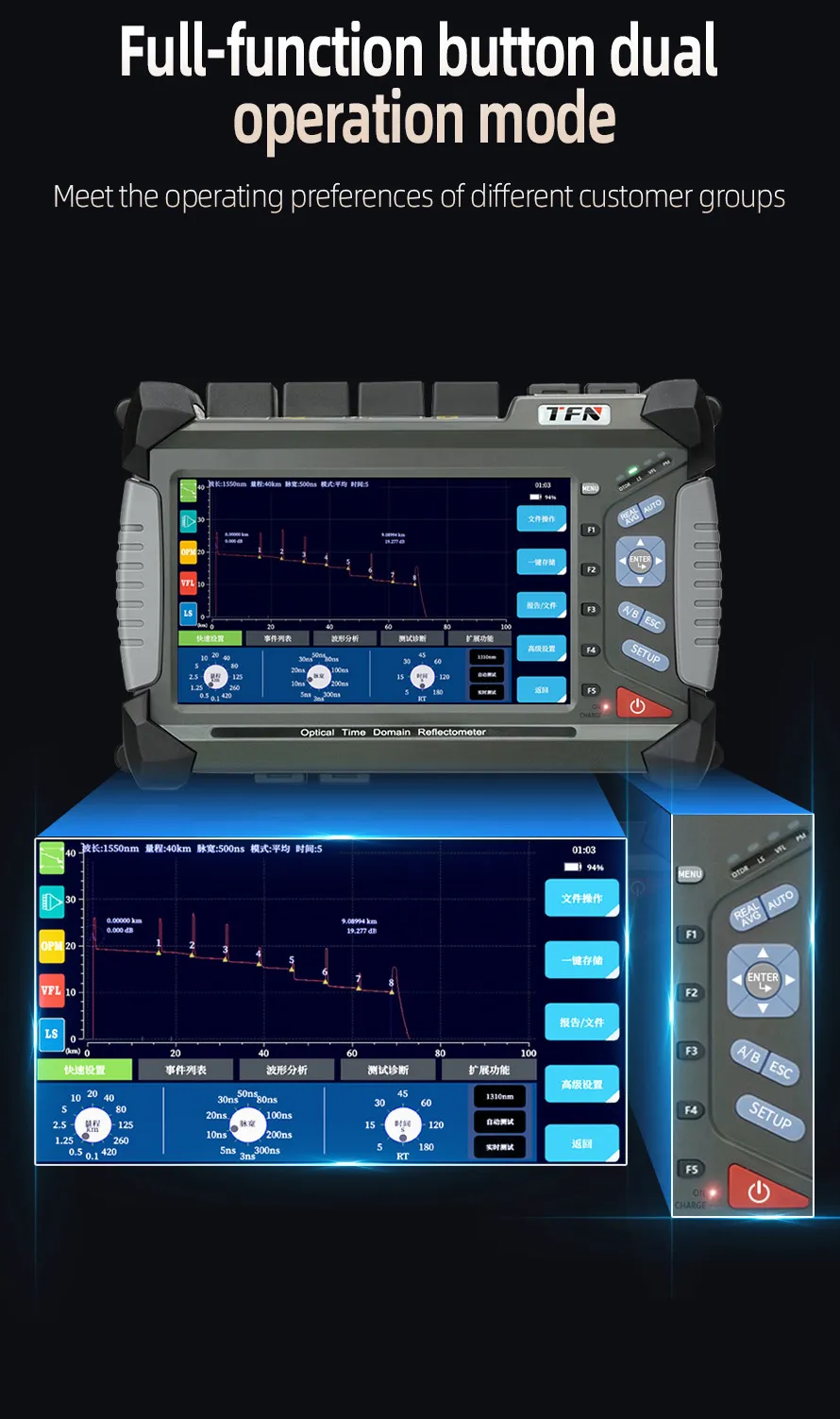

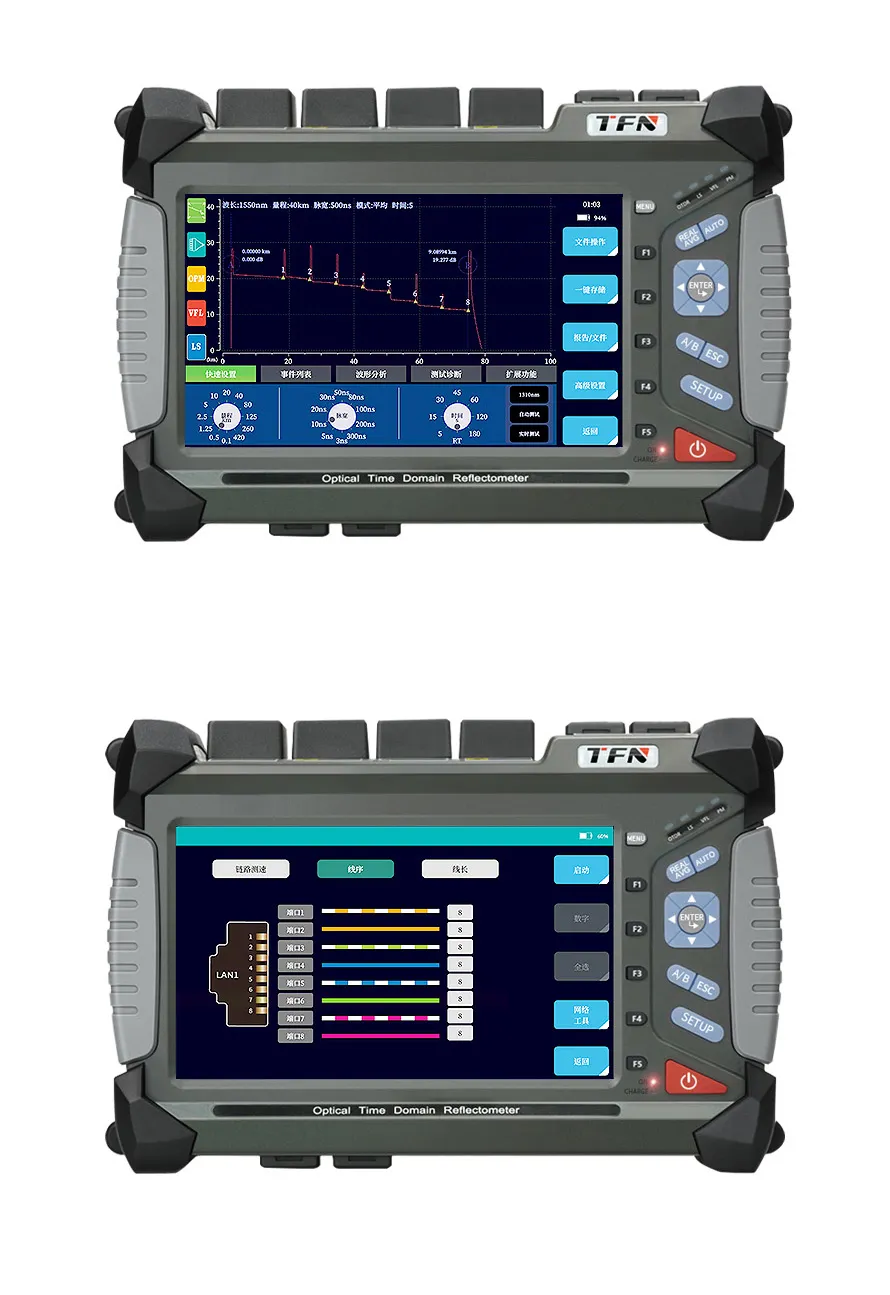

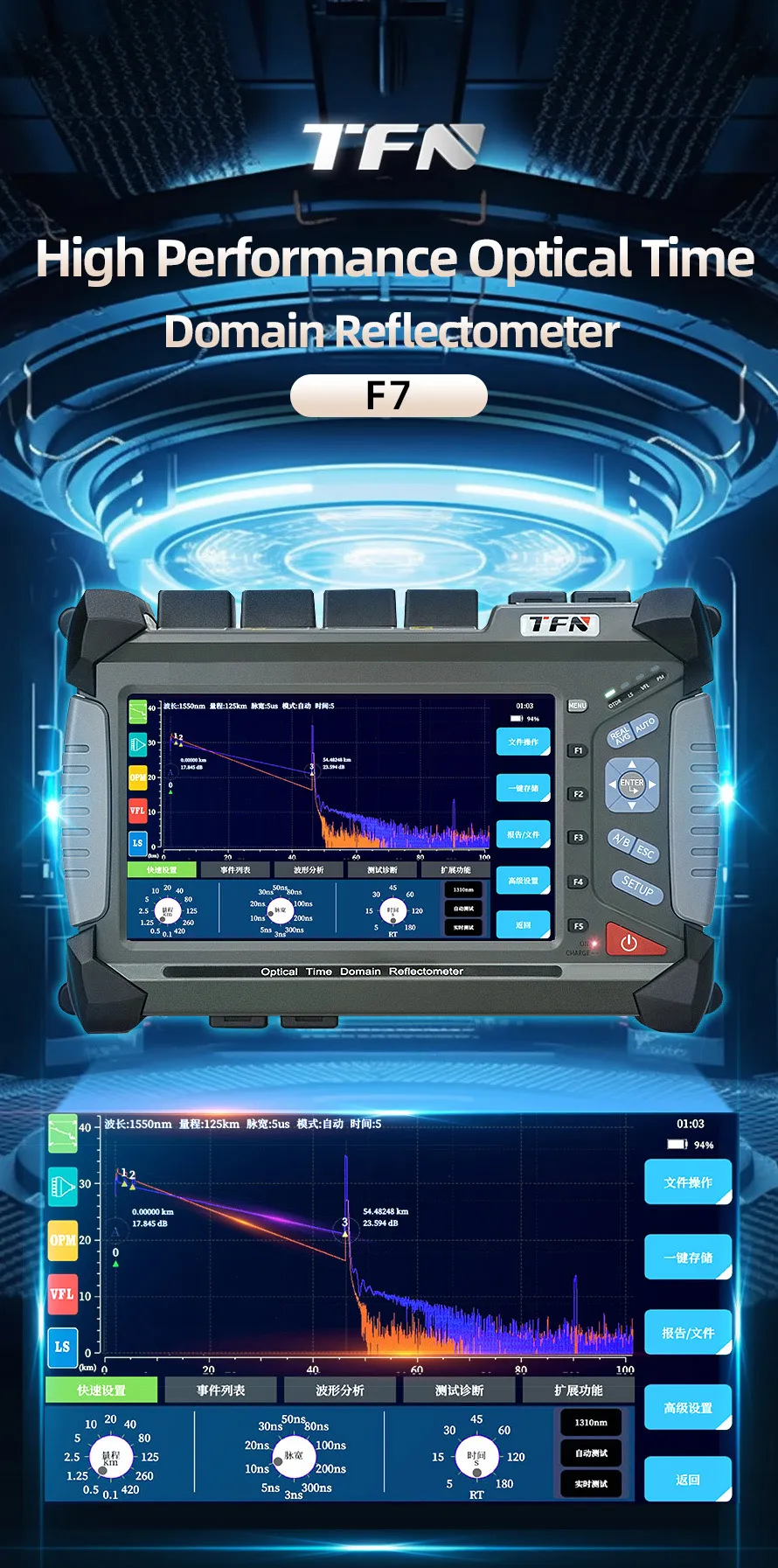

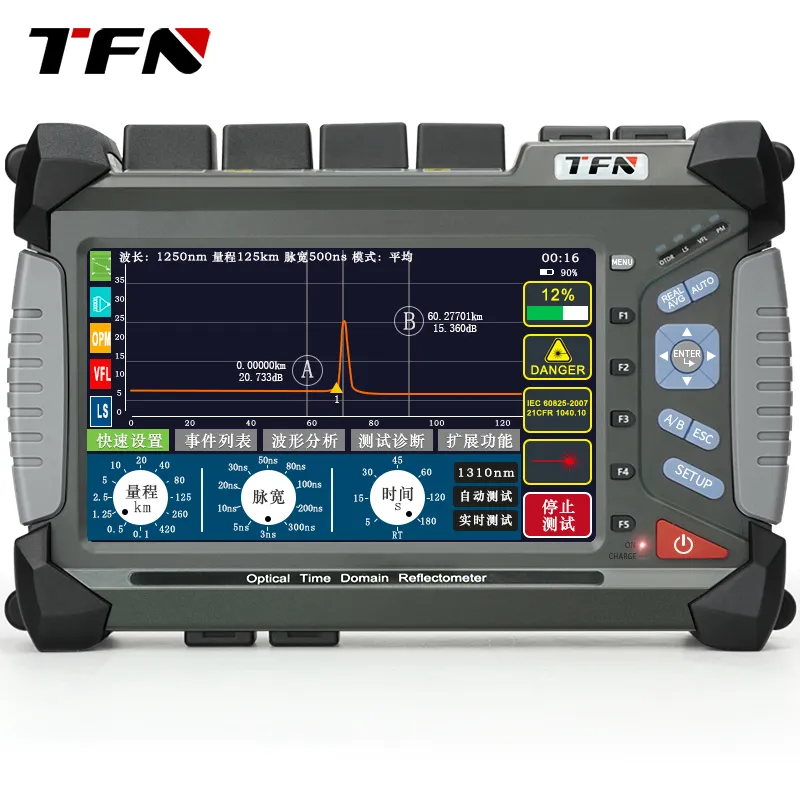

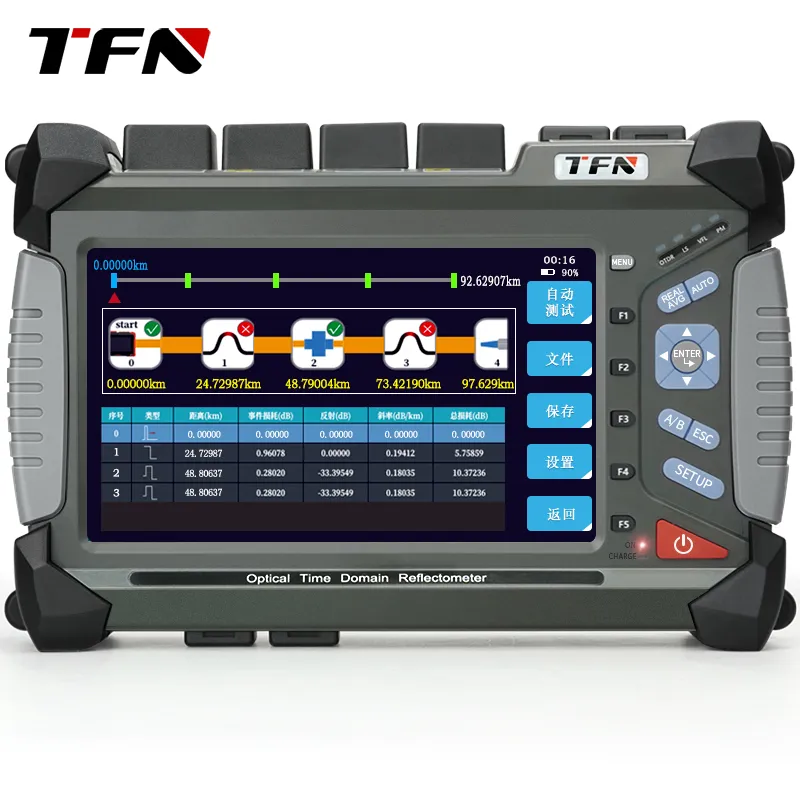

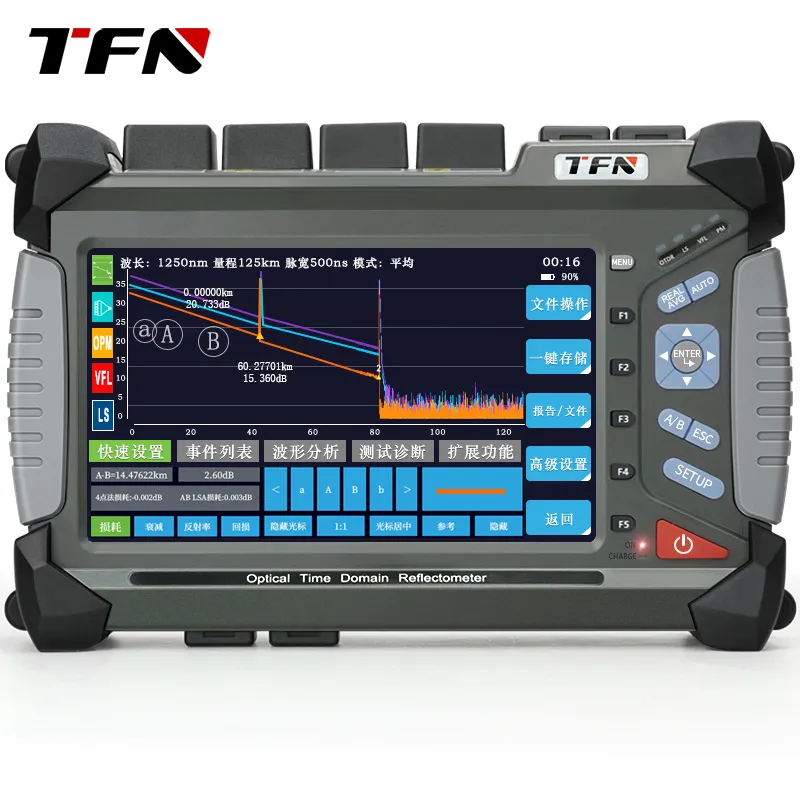

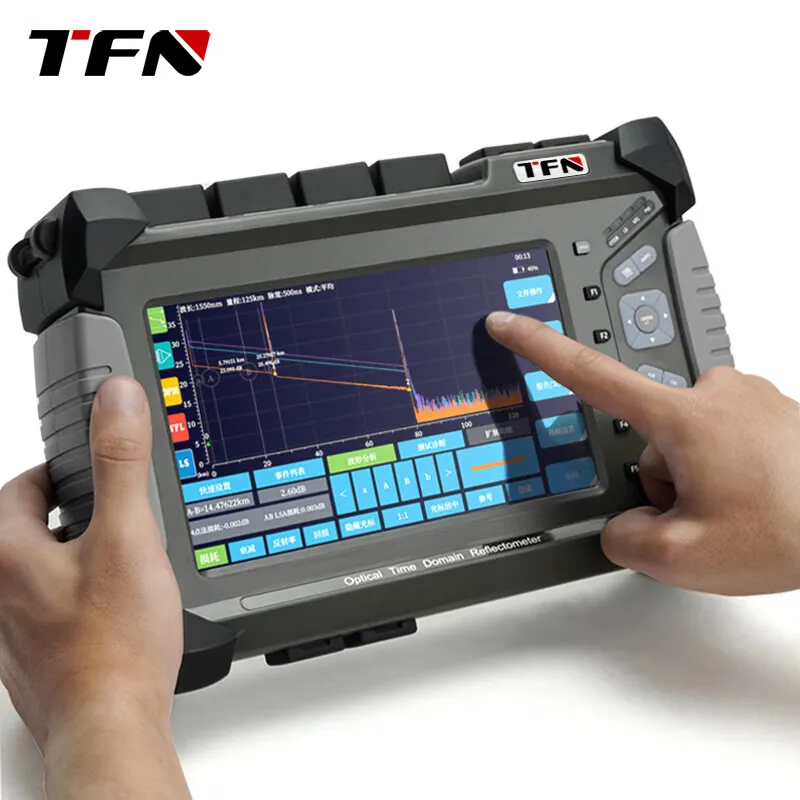

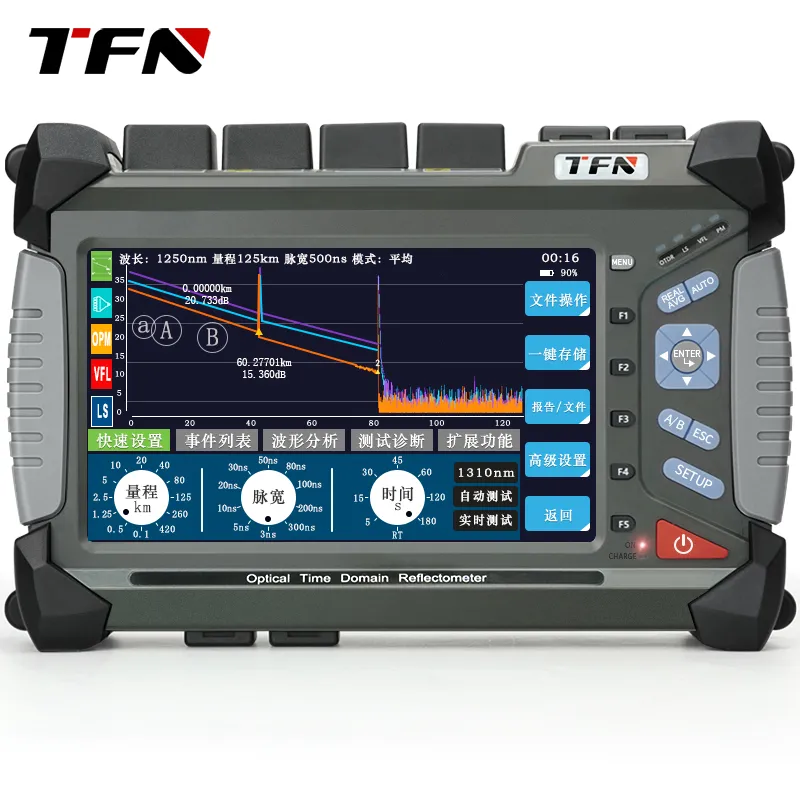

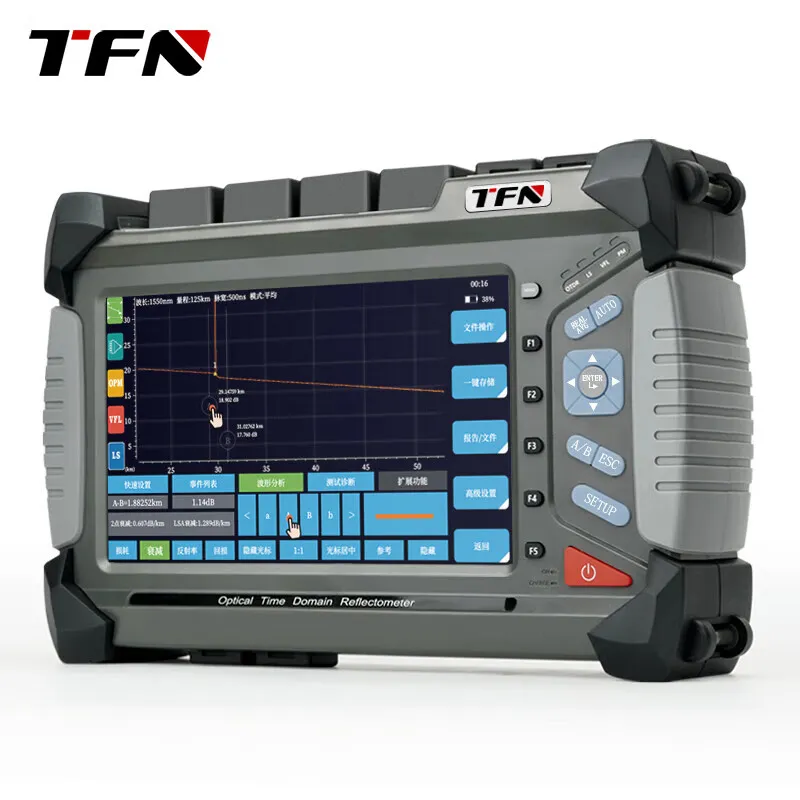

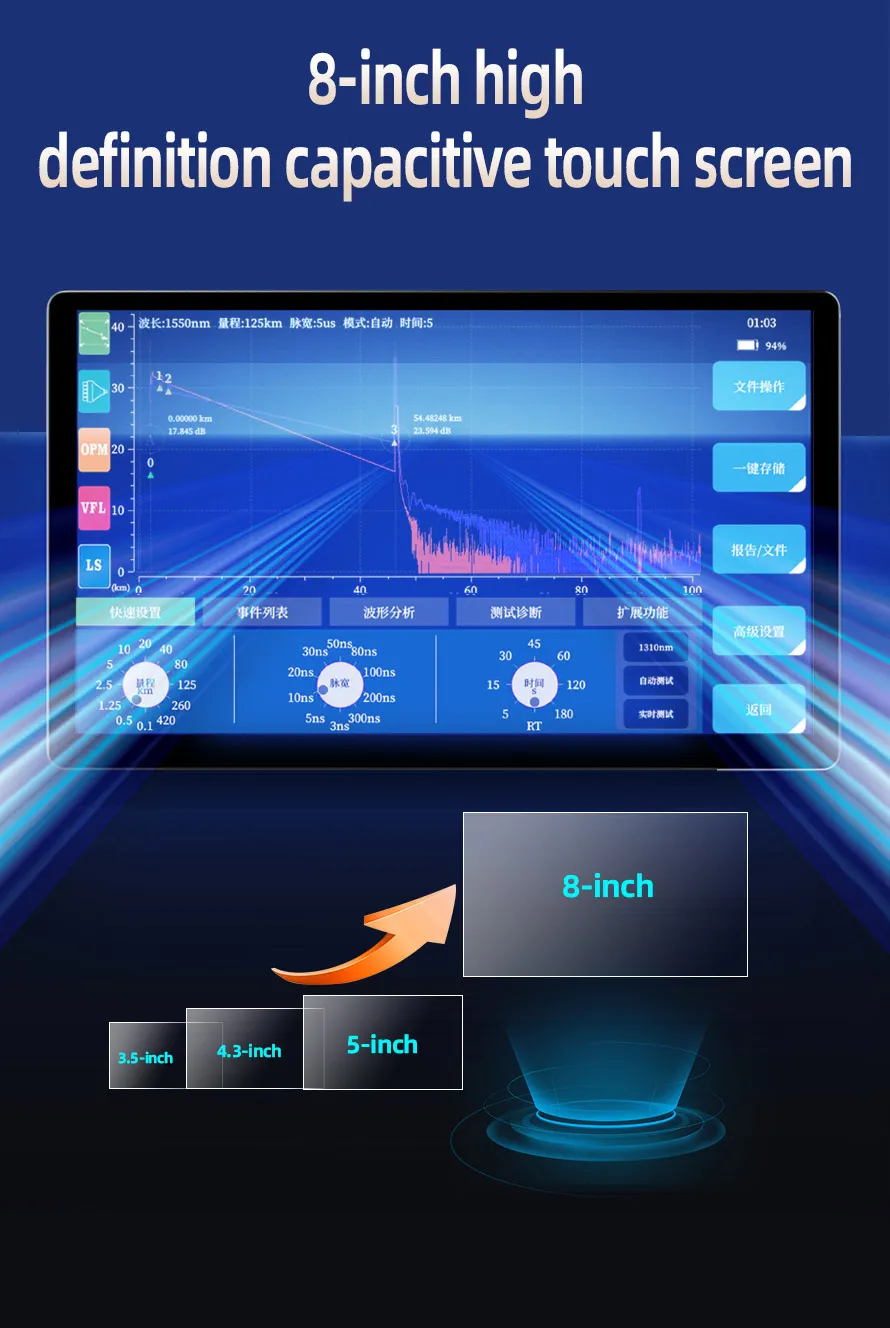

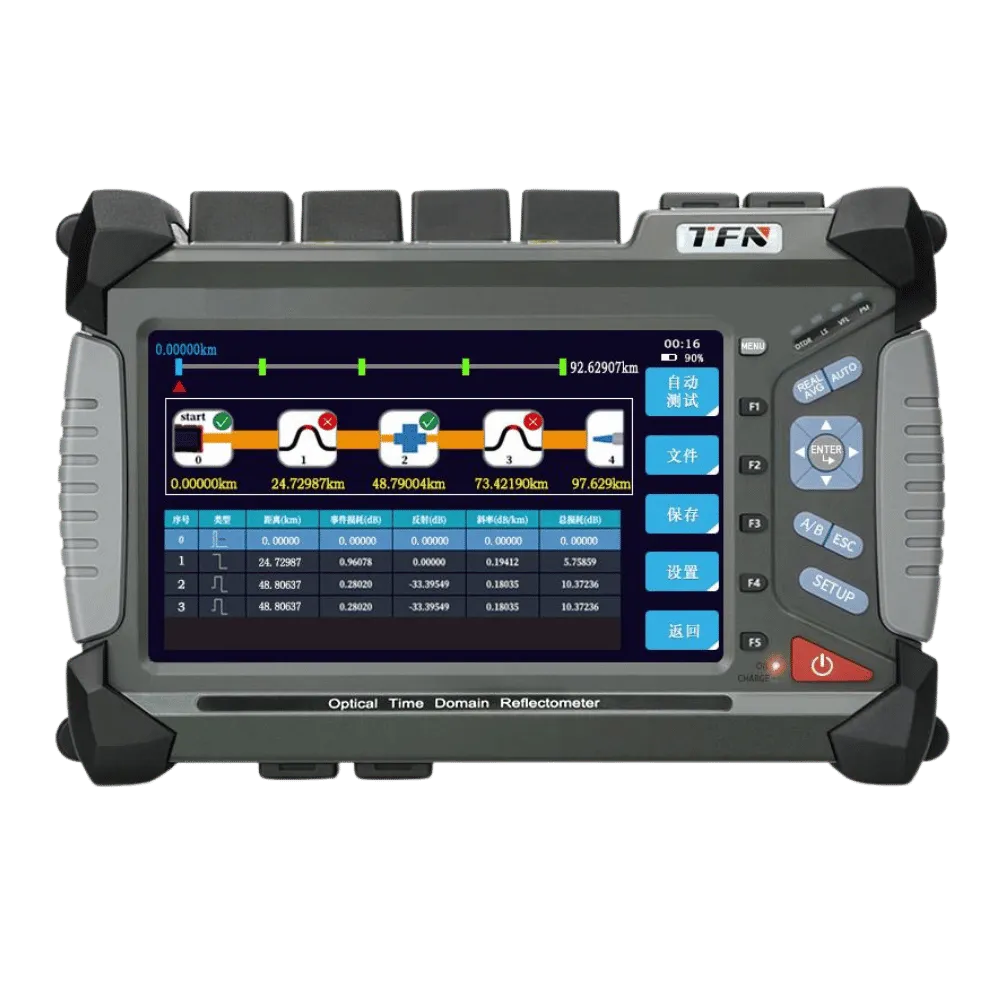

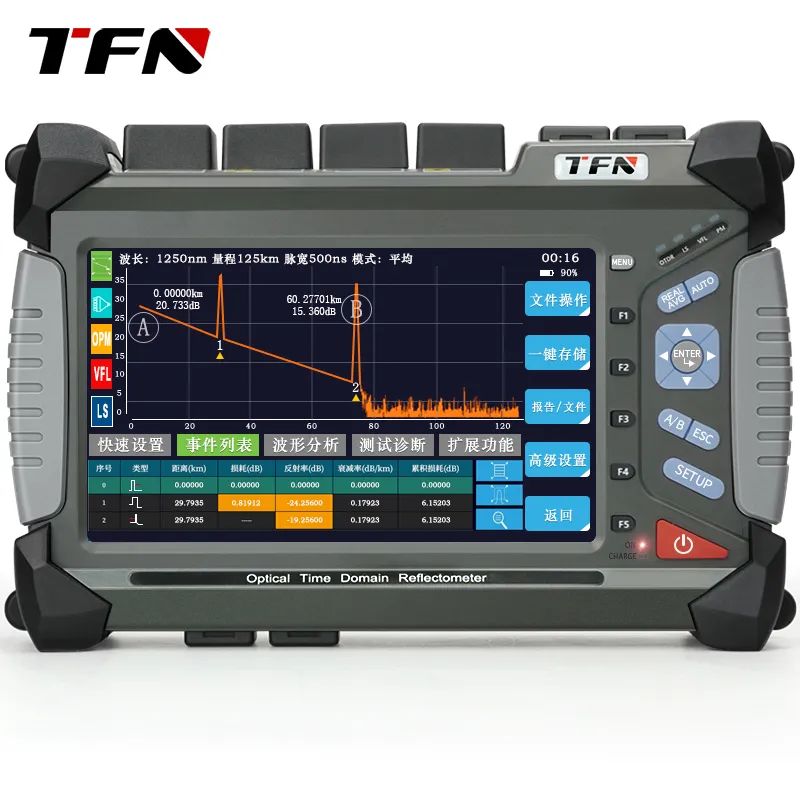

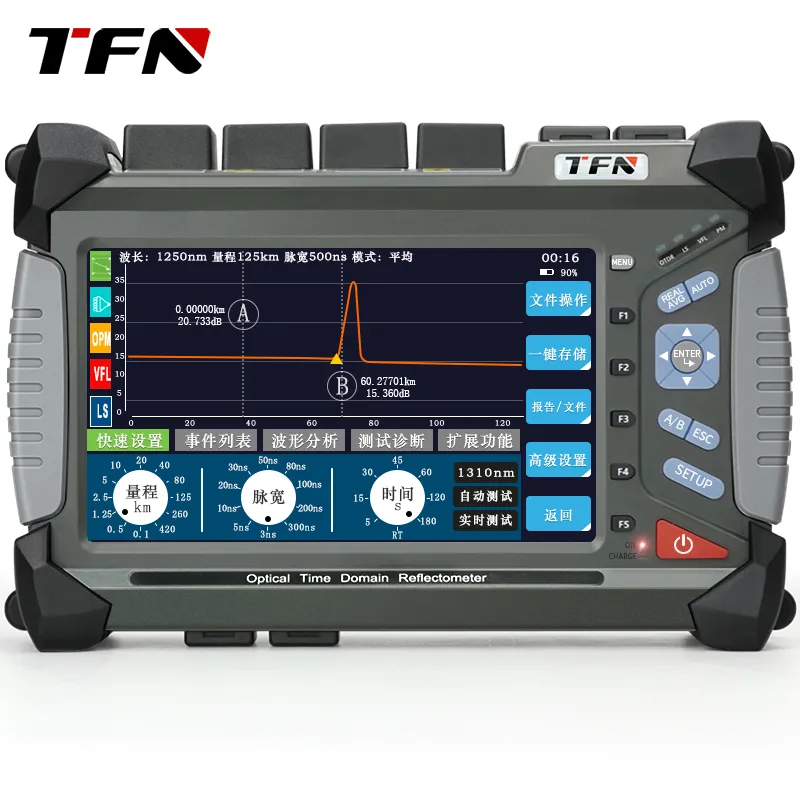

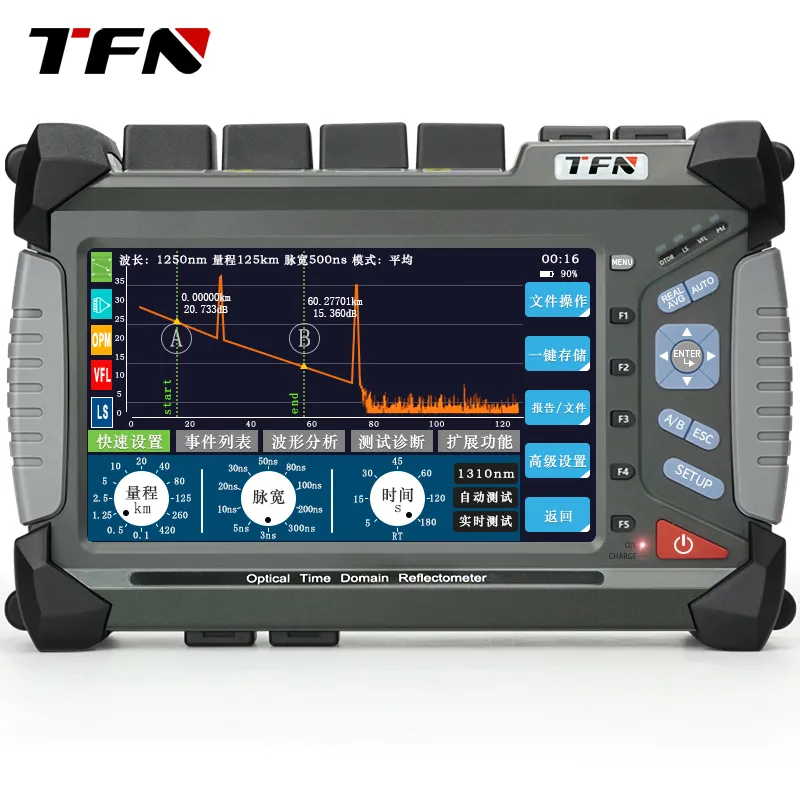

F7 OTDR is a high-performance multi-function test instrument launched for optical fiber testing. It has an 8-inch high-definition capacitive screen and full-function buttons. The product has a starting dynamic range of 35/33dB and can achieve a maximum dynamic range of 45dB and a maximum measurement range of 0.05m distance resolution, with a minimum test blind zone of 0.8m, and rich configuration function modules such as dual-wavelength, three-wavelength (for active fiber online test), four-wavelength, and single-mode and multi-mode integration. The optional online test module can achieve lossless link light Test, the unique test result self-diagnosis function greatly ensures the reliability and validity of the test results.

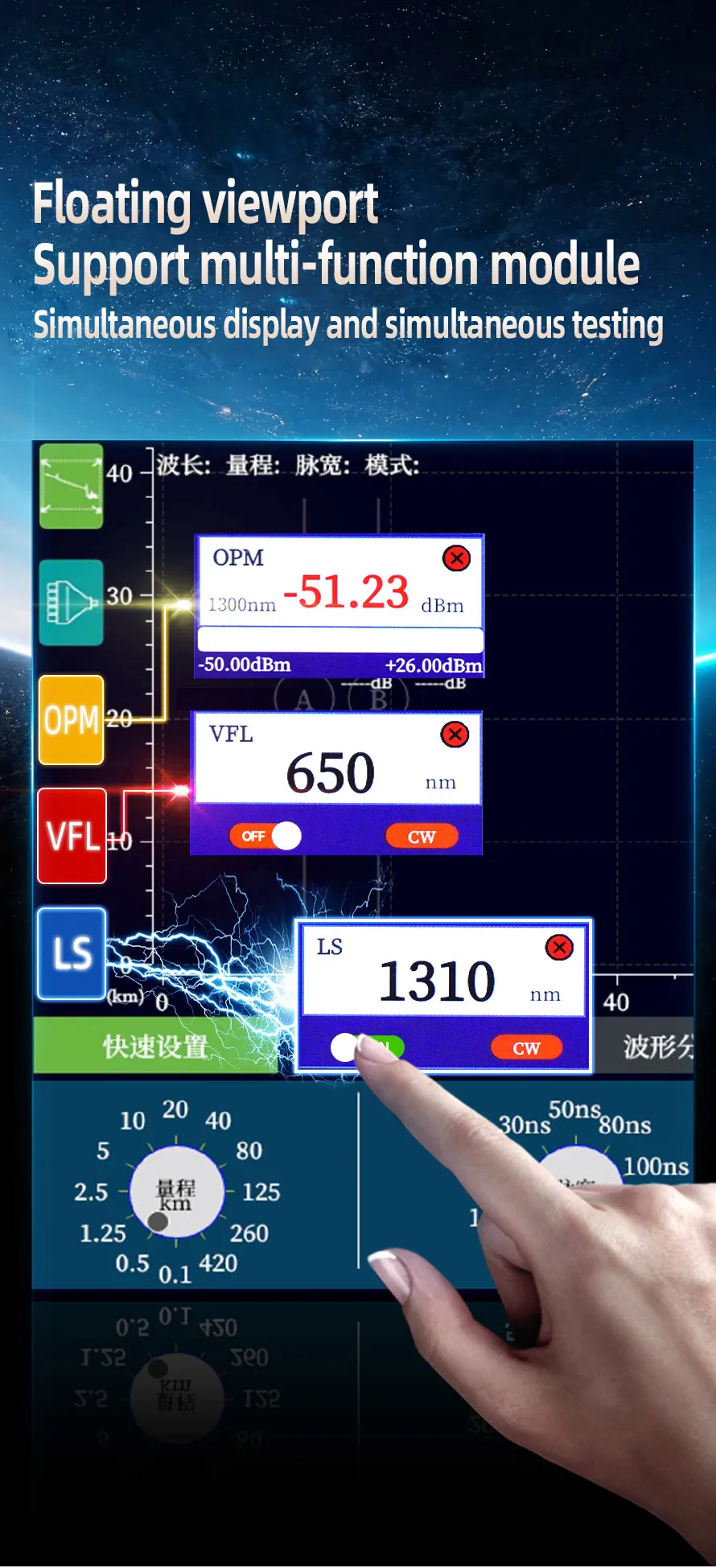

This OTDR tester can realize various testing functions such as optical laser source, optical power meter, VFL, fiber microscope, optical loss test, fault location, photoeye (MAP view), Bluetooth, single-mode and multi-mode testing according to user needs.
