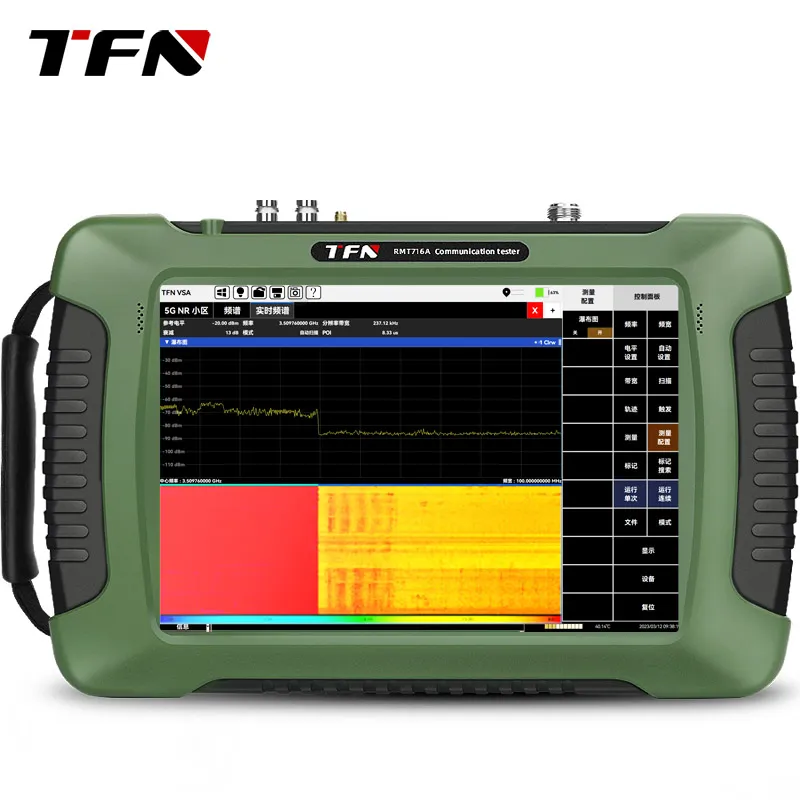

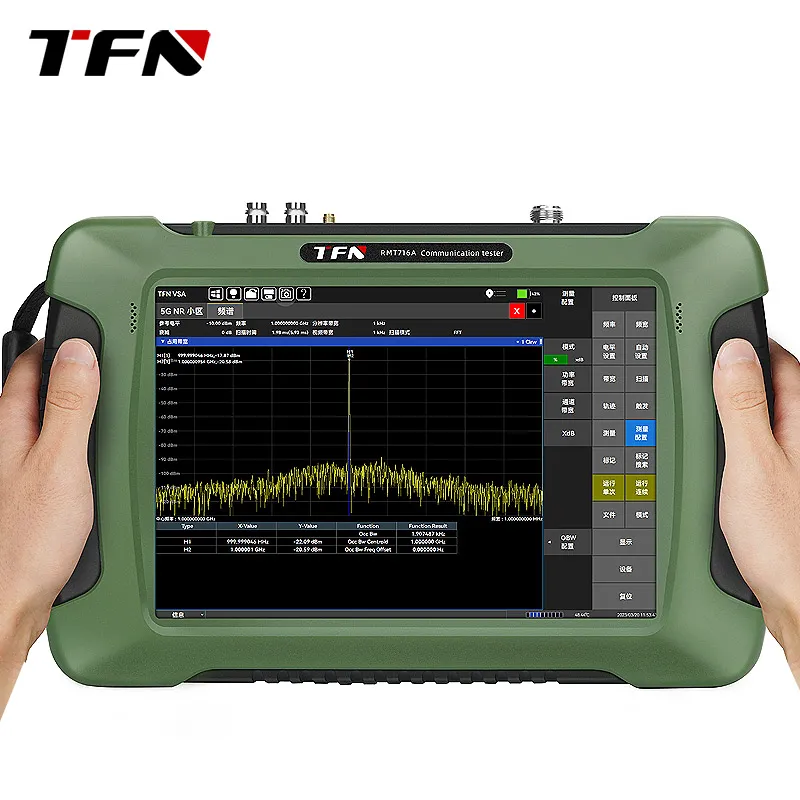

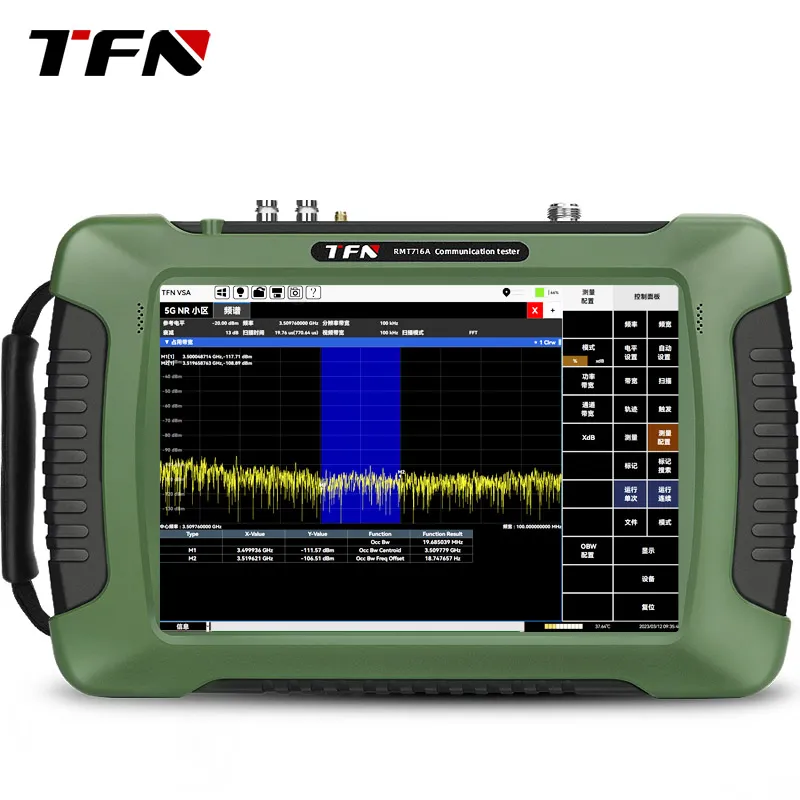

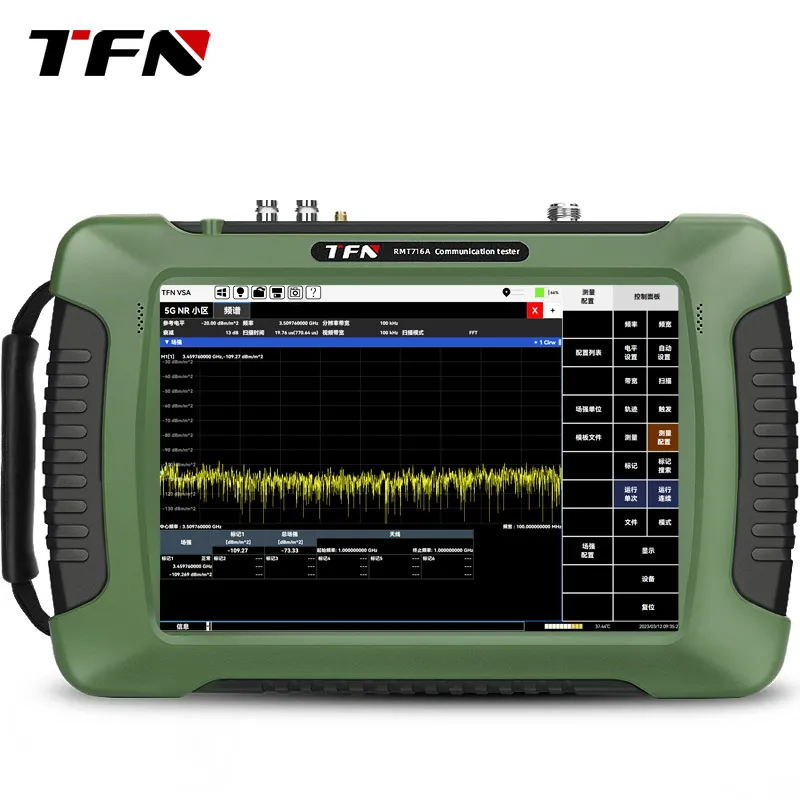

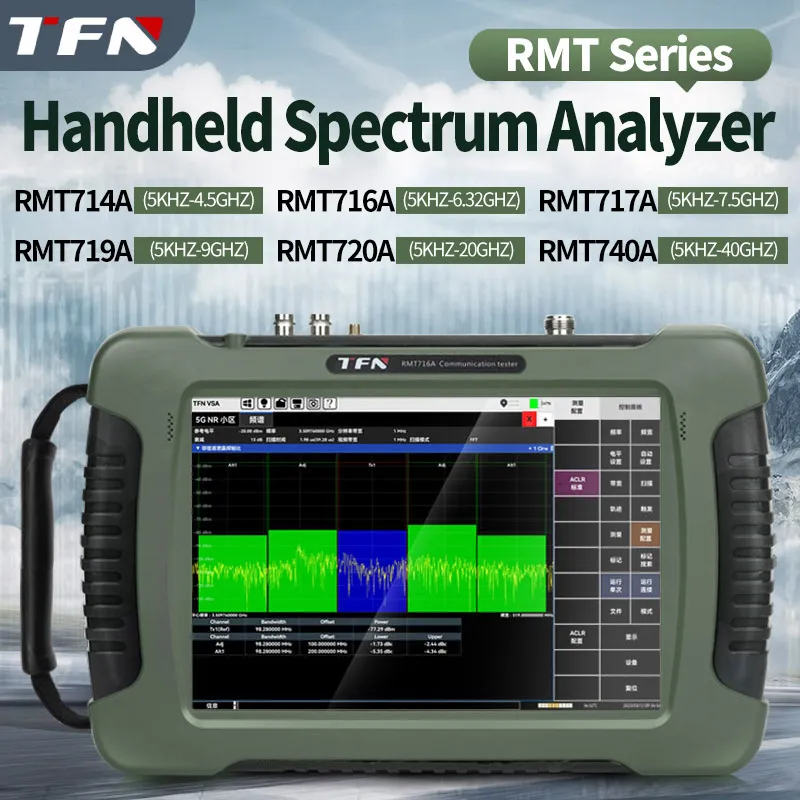

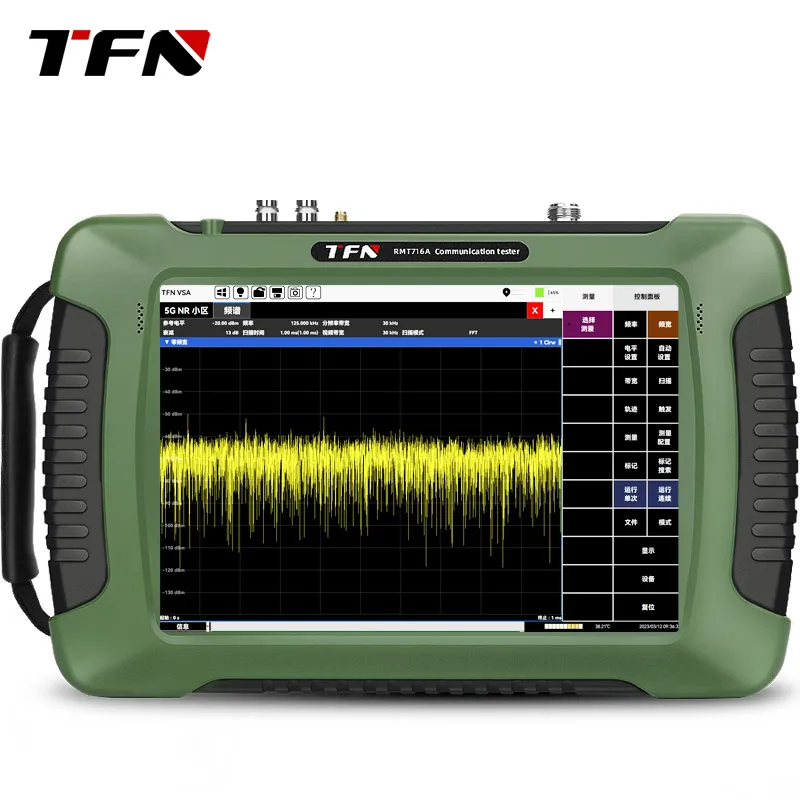

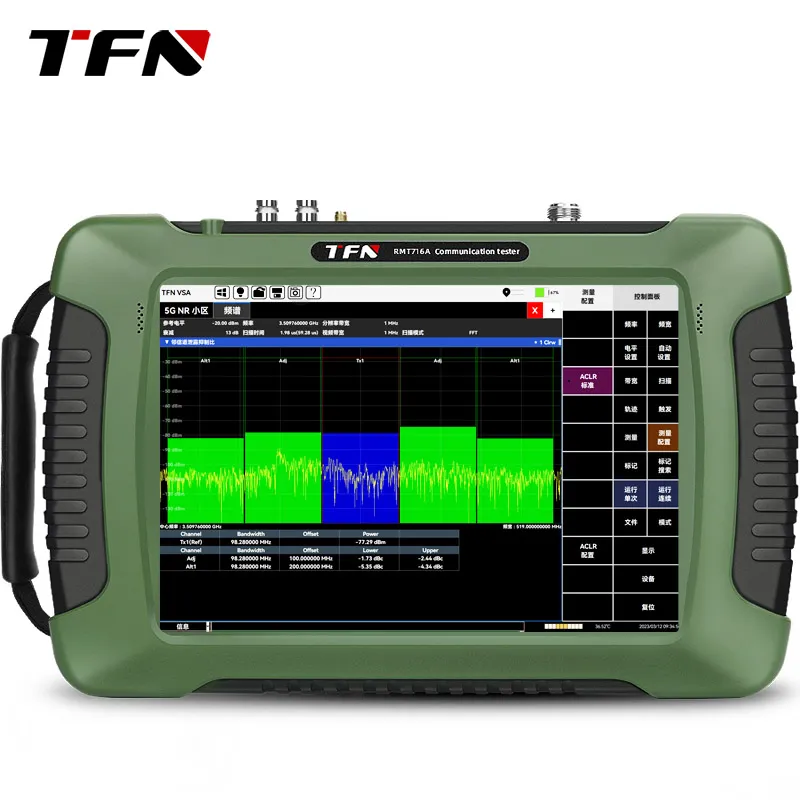

RMT Series Handheld Spectrum Analyzer - Portable RF Signal Analysis Tool
Frequency Range: 5KHz-4.5GHz/6.32GHz/7.5GHz/9GHz/20GHz/40GHz
Product Features:
1. Test frequency range
| Model Name | RMT714A | RMT716A | RMT717A | RMT719A | RMT720A | RMT740A |
| Frequency Range | 5KHz~4.5GHz | 5KHz~6.32GHz | 5KHz~7.5GHz | 5KHz~9GHz | 5KHz~20GHz | 5KHz~40GHz |

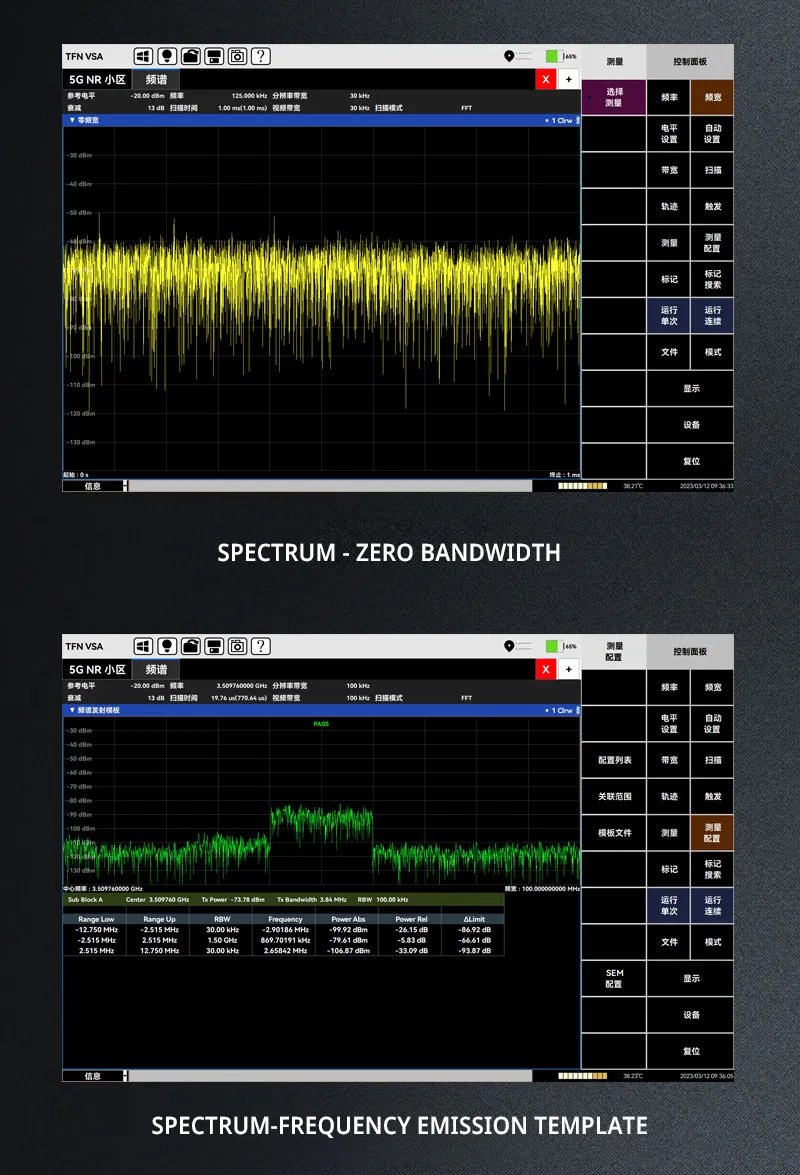

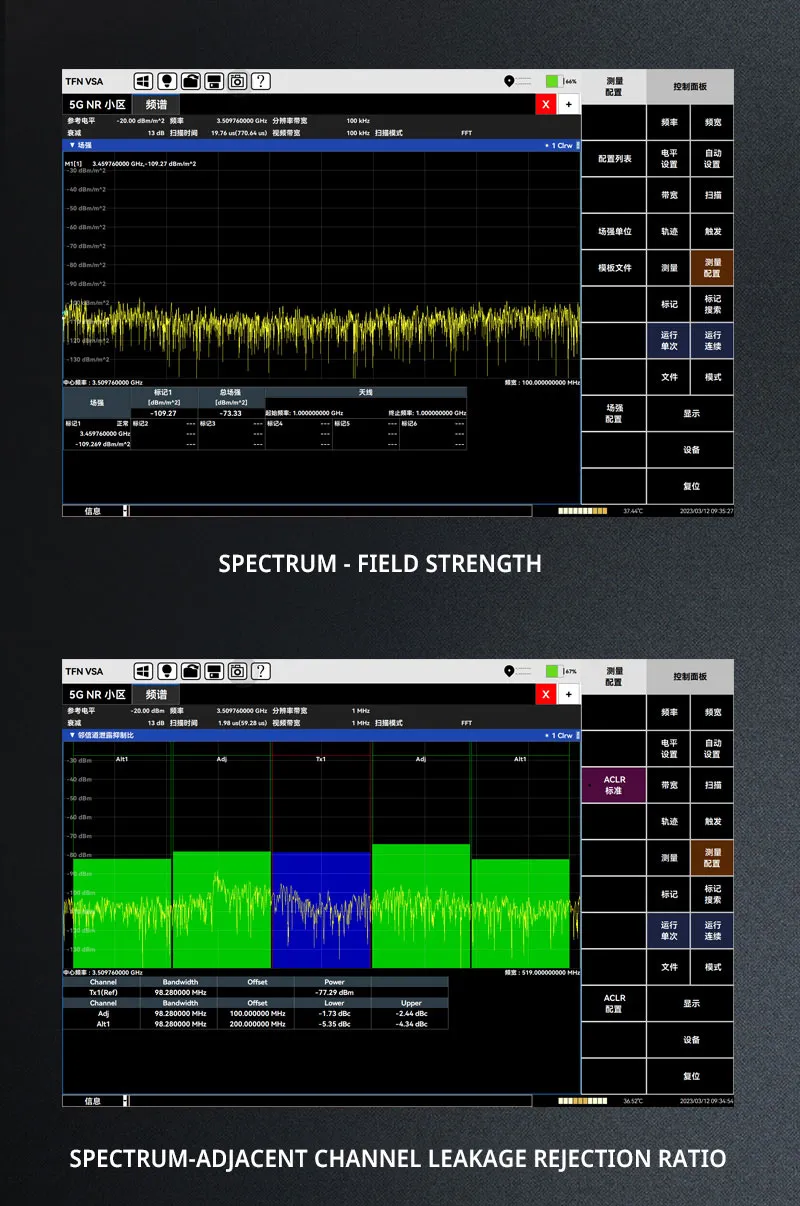

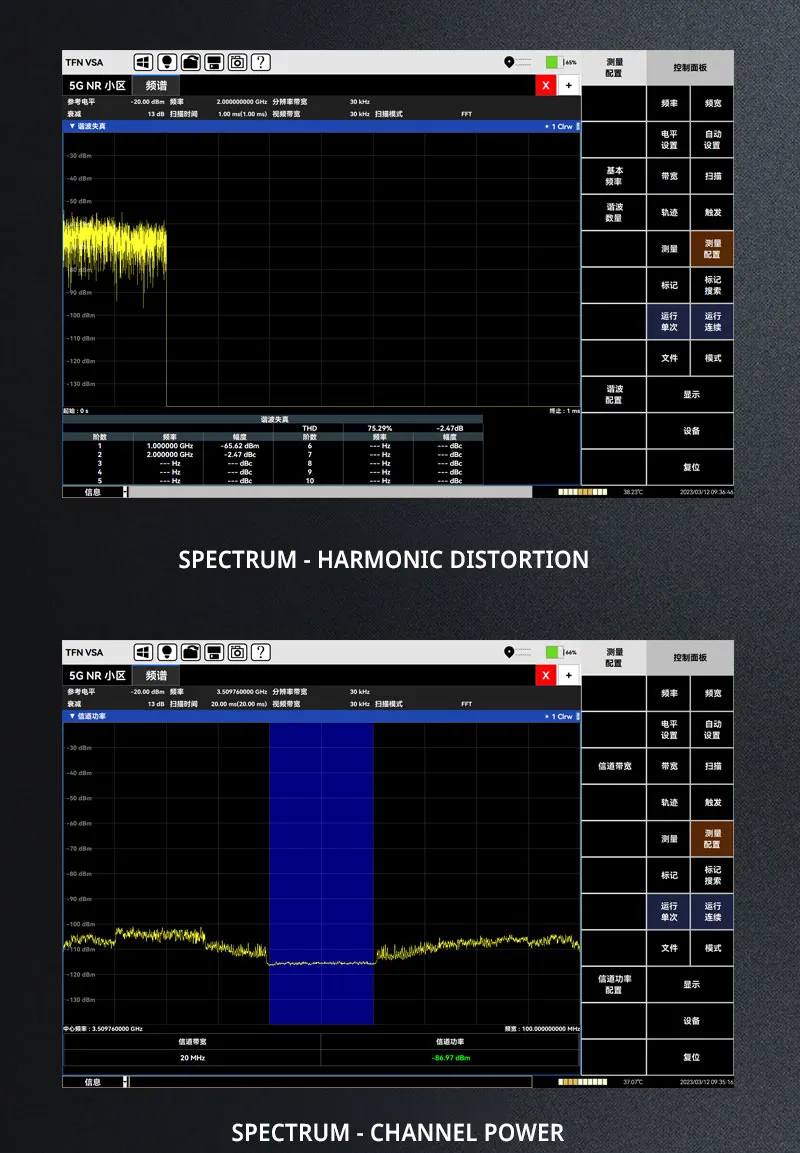

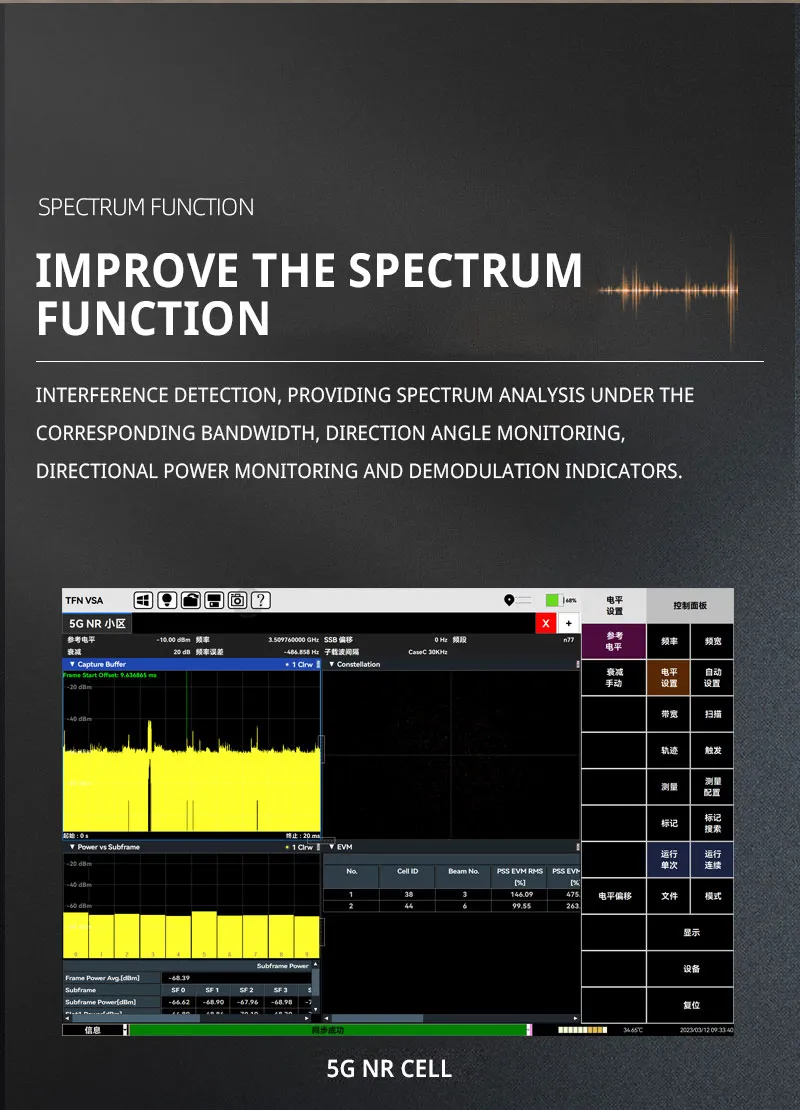

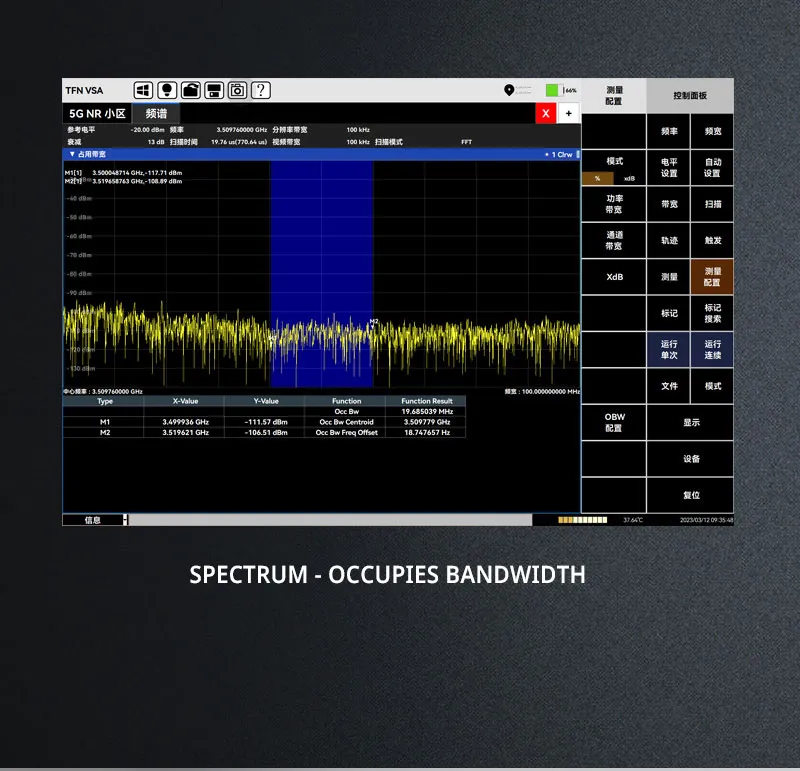

2. Main Functions: Spectrum analysis, Interference analysis, Base station analysis, Road test coverage
3. Spectrum scanning speed 5kHz～9GHz/20GHz can reach 137GHz/s (@25KHz), and can capture 100% of the signal;
4. The receiving sensitivity of Sub 6G can reach -170dBm/Hz, and the receiving sensitivity of high frequency can reach -165dBm/Hz;
5. It has the demodulation and analysis function of various mobile communication systems such as 5GNR/TDD-LTE/FDD-LTE/NB-loT/WCDMA/GSM;
6. Up to 100MHz real-time analysis bandwidth;
7. Support 100MHz bandwidth TDD system uplink and downlink separation interference troubleshooting test;
8. It can export IQ data with 100MHz real-time bandwidth, and support third-party development software to analyze IQ data;

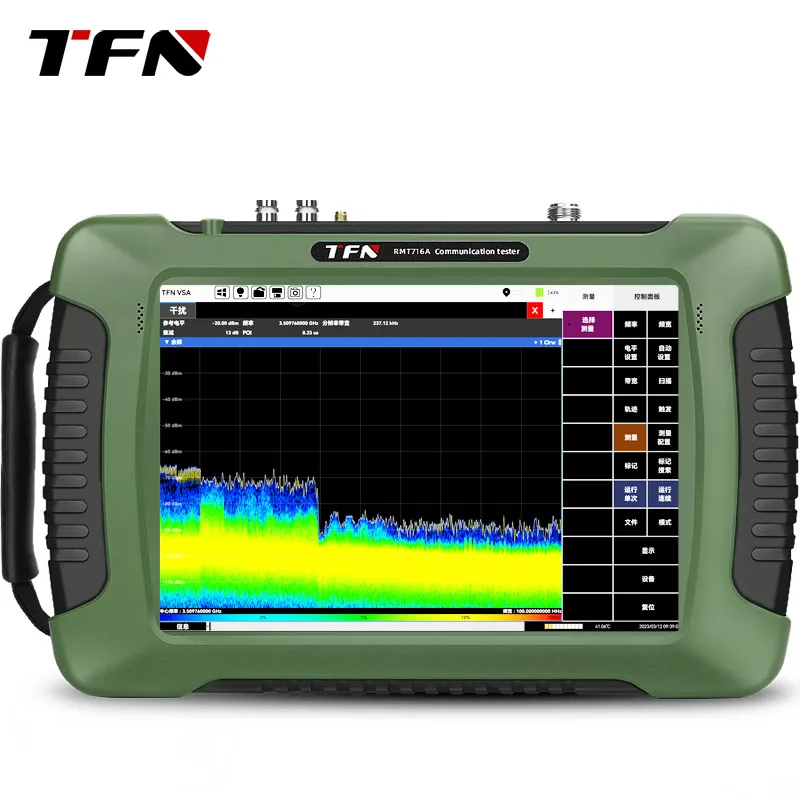

9. Afterglow spectrum, effective monitoring of superimposed signals or burst signals;

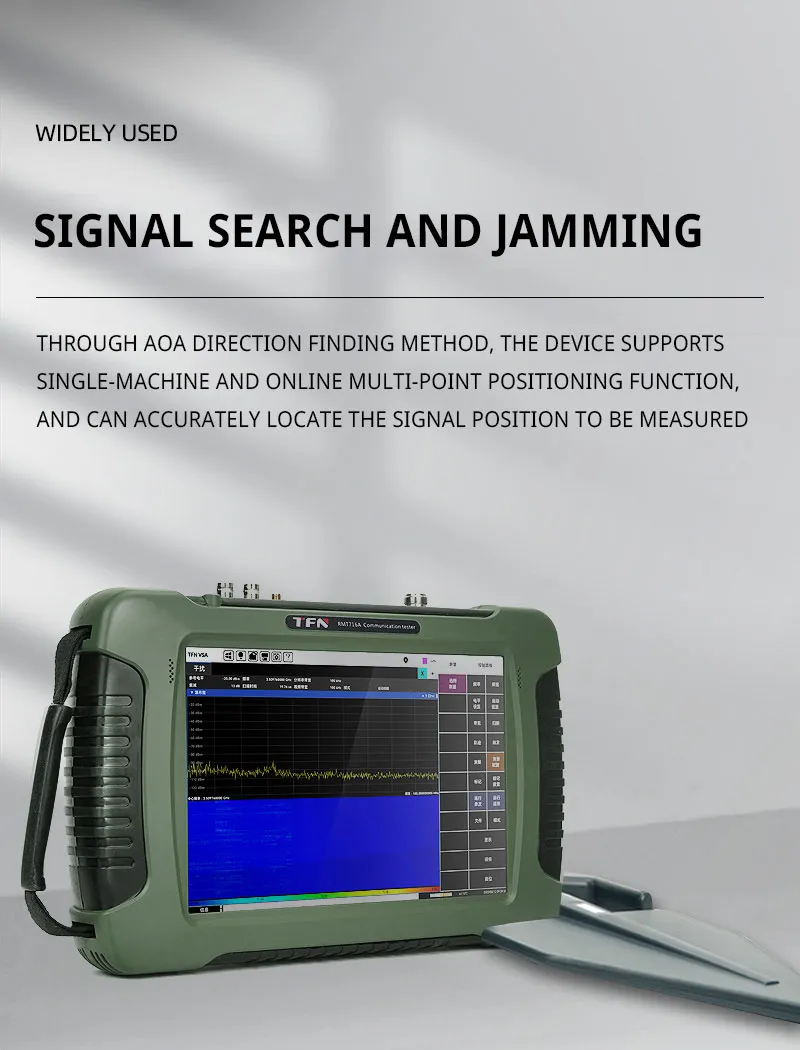

10. Support AOA drama mode, support stand-alone, online multi-point positioning function;
11. Support remote control;
12. Support the relevant interference test system, and cooperate with PAD to complete the automatic positioning function of the drive test;

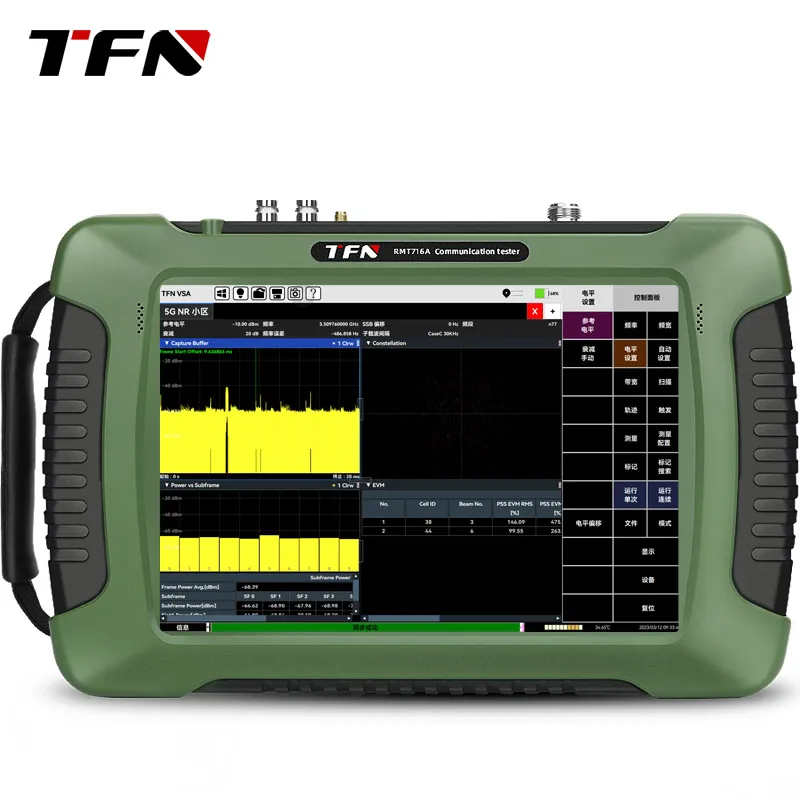

13. 10.5-inch capacitive touch screen with various operating modes such as daylight mode and dark mode.
14. Small size, light weight (≤2. 3kg); flexible power supply (equipped with portable power supply equipment, working time ≥6 hours); convenient to carry in various ways such as hand-held, motorized, and vehicle-mounted.
15. Language: Chinese/English
