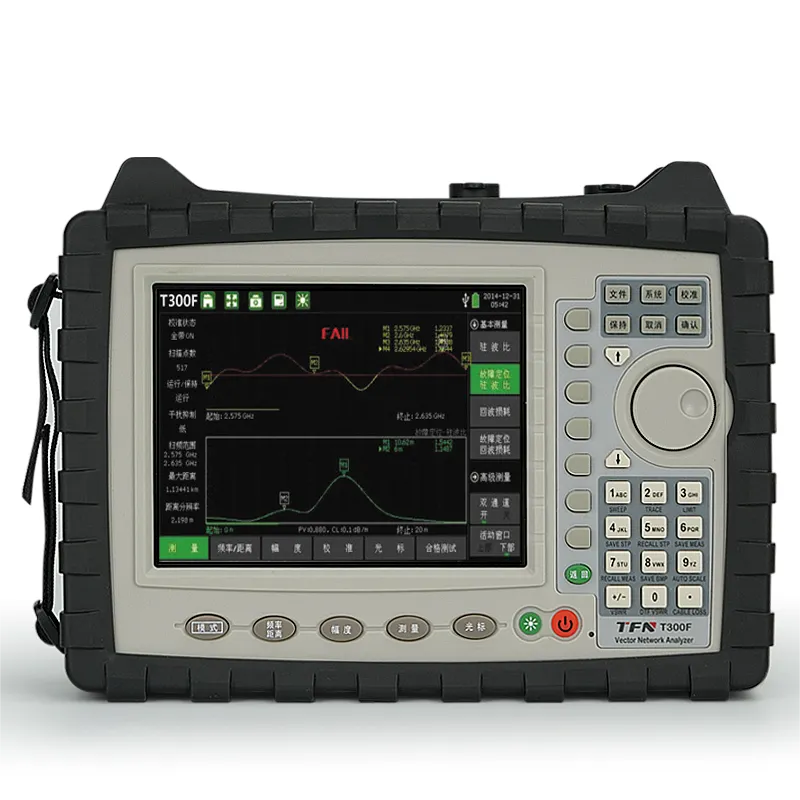

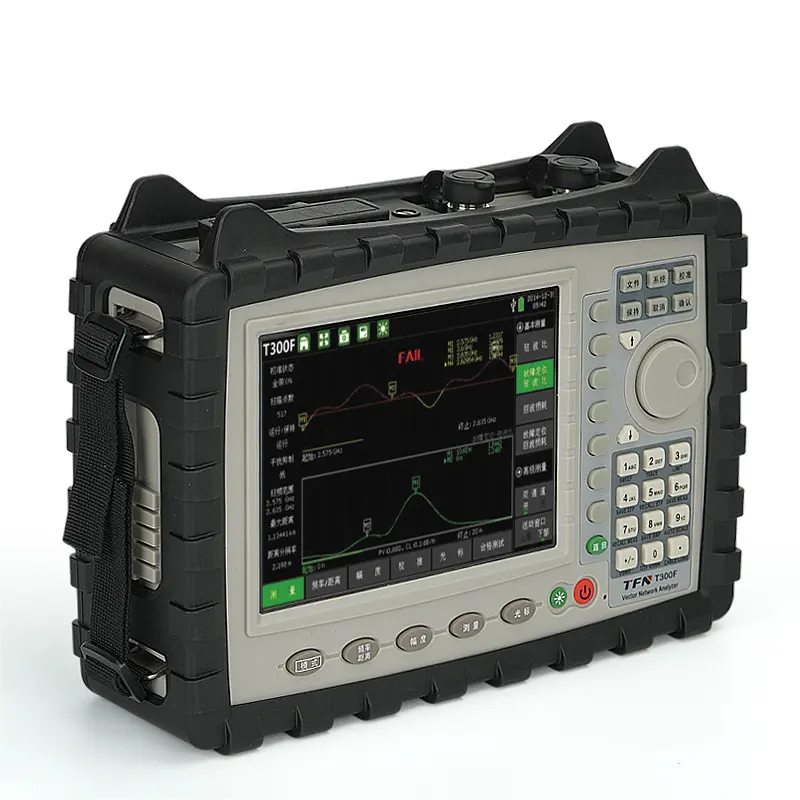

T300F Antenna Analyzer
A portable vector network analyzer for on-site maintenance of broadcast television, radio stations, and base station antenna and feeder systems .
Highlights
- One-click measurements of VSWR, return loss, cable loss, impedance, and phase to evaluate antenna and feeder system performance.
- With advanced TDR (time domain reflectometry) technology, it accurately identifies short circuits, open circuits, and impedance changes in the antenna feeder, improving troubleshooting efficiency.
- With preset thresholds, results are displayed in green/red “Pass/Fail” colors, enabling fast, accurate line assessment even without technical experience.
- Supports transmission measurement to meet more complex system testing requirements.
- Rugged and portable, with over 6 hours of battery life, it is built to handle harsh outdoor environments—from broadcast towers to base station rooftops.
Specifications
| Frequency range | 300 kHz ~ 1600 MHz (optionally extended to 3 GHz) |
| Frequency accuracy | ±2 ppm (0~50°C) |
| Output level | 0 dBm |
| Scan points | 101, 201, 401, 801, 1601 |
| Dynamic Range | 80 dB |
| Measurement trajectory | 4 |
| Impedance | 50 Ω |
| Battery life | Over 6 hours |
| Weight | 2.2 kg |
Application Scenarios
- Daily maintenance and troubleshooting of antenna and feeder systems for medium wave and FM broadcast transmitters .
- Installation and commissioning of radio and television transmission systems .
- mobile communication base station antenna feeder lines.
- Fault location of antenna feeder paths in wireless network optimization
