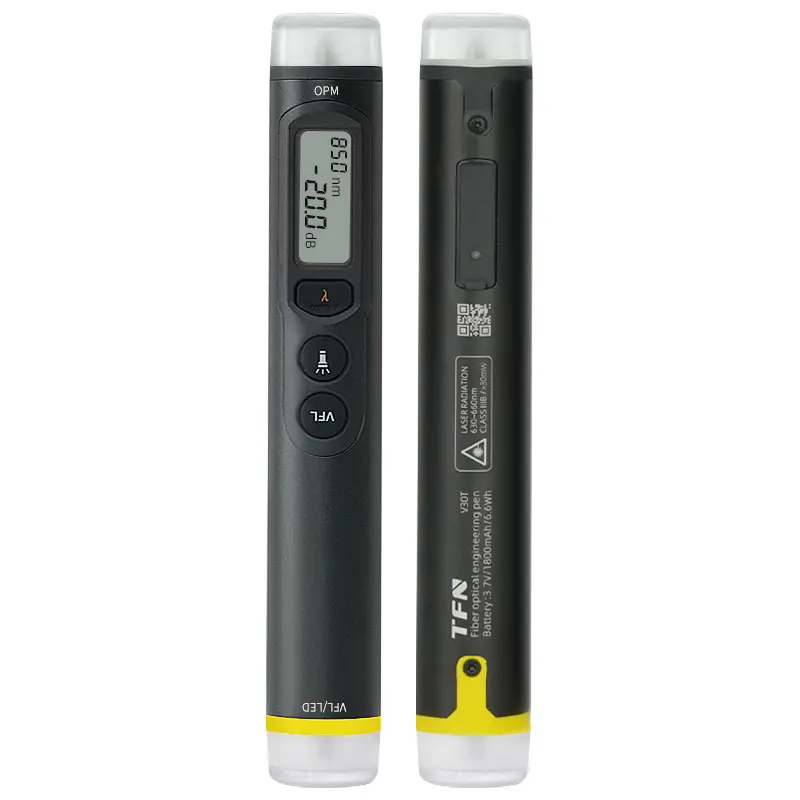

Three-In-One Fiber Optic Tester

Combining a VFL, OPM, and LED light into one unit, it is efficient and portable for fiber optic network installation, maintenance, and troubleshooting.

Highlights

Optical power meter, visual fault locator, and LED lighting all-in-one. One unit replaces multiple devices.
2600mAh lithium battery for extended runtime. Type-C port, reversible plugging for convenient charging
High-brightness LED lights for easy construction in dark environments
Rugged and portable, ready to use anytime
Withstands 1-meter drops, suitable for diverse construction environments

C series display range: -50 to +26 dBm
T Series display range: -70 to +6 dBm

Request a Quote

Specifications

OPM
Response Wavelength	700nm-1700nm
Calibration Wavelengths	850/980/1270/1300/1310/1490/1550/1577/1625/1650nm
Detector Type	InGaAs
Display Accuracy	0.01 dBm
Optical Interface	2.5mm Universal Connector
VFL
Output Power	10mW / 20mW / 30mW (selectable)
Wavelength:	650±20nm
Operation Mode	Steady-on / 2Hz Flashing
General Specifications
Battery Life	2600mAh Lithium-ion Battery. Work for 6 hours (Combined Mode) or 260 hours (Power Meter Mode Only)
Dimensions	25mm×170mm, 125g

Use Cases: Fiber-to-the-Home (FTTH) installation and maintenance

Data center operations and maintenance

Field technicians for telecommunications projects

Network troubleshooting teams

Laboratories and educational institutions

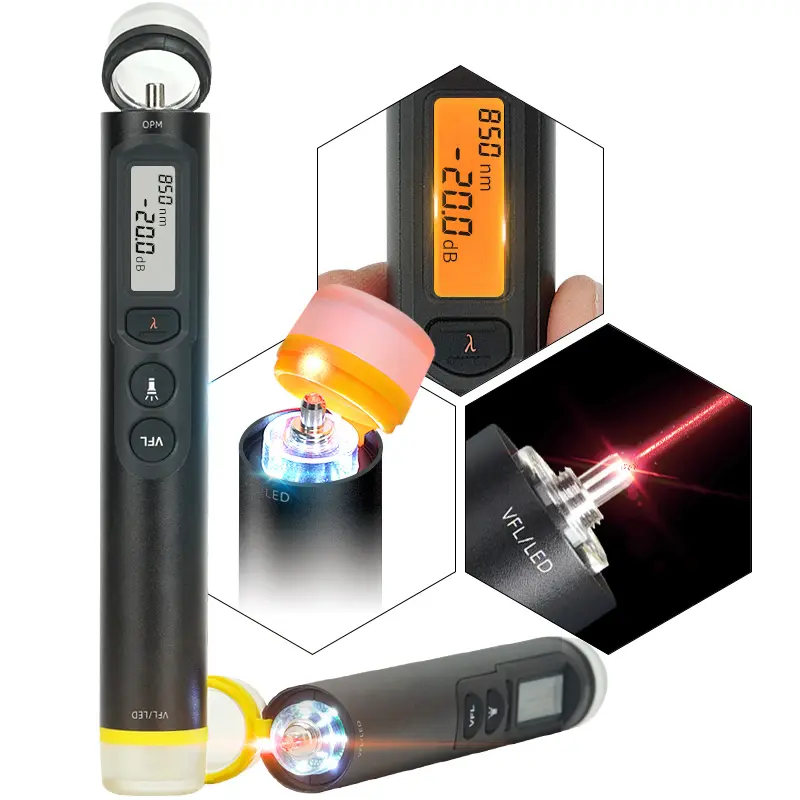

Optical Power Meter: Precisely measures fiber optic signal strength with one-touch switching between ten wavelengths

Visual Fault Locator: Powerful red light output with a maximum range of 30 kilometers for rapid fiber fault detection

LED White Light: High-brightness illumination for effortless cable inspection in dark environments, ensuring uninterrupted construction
