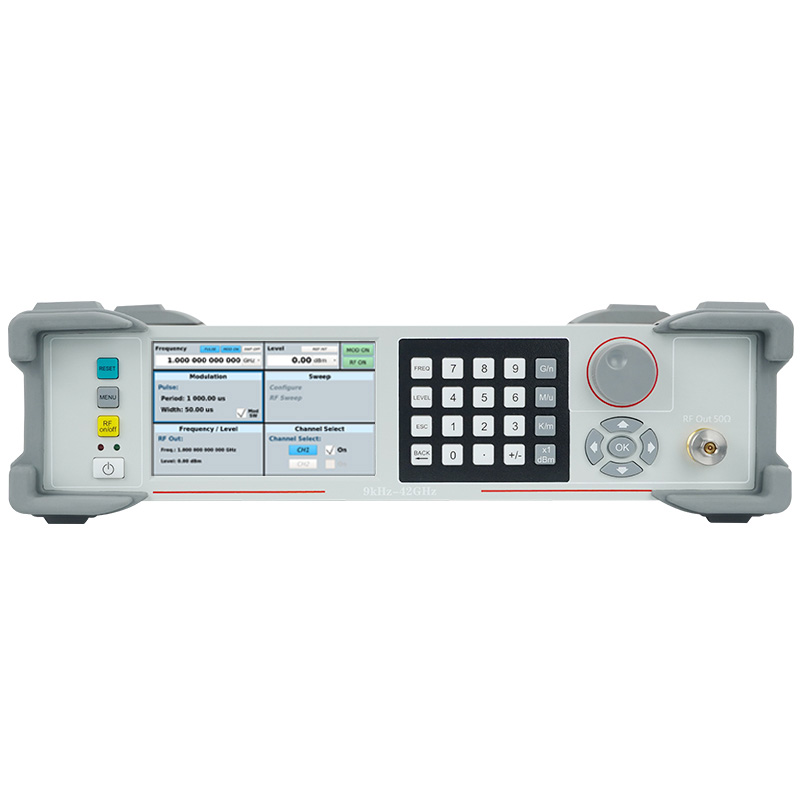

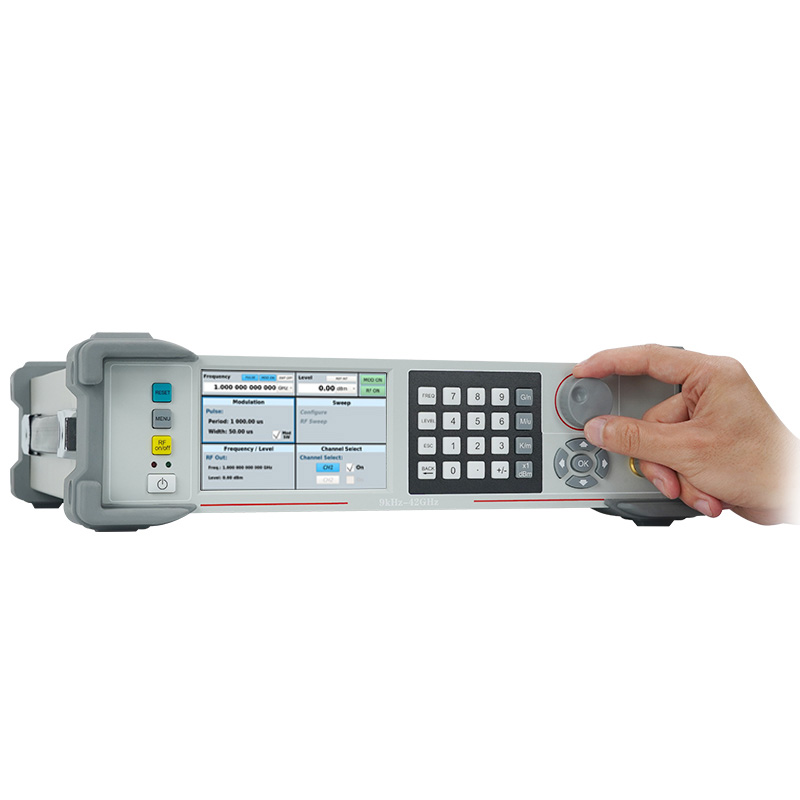

tG40A Signal Generator
Microwave Signal Source, a High-Performance, Compact Test Tool
Highlights
- 9 kHz ~ 42 GHz frequency range supports a variety of high-frequency applications. 0.001Hz Ultra-high frequency resolution, meeting high-persion demands
- Large power dynamic range, suitable for small signal reception and high power stimulus testing
- High signal purity: low phase noise and high spurious suppression ensure that the test data is true and reliable
- Fast response: High-speed frequency switching as fast as 300μs and minimum pulse width 100ns, on-off ratio ≥ 65dB improve test throughput.
- Standard communication and control : Supports SCPI commands and can be easily embedded into automated test systems.
- Compact size saves working space.
- High stability time base: Internal reference aging rate is ±0.3ppm/year, calibration accuracy ±0.1ppm, ensuring long-term test consistency. Supports 10MHz external reference, easily integrated into synchronous test system.
Specifications
| Model / Items | TG40A |
| Frequency Range | 9kHz ~ 42GHz |
| Frequency Resolution | 0.001Hz |
| Output Power Range | -120dBm ~ +17dBm |
| Power Resolution | 0.1 dB |
| Phase Noise | -112dBc/Hz@10kHz（10GHz) |
| Harmonic Suppression | ≤ -50dBc (10GHz) |
| Spurious Suppression | ≤ -80dBc (10GHz) |
| Minimum Pulse Width | 100 ns |
| Scanning Mode | Step sweep |
| Dimnsions | 360mm × 360mm × 89mm |
| Weight | 10 kg |
Application Scenarios
Millimeter wave communication module R&D and acceptance testing
Phased Array Radar (AESA) and Electronic Countermeasures System
Satellite payload and ground receiving equipment debugging
High frequency/ultra-high frequency research in universities and research institutes
Automotive radar and terahertz front-end device testing
