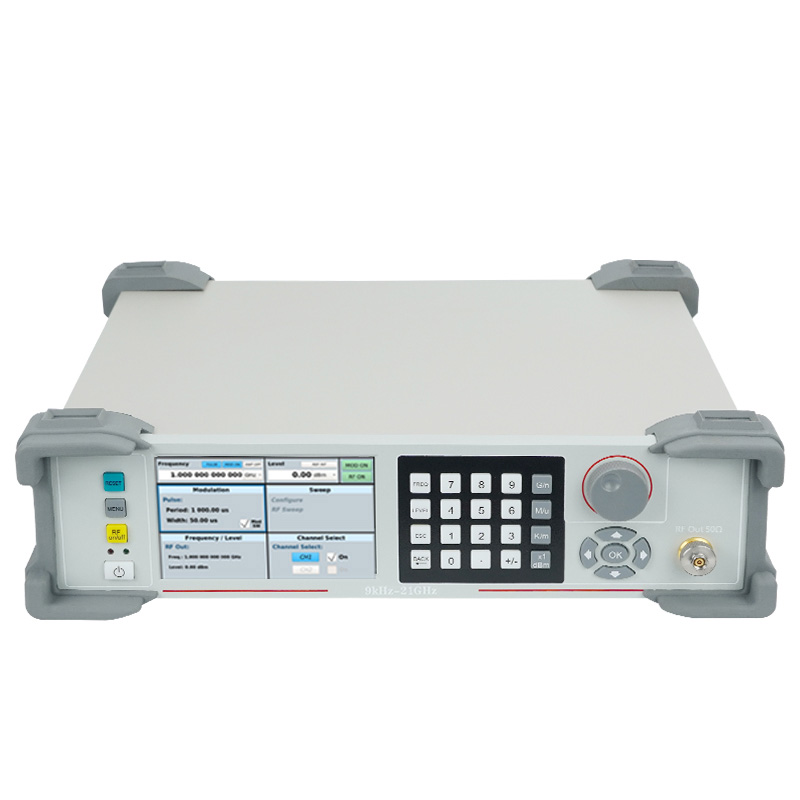

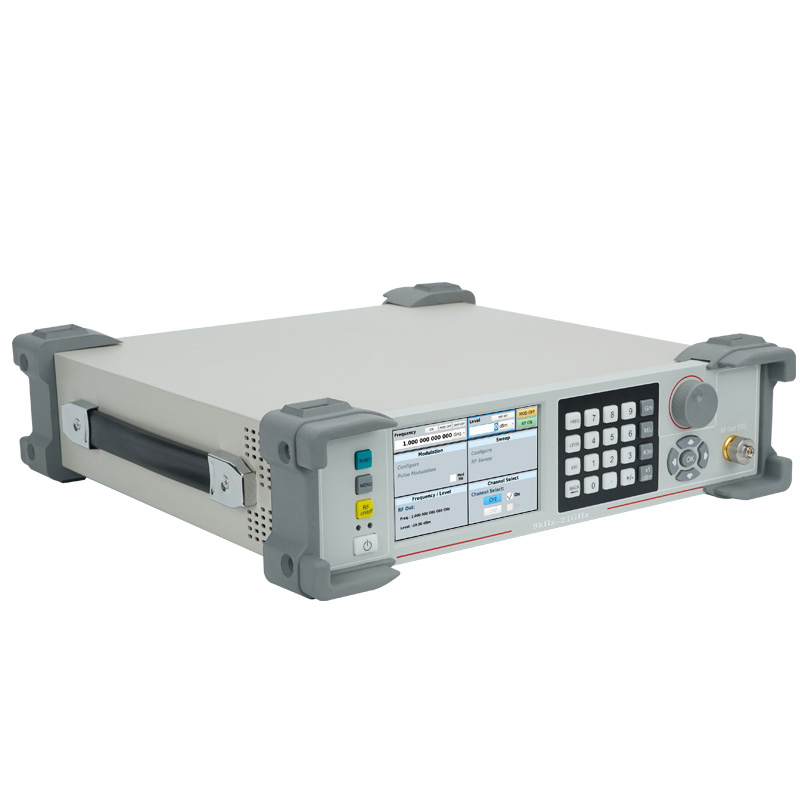

tG20A Signal Generator

Microwave Signal Source, a High-Performance, Compact Test Tool

Highlights

9kHz ~ 21GHz frequency range supports a variety of high-frequency applications. 0.001Hz Ultra-high frequency resolution, meeting high-persion demands
Large power dynamic range, suitable for small signal reception and high power stimulus testing
High signal purity: low phase noise and high spurious suppression ensure that the test data is true and reliable
Fast response: High-speed frequency switching as fast as 300μs and pulse modulation improve test throughput. Internal and external pulse source supports external input and internal generation, and the trigger delay is adjustable.
Compact size saves working space.
Standard communication and control : Supports SCPI commands and can be easily embedded into automated test systems.

Specifications

Model / Items	TG20A
Frequency Range	9kHz ~ 21GHz
Frequency Resolution	0.001Hz
Output Power Range	-120dBm ~ +17dBm
Power Resolution	0.1 dB
Phase Noise	-112dBc/Hz@10kHz（10GHz)
Harmonic Suppression	≤ -50dBc (10GHz)
Spurious Suppression	≤ -80dBc (10GHz)
Minimum Pulse Width	100 ns
Scanning Mode	Step sweep
Dimnsions	360mm × 360mm × 89mm
Weight	10 kg

Application Scenarios

Radar system development and receiver testing

Quantum communication system signal simulation

5G/millimeter wave communication module verification

Aerospace avionics equipment debugging

High-frequency experiments in universities and research institutes

FAQs

What logistics options do you offer?

We provide optimized logistics solutions based on the urgency of your order, size, weight, and your location:

International Express: Suitable for samples, urgent orders, and small shipments under 22 lb. We partner with top logistics providers such as DHL, FedEx, and UPS, offering door-to-door tracking.

Air Freight: Suitable for medium to large orders or time-sensitive complete equipment, offering an effective balance between cost and speed.

Ocean Freight: Suitable for large-volume orders and the most economical shipping method. We offer FOB, C&F, and CIF.

What’s the lead time?

For our standard products, if there are in stock and ready for shipment, the lead time is about 7-10 days. For our optional products, the lead time is about 25-30 days.

Do you provide online training?

Yes. We understand the importance of proper operation of professional instruments.

Basic Training: We provide a detailed English operating manual.

Online Remote Training: We can provide real-time online operation training and Q&A for you and your team via video conferencing software (such as Zoom and Teams).

On-site Training: Based on project requirements, we can arrange for our engineers to conduct in-depth on-site training (travel expenses are subject to negotiation).

Training content can be customized to your specific application scenario.
