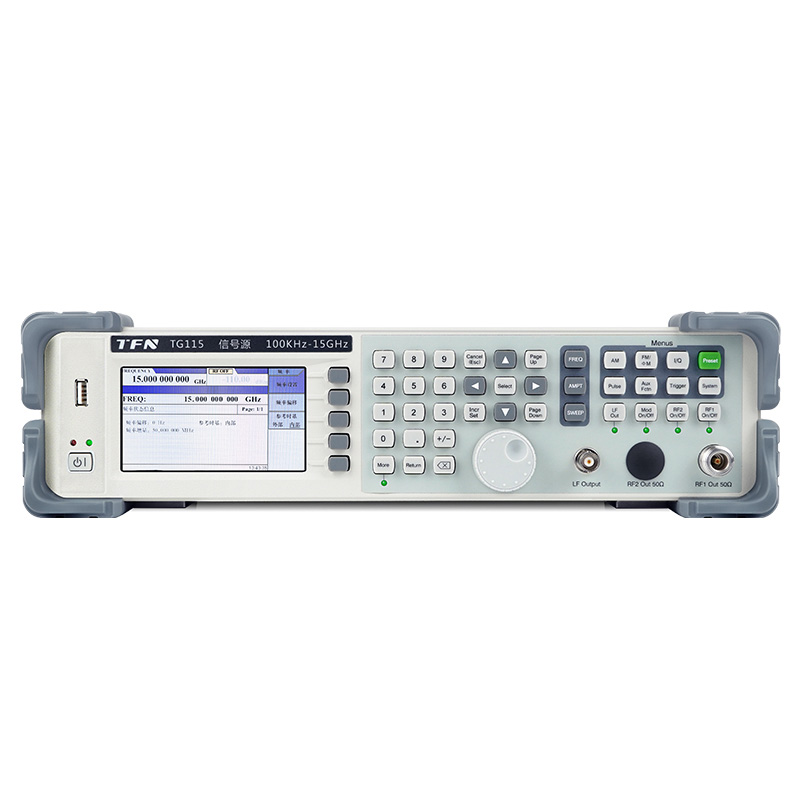

tG115 Signal Generator

Microwave signal generator with extensive modulation, sweep, and pulse modulation capabilities.

Highlights

100kHz ~ 15GHz frequency range, covering high demands such as millimeter wave front-end, 5G, and satellite.
High frequency accuracy : time base aging rate ±1ppm/year, temperature stability ±0.1ppm.
Low phase noise ensures accurate test data
Wide dynamic range: up to 130 dB after optional attenuator, suitable for large power span testing.
Comprehensive modulation function, supporting internal and external sources. Analog modulation : AM/FM/ΦM, modulation depth, frequency deviation and phase deviation are adjustable. Pulse modulation : on-off ratio ≥70dB, supports external trigger and sequence input. Built-in LF source : sine, square, triangle, with frequencies up to 500kHz.
Multiple scanning modes for more efficient testing. Scan mode : step/list scan, supports up to 65535 scan points. Trigger mode : automatic , external, manual, adaptable to complex test processes.
Standard rack design, easy integration. 2U height , with standard rack mounting kit, allows for easy integration into test systems.

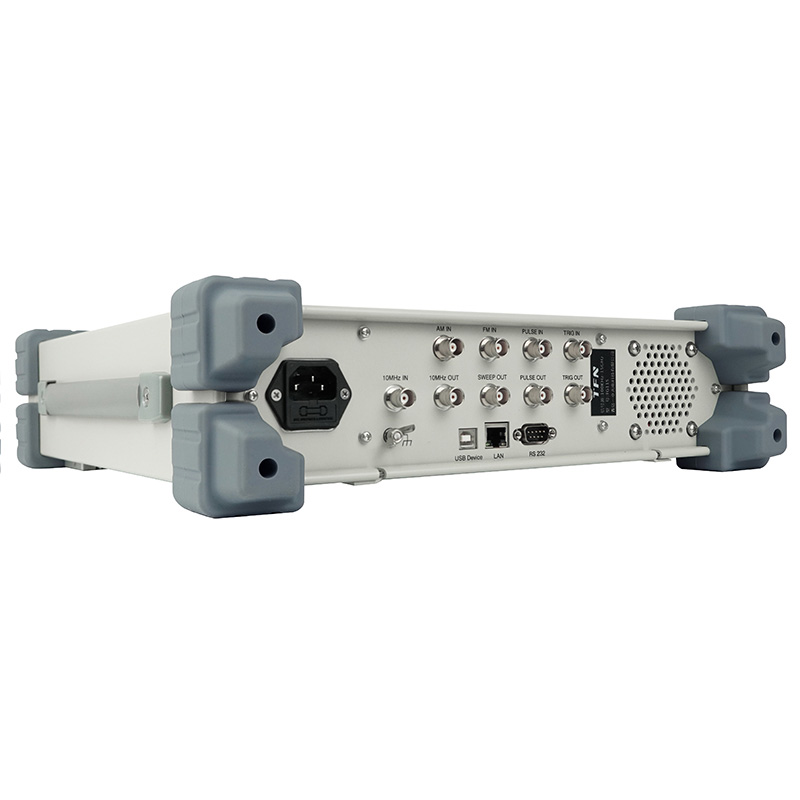

Rich interfaces : LAN/USB/RS-232, support SCPI remote control.

Specifications

Model / Items	TG115
Frequency Range	100kHz ~ 15GHz
Phase Noise	< -115dBc/Hz@10kHz
Output Power Range	-20dBm ~ +10dBm (expandable to -120dBm)
Harmonic Suppression	≤ -30dBc
Modulation Method	AM/FM/ΦM/Pulse
Scan Points	Step: 2~65535, List: 2~16383
Communication Interface	LAN, USB, RS-232
Dimensions	430mm × 380mm × 100mm (2U)
Weight	≤ 5kg

Ordering Information
Products	Order Number
Host (microwave signal generator)	TG115
Programmable attenuator option (supports -120dBm)	TG115-PCA
Rack Mount Kit	TG115-RMK

Application Scenarios

5G/6G communication module R&D and verification

Radar signal simulation and receiver testing

Satellite communication system debugging

Microwave and radio frequency experimental teaching in colleges and universities

Military electronics and aerospace equipment testing

The TFN TG115 is a multifunctional, cost-effective microwave signal generator with a frequency range up to 15 GHz. It offers comprehensive modulation, sweep, and pulse modulation functions, making it ideal for applications such as communications R&D, education and training, military radar, satellite communications, and component testing.

Designed with a standard 2U chassis, the TG115 supports remote control and secondary development, making it an excellent choice for laboratories, production lines, and field testing.

FAQs

What is the product warranty period?

We are confident in the quality and reliability of our products.

We offer a standard 12-month warranty on all instruments, starting from the date of arrival at the port of destination.

Extended warranties are also available; please contact our sales team for details.

What’s the lead time?

For our standard products, if there are in stock and ready for shipment, the lead time is about 7-10 days. For our optional products, the lead time is about 25-30 days.

Do you provide product training?

Yes. We understand the importance of proper operation of professional instruments.

Basic Training: We provide a detailed English operating manual.

Online Remote Training: We can provide real-time online operation training and Q&A for you and your team via video conferencing software (such as Zoom and Teams).

On-site Training: Based on project requirements, we can arrange for our engineers to conduct in-depth on-site training (travel expenses are subject to negotiation).

Training content can be customized to your specific application scenario.
