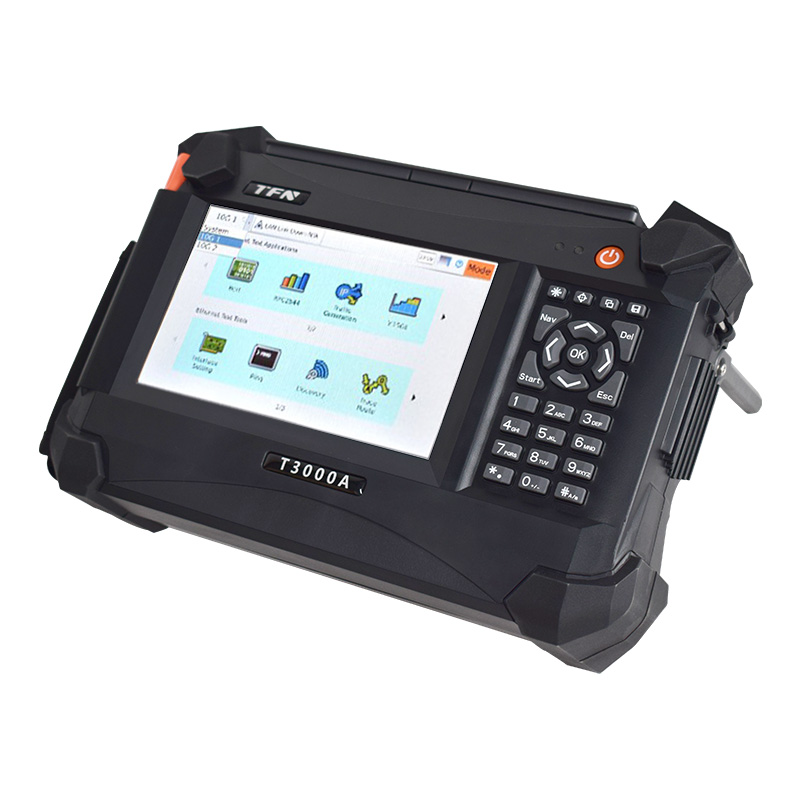

T3000A Ethernet Tester
A Handheld 10 gigabit tester, supporting 10M to 10G full-rate testing, facilitating high-speed network deployment and maintenance
Highlights
- Full-rate coverage: One device supports full-range rate testing from 10M to 10G, avoiding duplicate investment due to network upgrades.
- Supports 16 concurrent data streams, simulating real-world business pressures and accurately evaluating network performance.
- Built-in standard test items such as RFC2544, Y.1564, BERT, MPLS, and IPv6, with one-click automated execution to improve testing efficiency.
- Supports L1 – L4 loopback detection and online penetration monitoring, enabling fault diagnosis without interrupting services.
- 7-inch high-resolution touch screen combined with PC remote control function, suitable for use in various environments such as laboratories and on-site.
- The built-in large-capacity lithium battery provides 4 hours of continuous operation and comes with a carrying case, making it suitable for field operations.

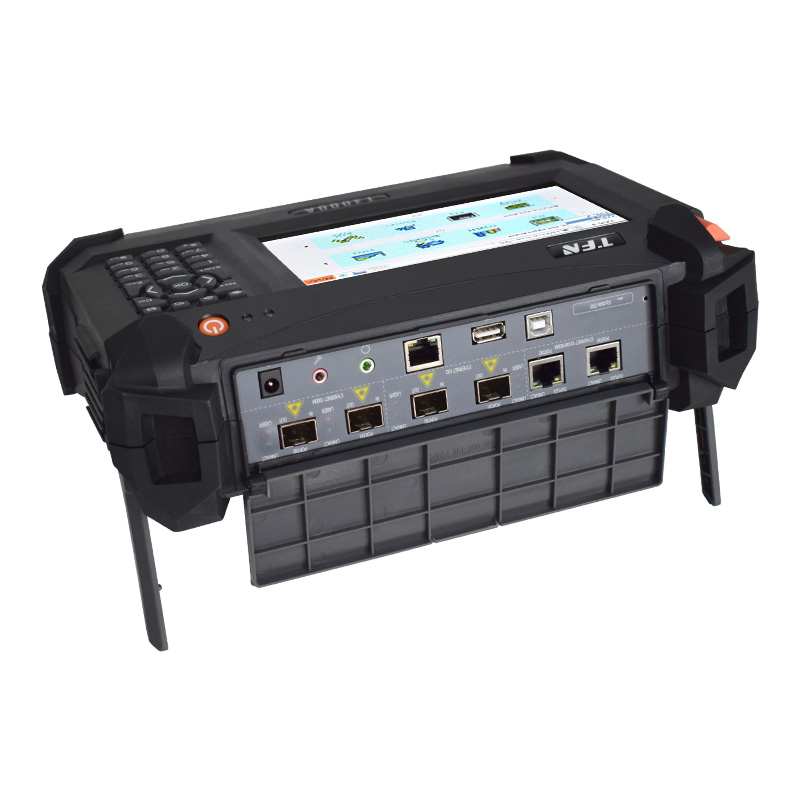

The T3000A supports testing of 10M/100M/1000M electrical ports, 1.25G optical ports, and dual 10G SFP+ optical ports. Integrating traffic generation, protocol analysis, performance testing, and fault diagnosis, it offers comprehensive testing capabilities for RFC2544, Y.1564, BERT, MPLS, and VLAN Q – in – Q. Suitable for 10G network commissioning and complex fault location.
Specifications
| Optical interfaces | Two GigE interfaces | ||
| 1000Base-SX | 1000Base-LX | 1000Base-ZX | |
| Wavelength (nm) | 850 | 1310 | 1550 |
| Laser type/connector/ transceiver type | VCSEL/LC/SFP | FP/LC/SFP | DFB/LC/SFP |
| Electrical interface | Two 10/100BaseT half/full-duplex and 1000BaseT full-duplex ports, with straight-through or crossover cable options | ||
| 10BaseT | 100BaseT | 1000BaseT | |
| Connectors | RJ-45 | RJ-45 | RJ-45 |
| Test items | |||
| Y.1564 | Test network configuration and services in accordance with ITU-T Y.1564. Use remote loopback or dual tester mode for bidirectional results. | ||
| RFC2544 | Measure throughput, back-to-back transmission, frame loss, and latency as specified in RFC 2544. Frame size: RFC-defined, user-configurable from 1 to 7. | ||
| BERT error test | Supports Layer 1 through Layer 4 with or without VLAN Q-in-Q. | ||
| Through mode | Segments traffic between the service provider network and customer premises equipment. | ||
| Service disruption time (SDT) | Includes statistics, including minimum outage time, maximum outage time, last median time, average outage time, total outage time, and pass/fail thresholds. | ||
| Multi-stream generation | Enables the ability to transmit and monitor up to 16 data streams on Ethernet and IP networks. | ||
| Traffic generation and monitoring | Capable of generating and monitoring Ethernet and IP traffic flows, and capable of shaping traffic based on the following statistics: throughput, frame loss, frame sequencing, packet jitter, latency, frame size, traffic type, and flow monitoring. | ||
| VLAN stacking | Capable of generating traffic flows with up to two VLAN layers (including IEEE802.1ad Q-in-Q tagged VLANs) at any stacked VLAN layer, using either VLAN ID or VLAN priority. | ||
| IPv6 testing | Including BERT, RFC2544, information flow generation and monitoring, background information flow, Smart loopback, Ping and traceroute | ||
| General indicators | |||
| Interface | USB 2.0 port; RJ-45 LAN | ||
| Storage | 8 GB | ||
| Data interface | RJ-45/ USB | ||
| Display | 7-in color LCD touchscreen, 960×480 | ||
| Battery life | Continuous operation for more than 4 hours | ||
| Size | 282×186×75mm, 2.9kg | ||
Main Test Functions
Performance testing: RFC2544 (throughput, latency, packet loss, back-to-back), Y.1564 service configuration and quality testing
Error code test: supports L1L4 BERT test, including PRBS, CJPAT, CRPAT and other code types, optional fault injection
Advanced protocol support: VLAN Q – in – Q, MPLS (3-level nesting), IPv6, OAM (option)
Service simulation and monitoring: multi-service flow generation, traffic shaping, and service disruption time (SDT) measurement
Intelligent diagnostic tools: network topology discovery, remote loopback, Ping, Trace – route, packet capture and analysis
Penetration mode: supports 10M / 10G rate online monitoring and fault injection without affecting existing services
Application Scenarios
10G Ethernet access and aggregation layer commissioning acceptance
Data center interconnection and cloud service performance verification
Carrier IP/MPLS network service quality monitoring
Enterprise core network upgrade and troubleshooting
R&D and verification testing for network equipment manufacturers
