T200K Gigabit Ethernet Tester

A multifunctional handheld device for installation and maintenance of 10M/100M/1000M copper and fiber networks.

Highlights

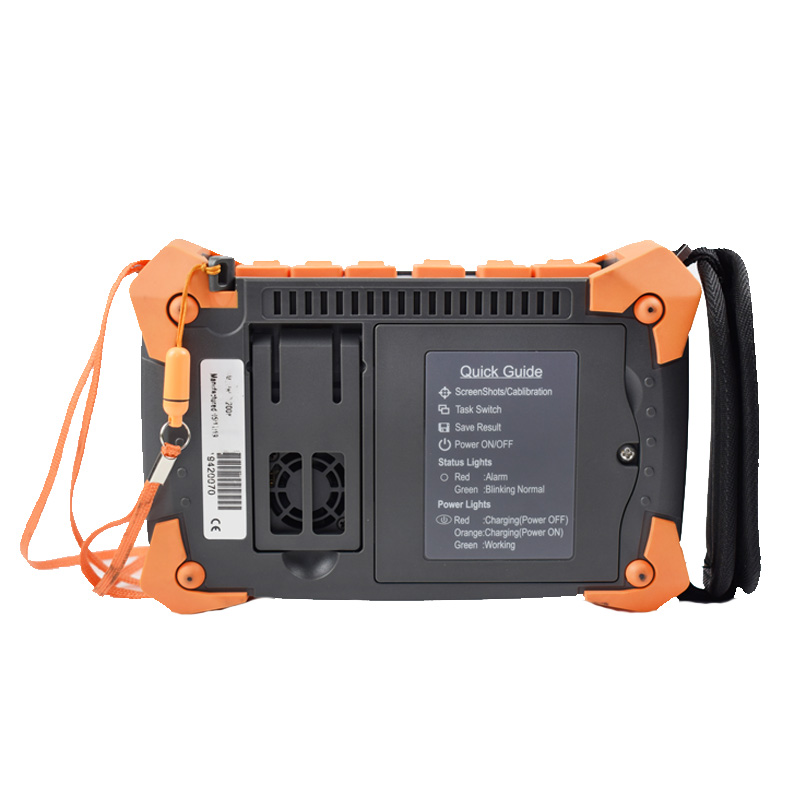

Handheld design with a wrist strap and kickstand allows for easy one handed operation in the field, increasing maintenance efficiency and reducing tool clutter
Perform automated RFC 2544 (Throughput, Latency, Frame Loss) and full Y.1564 service configuration tests with ease, ensuring compliance with industry standards quickly
Multi-service testing: Generate and monitor up to 16 concurrent data flows to accurately assess network performance under complex, realworld conditions

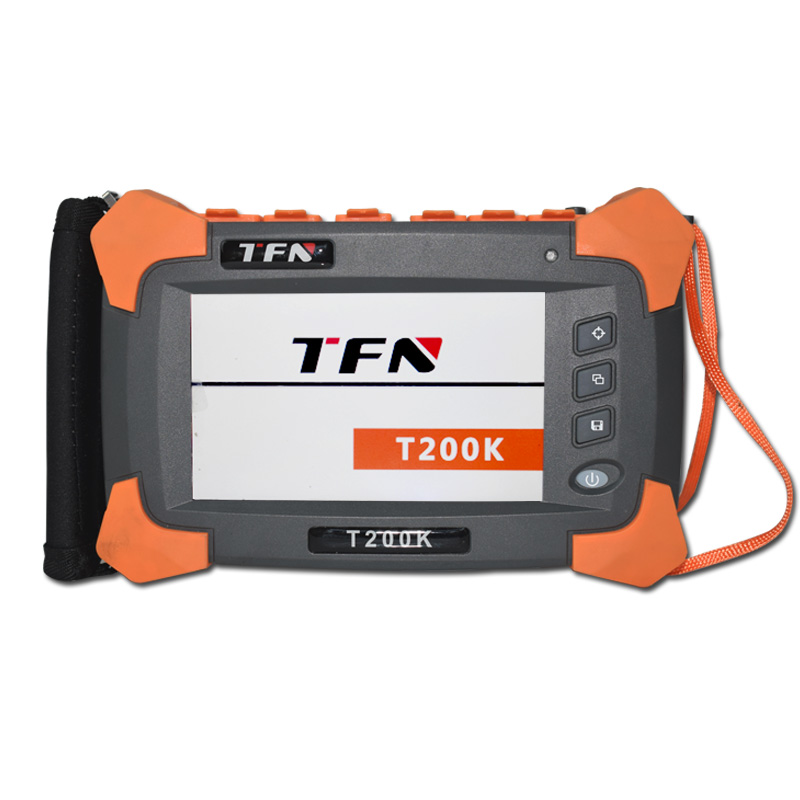

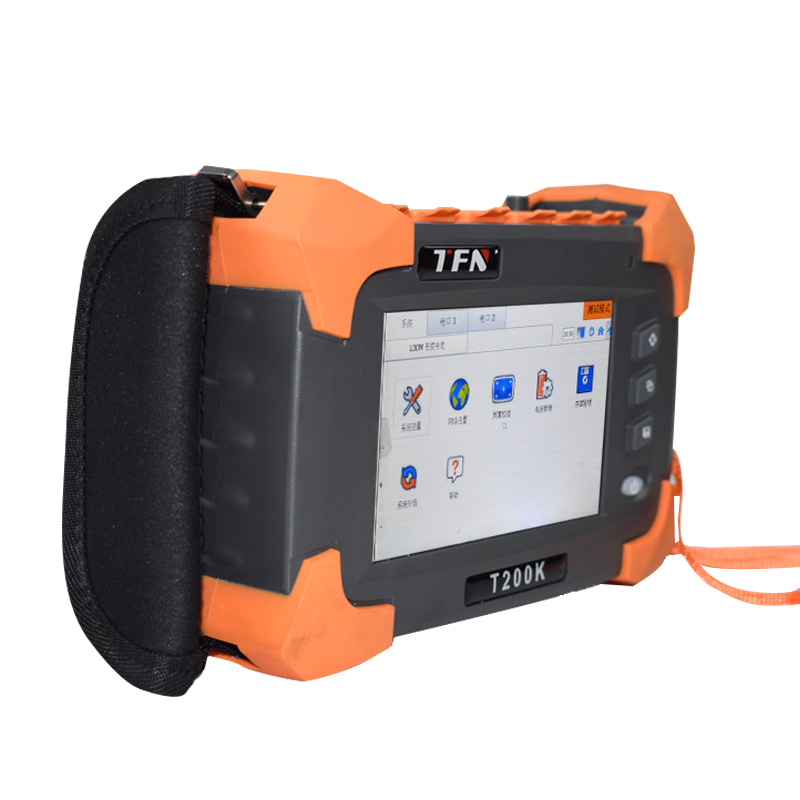

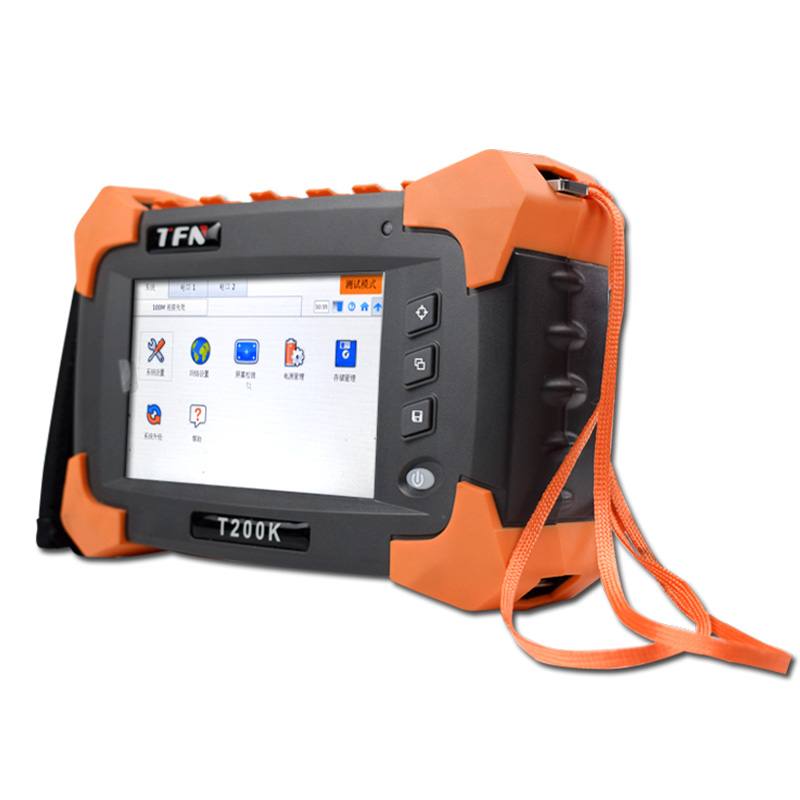

A 5-in color LCD touchscreen provides clear, graphical and numerical results, simplifying data interpretation for users of all skill levels
Proactive physical layer diagnostics: integrated optical power measurement, SFP DDMI monitoring, and Virtual Cable Testing (VCT) help identify potential fiber and copper cable issues before they cause network downtime
Data management: extensive internal memory and USB data export enable detailed postanalysis, reporting, and archiving for audits and performance tracking

Specifications

Optical interfaces	Two GigE interfaces
	1000Base-SX	1000Base-LX	1000Base-ZX
Wavelength (nm)	850	1310	1550
Laser type/connector/ transceiver type	VCSEL/LC/SFP	FP/LC/SFP	DFB/LC/SFP
Electrical interface	Two 10/100BaseT half/full-duplex and 1000BaseT full-duplex ports, with straight-through or crossover cable options
	10BaseT	100BaseT	1000BaseT
Connectors	RJ-45	RJ-45	RJ-45
Test items
Y.1564	Test network configuration and services in accordance with ITU-T Y.1564. Use remote loopback or dual tester mode for bidirectional results.
RFC2544	Measure throughput, back-to-back transmission, frame loss, and latency as specified in RFC 2544. Frame size: RFC-defined, user-configurable from 1 to 7.
Ber error test	Supports Layer 1 through Layer 4 with or without VLAN Q-in-Q.
Through mode	Segments traffic between the service provider network and customer premises equipment.
Service disruption time (SDT)	Includes statistics, including minimum outage time, maximum outage time, last median time, average outage time, total outage time, and pass/fail thresholds.
Multi-stream generation	Enables the ability to transmit and monitor up to 16 data streams on Ethernet and IP networks.
Traffic generation and monitoring	Capable of generating and monitoring Ethernet and IP traffic flows, and capable of shaping traffic based on the following statistics: throughput, frame loss, frame sequencing, packet jitter, latency, frame size, traffic type, and flow monitoring.
VLAN stacking	Capable of generating traffic flows with up to two VLAN layers (including IEEE802.1ad Q-in-Q tagged VLANs) at any stacked VLAN layer, using either VLAN ID or VLAN priority.
General indicators

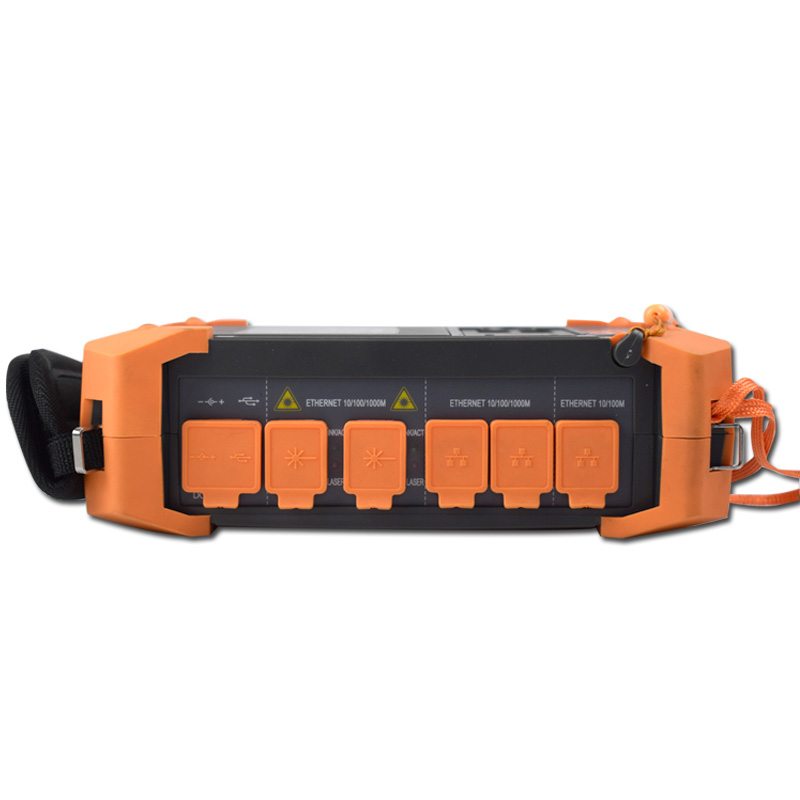

Test interface	Dual RJ45 ports: 10/100/1000BASE-T. Dual SFP ports: 1000BASE-SX/LX/ZX
Supported standards	IEEE 802.3, RFC3393, RFC2544, Y.1564
Data interface	RJ-45/ USB
Display	800×480 color LCD touchscreen
Battery life	Continuous operation for more than 4 hours
Size	190×130×65mm, 800g

Main Test Functions

Network Performance Testing: Throughput, Latency, Frame Loss, BacktoBack (RFC2544)
Service Quality Validation: Y.1564 Ethernet Service Activation & Performance Test
Advanced Troubleshooting: Ping, Trace Route, IP Scan, VLAN (including QinQ) Testing
Physical Layer Analysis: Optical Power, SFP Temperature/Voltage/Current, Virtual Cable Test (VCT) for opens/shorts/length
Traffic Analysis & Generation: Multistream generation & monitoring, traffic filtering statistics, Jitter measurement
Service Disruption Time (SDT) Measurement: Accurately records outage duration and frequency.
Additional Tools: Loopback, Packet Capture, and Port Identification.

Application Scenarios

Enterprise Network Deployment and Acceptance
Data Center Maintenance and Fault Finding
Telecom Operator Service Level Agreement (SLA) Verification
System Integrator Project Commissioning
Network Maintenance in Education, Healthcare, and Finance Sectors
