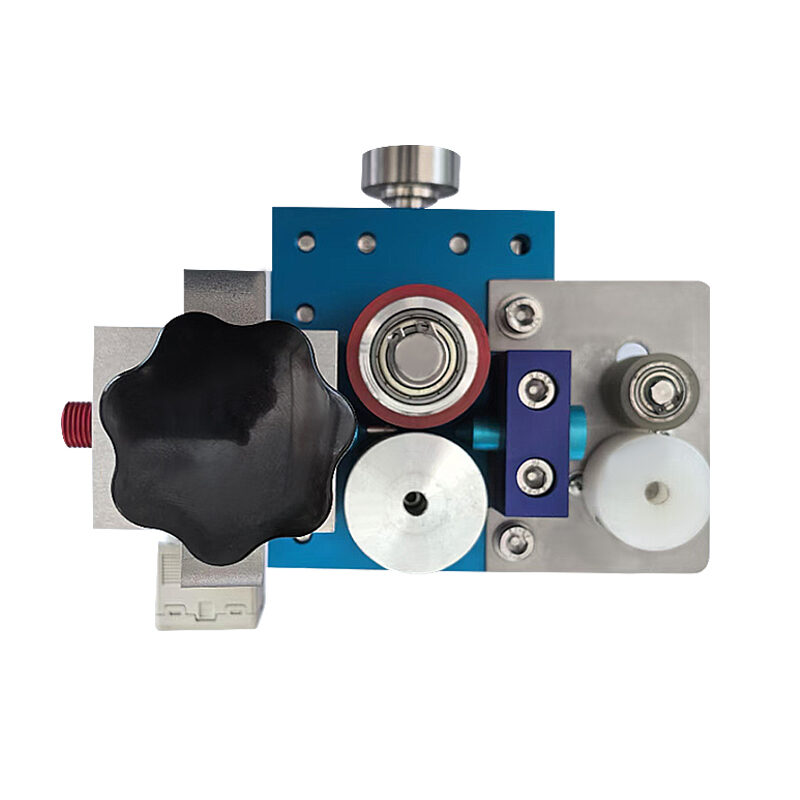

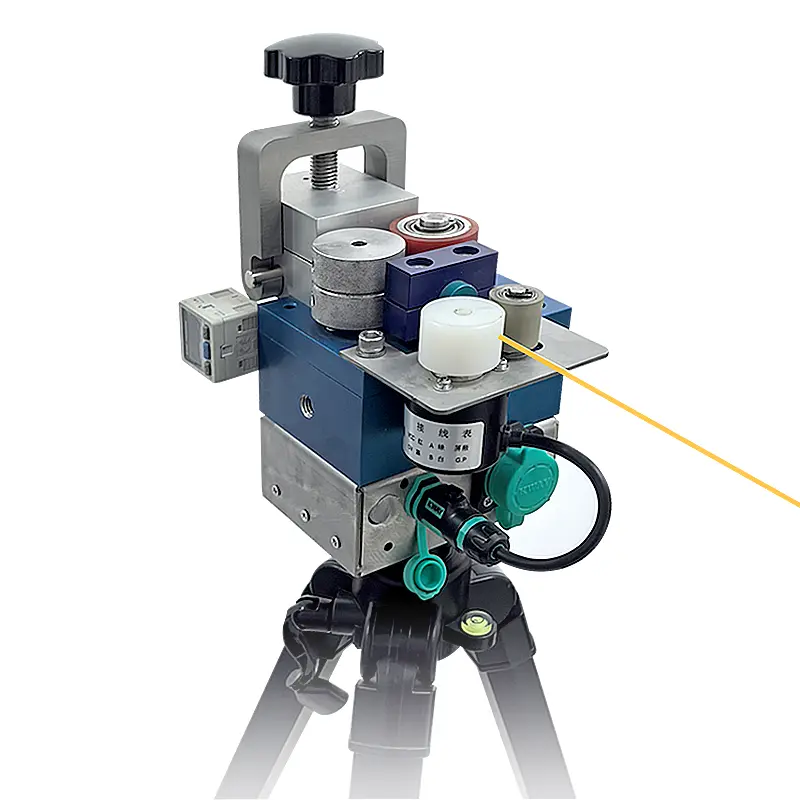

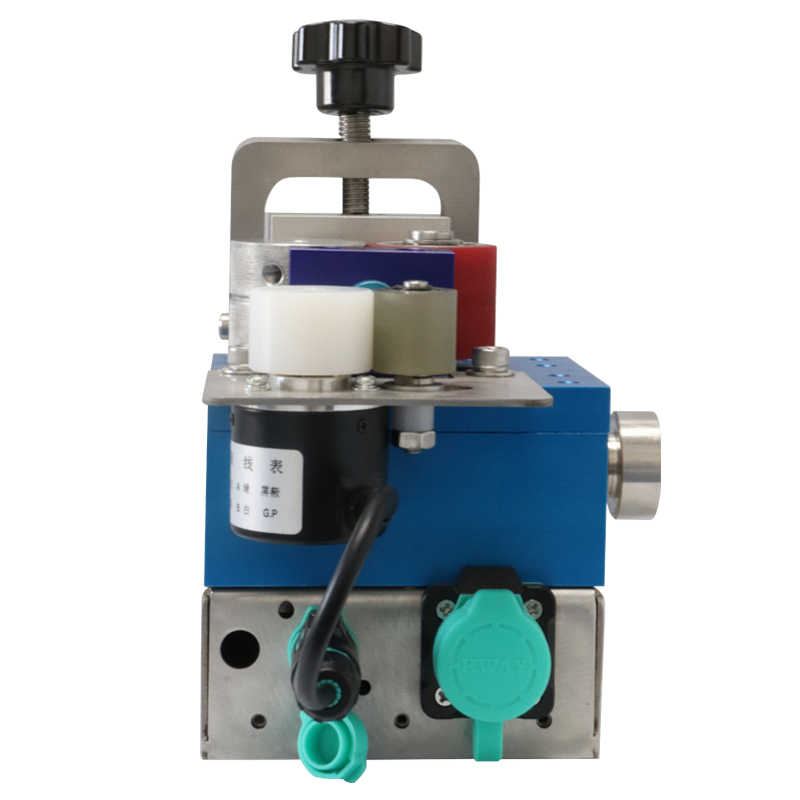

T200D Fiber Blower
A high-performance fiber blower for fiber optic network construction. It is suitable for laying EPFU micro cables and covered cables with an outer diameter of 1-3 mm.
Highlights
- Intelligent overload protection automatically adjusts thrust during installation, keeping the optical cable intact and reducing failure rates and maintenance costs.
- It supports propulsion speeds up to 80 m/min (recommended 40–60 m/min), allowing smoother fiber installation with reduced attenuation.
- Lightweight and portable design — the machine weighs only 7 kg and runs on a high-performance lithium battery.
- Capable of blowing 1–3 micro-tubes simultaneously, providing flexibility for different fiber-optic construction environments.
- Compared with traditional pulling methods, the air-blowing process reduces cable tension, minimizes signal loss, and extends the service life of fiber optic cables.
- Built with high-quality, durable components, the fiber blower is easy to operate and maintain, ensuring a long service life.
- Each unit undergoes rigorous testing before delivery and is supported by lifetime technical service for stable, long-term operation.
Specifications
| Model | T200D |
| Power Type | Pheumatic |
| Adaptive Cable Diameter | 1-3 mm |
| Adaptive Pipe Diameter | 5-12 mm |
| Push Speed | 80 m/min |
| Thrust | 100N |
| Main Engine Rated Pressure | 13 bar (oil pressure 4~8Mpa) |
| Host Weight | 7 kg |
| Dimmensions | 260*200*200 mm |
| Battery Capacity | 12VDC lithium battery, 5000 mAH |
| Working air pressure | 3 bar |
| Single air blowing length | 200-500 m |

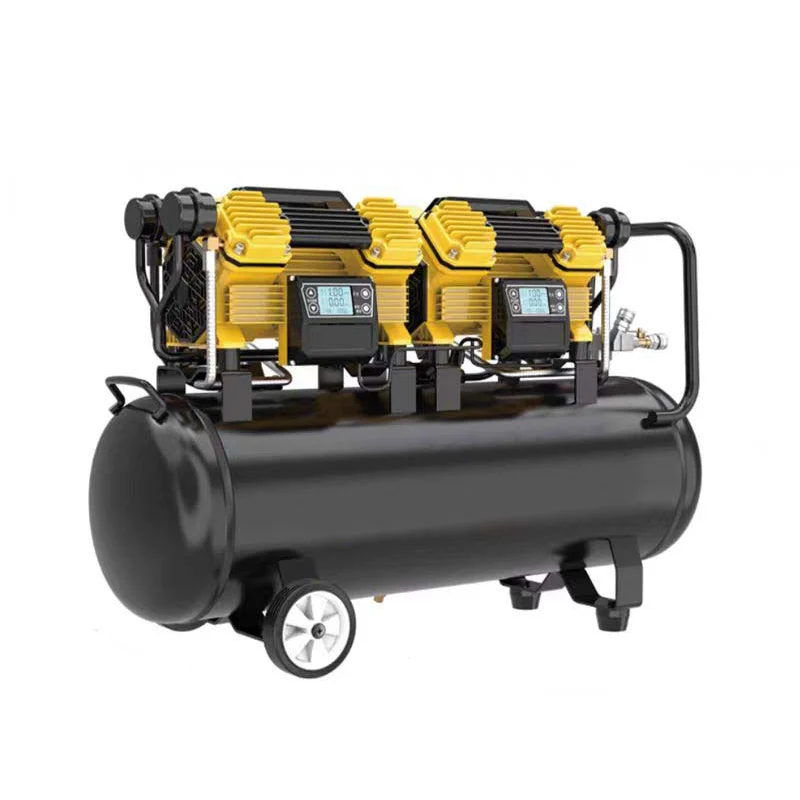

Technical indicators of matching air compressor (optional)
| Model | Electric oil-free variable frequency air compressor |
| Exhaust volume | 0.5~0.7 m³/min |
| Exhaust pressure | 8~12 bar |
| Power supply | 220V/AC |
| Noise | ≤75 dB |
| Machine weight | 50 kg |
Use Cases
Fiber to the home (FTTH) projects
Indoor optical cable laying and modification
Data center micro-cable laying
Urban pipe network and corridor micro-pipe construction
Communications maintenance and emergency repair
Real Experiences with TFN Fiber Blowers
“We’ve used several cable blowing machines before, but it stands out for its reliability and efficiency. It can handle multiple microtubes at once. The machine has significantly reduced our project timelines.”
John M.
“It easily blows heavy fiber cables over long distances without damaging the sheath or cores. The stepless speed control is intuitive. The three-year warranty gives us real peace of mind”
Ahmed R.
“Beyond the excellent performance of the machine, what impressed us most was TFN’s professional technical support and responsive service team. And we feel confident relying on this equipment for our large-scale projects.”
Sarah L.
FAQs
Do you only provide cable blowers?
TFN is a manufacturer of fiber blowing machines and their accessories. If you require spare parts, we can sell them separately. For air compressors, we offer the most suitable model, but you can also purchase or rent one locally.
What is the lead time?
We have all four models of cable blowers in stock. Please confirm it with our sales representative. We recommend air freight for the cable blower and hydraulic pump station (required only for the T700CY). If you need to add an air compressor, sea freight is preferred. Please confirm the lead time with your shipping agent. For shipping safety, we do not include any fluids (lubricants) with the package. You can purchase these fluids separately from us or locally.
Do you offer online training?
Yes. We offer online training and English instructional videos. Online training typically lasts 3 to 4 sessions, each 2 hours long. Online training is free of charge. If you require on-site training, it will take two days and require two people. The cost is negotiated. We offer online training and English instructional videos.
