TFN T700CQ Cable Blower: A Must-Have for Fiber Optic Cable Laying!
Efficient and safe fiber optic cable laying is a critical component of modern communications network construction. Faced with complex underground pipeline environments and demanding construction requirements, a high-performance cable blowing machine is undoubtedly a valuable asset for engineering teams. TFN's T700CQ multi-functional pneumatic cable blower, with its robust technical capabilities and stable engineering performance, is becoming a trusted choice for industry users.
Core Features: Intelligent and Efficient, Widely Adaptable

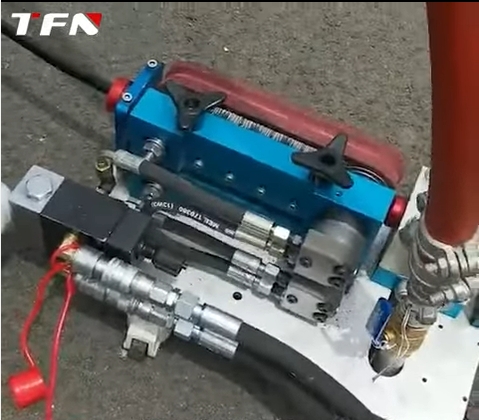

The T700CQ cable blowing machine utilizes an imported compressed air-driven motor, offering significant advantages such as low failure rate, long life, and high efficiency. Key technical highlights include:
Powerful Power and Speed: With a maximum push speed of 120 m/min and a thrust range of 0-700 N, it easily handles the challenges of long-distance laying.
Excellent Compatibility: Designed specifically for optical cables with an outer diameter of 6-14 mm, it is perfectly compatible with GYTA duct cables and unarmored microcables (such as GCYFY and JETOUFU air-blown microcables). It can simultaneously blow 1-3 10/8mm HDPE microducts, significantly improving pipeline utilization.
Intelligent Control and Protection: Supports stepless speed regulation for intuitive and easy operation. The unique soft conveyor belt design effectively protects the cable sheath and core during high-speed delivery, achieving "zero-damage" construction.
-
Flexible Bidirectional Operation: Adapts to different construction scenarios, allowing for easy forward and reverse operation.
Key Technical Parameters: Reliable through Strength (Core parameters refined based on T700CQ technical specifications)
Power Core: Compressed gas drive (0.6-1 MPa / 16 bar), energy-efficient and environmentally friendly, with no complex power requirements.
Efficient Operating Range: A single blow-through can reach 600-2000 meters (depending on terrain, cable specifications, and pipeline quality). The recommended operating speed is 60-80 meters/minute, ensuring both efficiency and safety.
Compact and portable: The main unit measures only 600*400*350mm and weighs 28kg, packaged in a sturdy flight case (750*480*480mm / 50kg), making it easy to transport.
Wide pipe compatibility: Compatible with HDPE/PE silicone-core pipes with a diameter range of 10-50mm.
Significant Application Results: Safe, Efficient, and Economical
Choosing the T700CQ Fiber Blowing Machine brings a qualitative leap forward for your project:
1. Enhanced Cable Protection: The air-blowing method relaxes the optical cable within the duct, completely eliminating the short-term tension and long-term stress caused by pulling during installation, significantly extending the cable's service life and reducing signal loss.
2. Doubled Construction Efficiency: Compared to traditional methods, air-blowing is faster and allows for longer single-pass installations, significantly shortening construction time and reducing labor costs.
3. Pioneer in Microduct and Microcable Technology: Easily implements advanced layered installation of "mother duct + daughter duct + microcable," maximizing duct resource utilization and enabling flexible and convenient future service expansion. It is particularly suitable for the flexible deployment of metropolitan area networks, access networks, and trunk networks.
4. Low Maintenance Costs: The rationally designed structure allows for easy maintenance, and critical wear parts (such as conveyor belts and seals) are readily available as standard, ensuring long-term and stable operation.
Supporting Equipment: Professional Solutions for a Worry-Free Experience

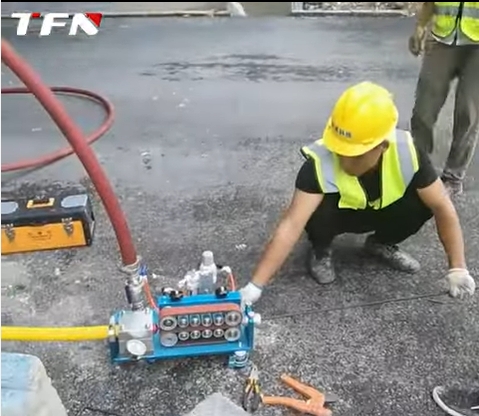

The T700CQ cable blowing machine requires a high-performance diesel portable screw air compressor (displacement 10-15 m³/min, pressure 12-15 bar). It comes with a comprehensive standard configuration, including the main unit, dedicated pipe and cable plugs (in various sizes), high-pressure air tubing, sealing components, guide troughs, and specialized tools, ensuring out-of-the-box operation and worry-free installation.
Conclusion:
The TFN T700CQ multi-functional pneumatic fiber blower combines efficient power, wide compatibility, intelligent protection, and convenient operation, perfectly addressing the speed, safety, and cost challenges of optical cable laying. Whether for telecommunications operators, professional engineering companies, or network builders, it is an indispensable professional tool for improving construction quality and safeguarding network infrastructure. Choosing the T700CQ means choosing an efficient, reliable, and future-proof optical cable installation solution.
