How to reduce the noise floor of the spectrum analyzer to accurately capture tiny signals?
In electromagnetic compatibility testing, wireless communication R&D, or weak RF signal detection, engineers often face a difficult challenge: the target signal is so weak that it is almost drowned by the background noise (noise floor) of the spectrum analyzer itself. Just like trying to hear a whisper in the sound of a rainstorm, too high a noise floor will directly lead to the inability to effectively identify and measure tiny signals. How to effectively reduce the noise floor of the spectrum analyzer to improve measurement sensitivity? This article will provide a set of practical strategies based on the specific characteristics of the TFN brand RMT series spectrum analyzer.
1. Understanding the nature of the noise floor: the starting point of measurement
The noise floor of a spectrum analyzer, also known as the displayed average noise level (DANL), is the performance of the inherent noise generated by its internal circuits (such as mixers, amplifiers, local oscillator phase noise, etc.) on the screen. It sets the lower limit of the instrument's ability to reliably detect signals. TFN RMT series spectrum analyzers have excellent low noise performance (e.g., as low as -165dBm/Hz) with their ultra-low phase noise local oscillator and high stability front-end design, laying a solid foundation for measuring tiny signals. However, even if high-performance instruments are selected, improper operation will still significantly degrade this indicator.
2. Core optimization strategy: from equipment to environment
2.1. Sufficient warm-up and calibration: the cornerstone of stability
Warm-up is critical: All high-precision spectrum analyzers, including TFN RMT, need internal oscillators and amplifiers to reach thermal equilibrium to achieve optimal performance. After turning on the power, be sure to follow the manual recommendations (usually more than 30 minutes) for sufficient warm-up to reduce the noise floor to the lowest stable point.
Regular calibration guarantee: Use the built-in calibration source of TFN RMT or follow the manufacturer's recommendations for regular calibration to ensure that key indicators such as amplitude accuracy and local oscillator phase noise meet the specifications and maintain the optimal noise floor level.
2.2. Optimize key settings of the spectrum analyzer:
Resolution bandwidth (RBW) is the core lever: Reducing RBW can significantly reduce display noise. The principle is that the narrowband filter reduces the noise energy entering the detector. On the TFN RMT, set the RBW to the minimum value that meets the frequency resolution requirements (but note that the sweep time will increase accordingly). For example, if measuring a 1kHz interval signal, selecting a 1kHz RBW can improve the noise floor by about 10dB compared to a 10kHz RBW.
Video bandwidth (VBW) smooths noise: Increasing the VBW is equivalent to low-pass filtering the display trace, which can smooth the display noise fluctuations and make weak signals more easily stand out from the noise background. On the TFN RMT, try setting the VBW to 1% to 1% of the RBW to optimize the signal-to-noise ratio (SNR) display, but avoid setting it too large to cause loss of signal details.
Attenuator setting: Although increasing the input attenuator can protect the port, it will degrade the system noise figure and raise the noise floor. Under the premise of ensuring that the input signal does not damage the spectrum analyzer (especially when measuring small signals), the attenuator setting should be as small as possible (such as 0dB or 10dB). The low noise front-end design of TFN RMT allows operation with less attenuation, which is beneficial for noise floor optimization.
Preamplifier (if any) is wisely enabled: Many high-end spectrum analyzers (such as TFN RMT) support external or internal preamplifier options. Preamplifiers can significantly improve the system noise figure, especially in the higher frequency band. However, it is necessary to pay attention to its gain and self-noise figure specifications, and ensure that the input signal does not overload the preamplifier. Enabling the preamplifier is one of the most effective means to reduce the noise floor in the high frequency band.
2.3. Control input signal and environmental interference:
Clean signal source: Ensure that the signal input to the spectrum analyzer itself has low noise and no spurious. Use high-quality cables and adapters to avoid poor quality connections introducing additional noise or interference.
Shielding and grounding: Placing the device under test (DUT) and spectrum analyzer in a well-shielded test environment (such as a shielded room) and using a short and high-quality grounding wire to ground them well is the key to resisting external electromagnetic interference (EMI) and reducing the noise floor raised by environmental noise.
Stay away from interference sources: Keep the test system away from potential noise sources such as high-power devices, switching power supplies, and displays.
2.4. Use the averaging function:
Video Avg or Trace Avg: Modern spectrum analyzers such as TFN RMT provide powerful averaging functions. By averaging the results of multiple scans, the amplitude of random noise can be effectively reduced (the degree of improvement is proportional to the square root of the number of averages), allowing stable weak signals to emerge from the fluctuating noise. This is particularly effective for measuring signals close to the noise floor.

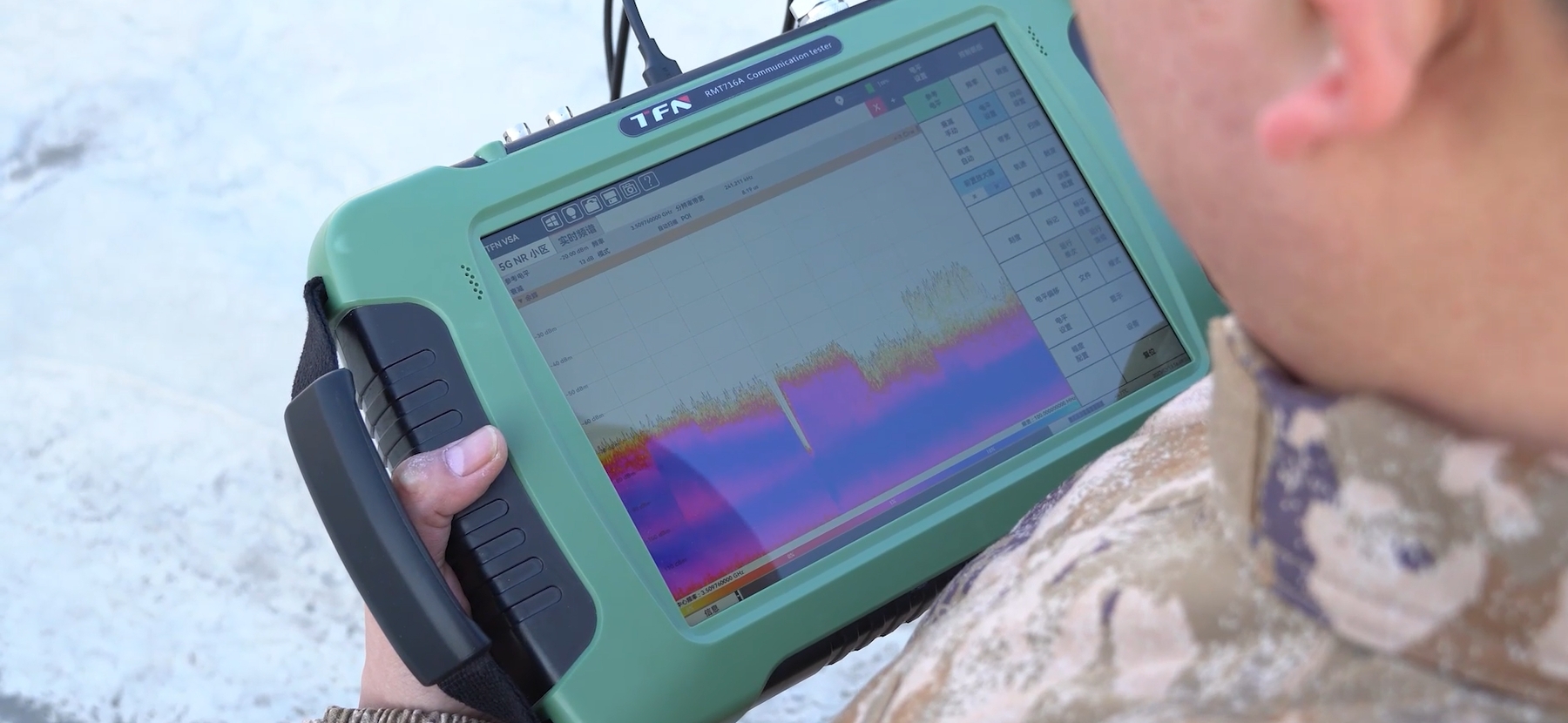

3. TFN RMT: A powerful tool for low noise floor measurement
TFN brand RMT series spectrum analyzers have low phase noise and low noise floor as their core goals since their design:
Ultra-low phase noise local oscillator: Local oscillator phase noise is a key factor affecting the near-end (close to the carrier) noise floor of the spectrum analyzer. The RMT series uses advanced frequency synthesis technology to achieve extremely low phase noise, ensuring that when measuring weak signals adjacent to strong signals, the noise floor will not be raised by the local oscillator noise.
High stability and low noise front end: The optimized RF front end link design minimizes the thermal noise generated by the internal amplifier and mixer, providing excellent original noise floor performance.
High performance preamplifier option: The RMT series provides a dedicated low noise figure preamplifier option, which can significantly improve the system sensitivity, especially suitable for measurement scenarios of millimeter wave bands or extremely weak signals.
Precise setting control and averaging algorithm: The instrument provides precise RBW/VBW control, flexible attenuator settings, and efficient averaging algorithms, which facilitate engineers to fine-tune according to test requirements and minimize the noise floor.
4. Summary
Reducing the noise floor of the spectrum analyzer to measure tiny signals is a systematic project, which requires understanding the principles and comprehensive use of equipment preheating, setting optimization (RBW, VBW, attenuator, preamplification), environmental control (shielding, grounding), and signal averaging. Choosing a spectrum analyzer like the TFN RMT series, which has excellent low noise performance, provides a strong hardware guarantee for successfully capturing tiny signals. By carefully optimizing every link in the measurement chain, engineers can effectively suppress the noise background and make those weak signals that were once "invisible" clearly appear, clearing obstacles for cutting-edge research and development and precise testing.
