rF Signal analyzers

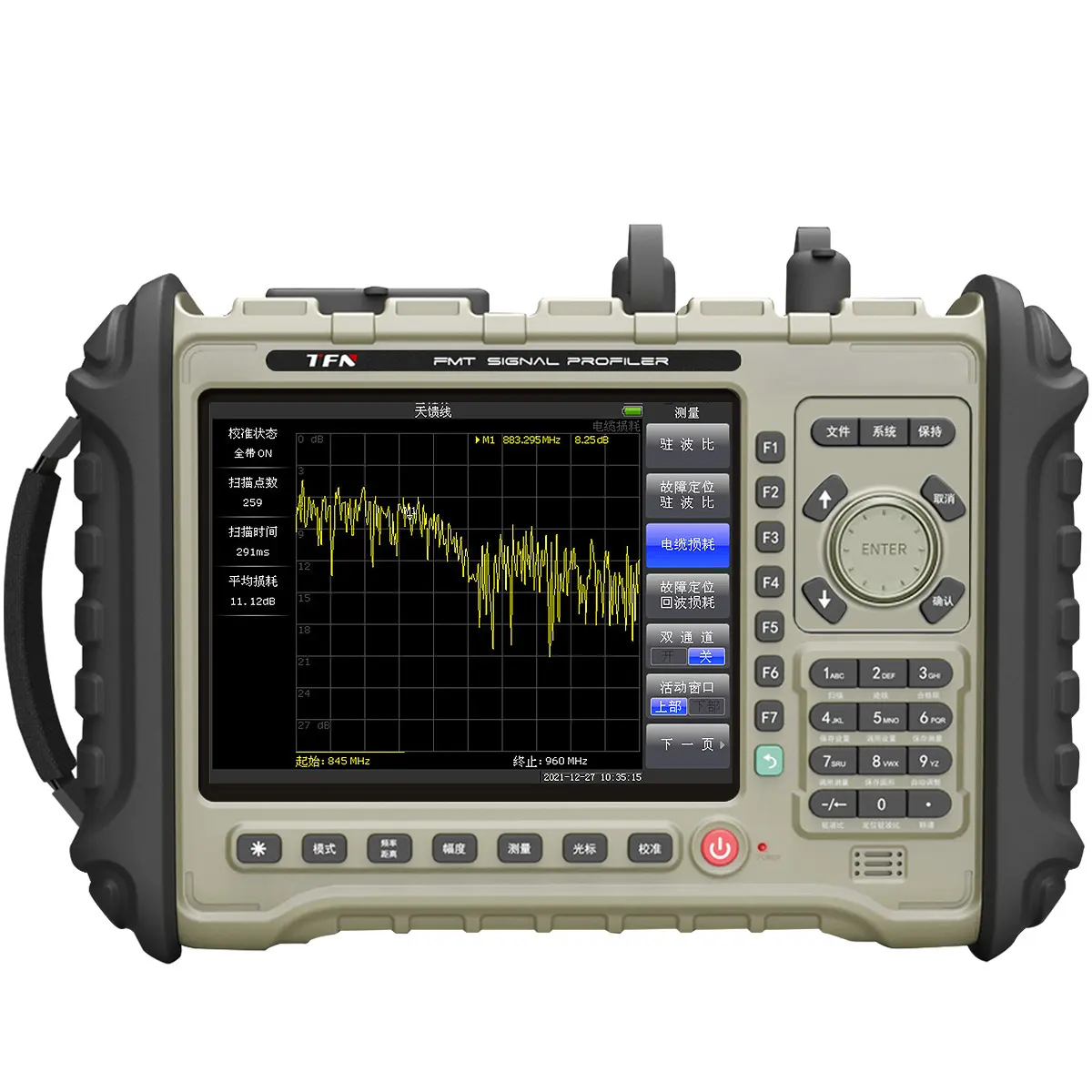

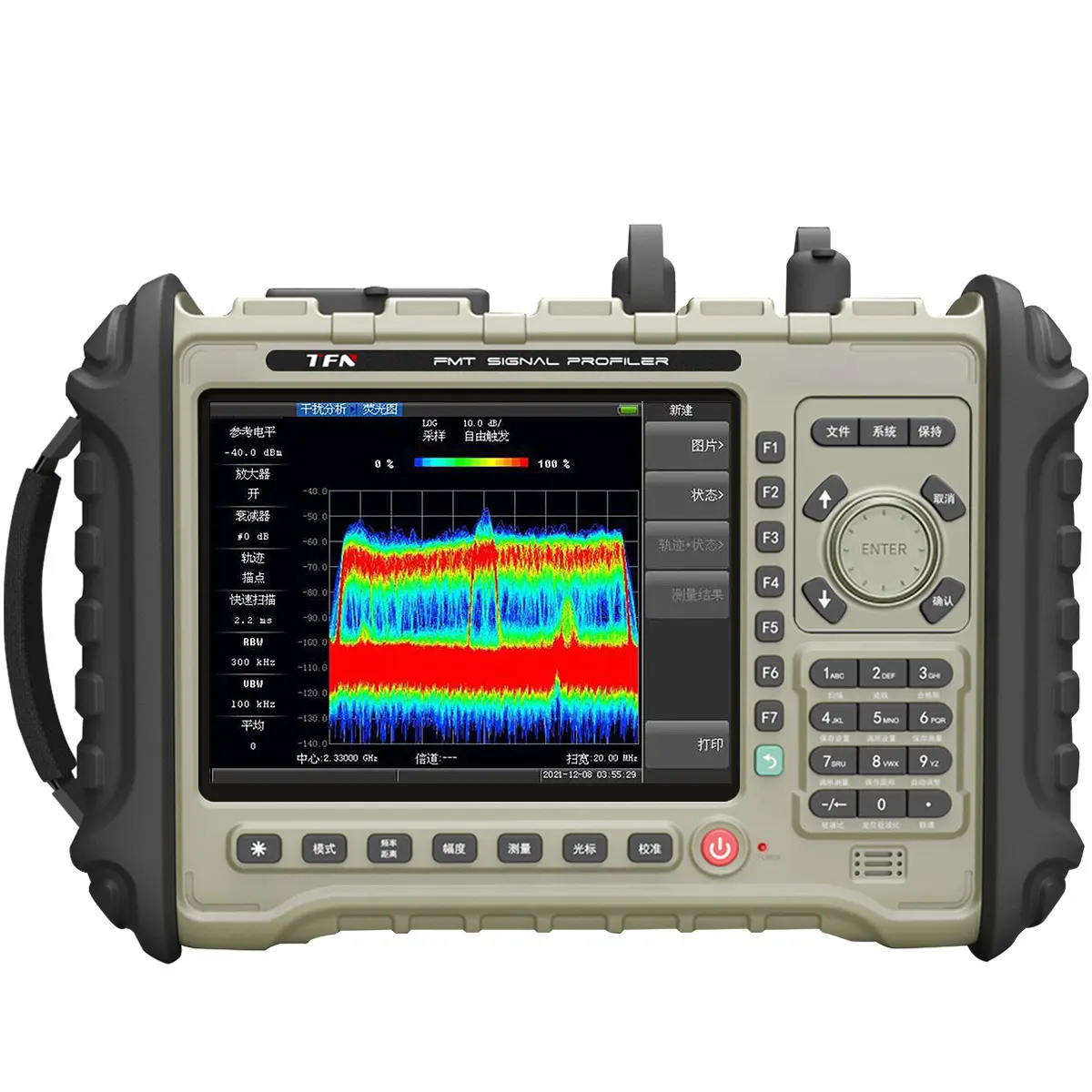

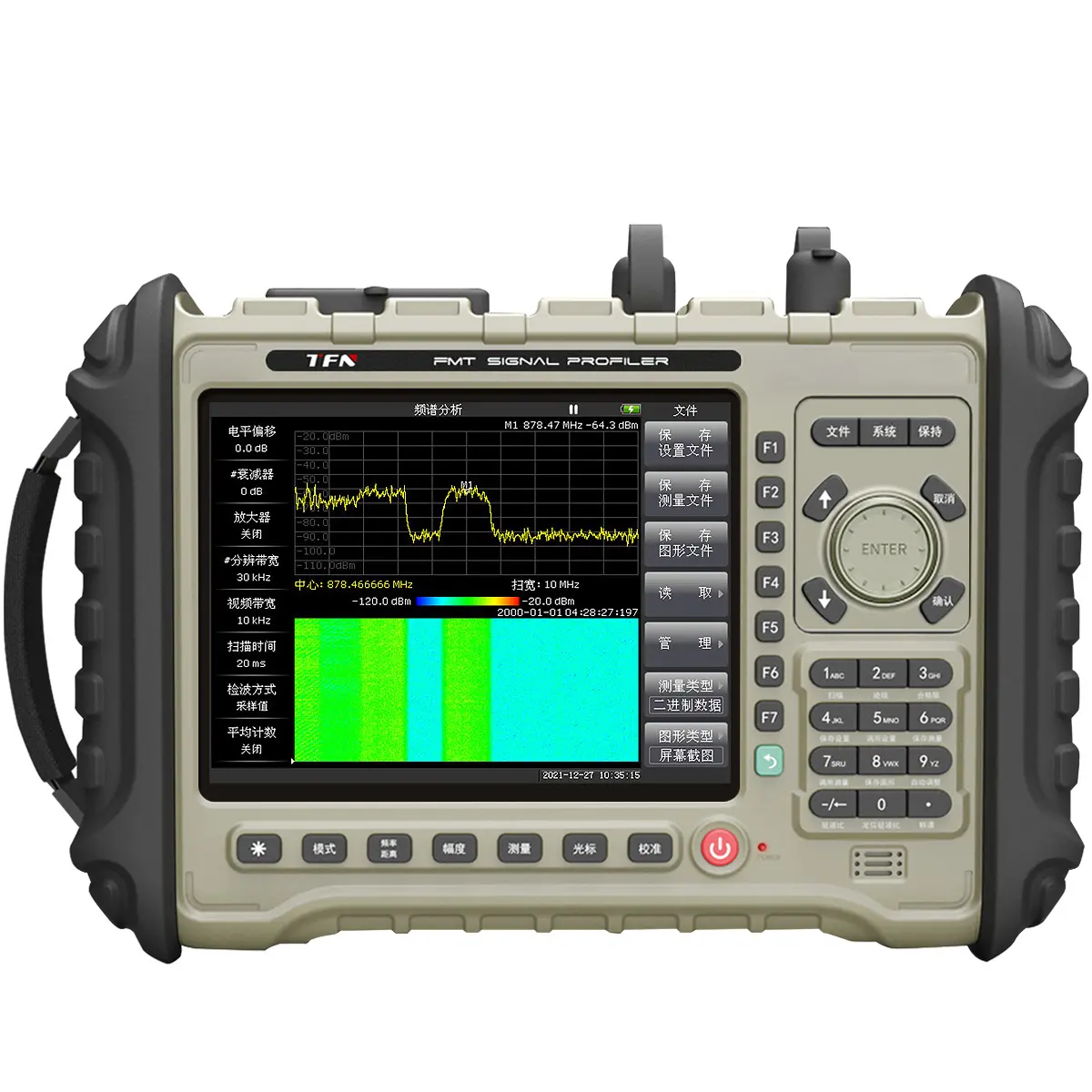

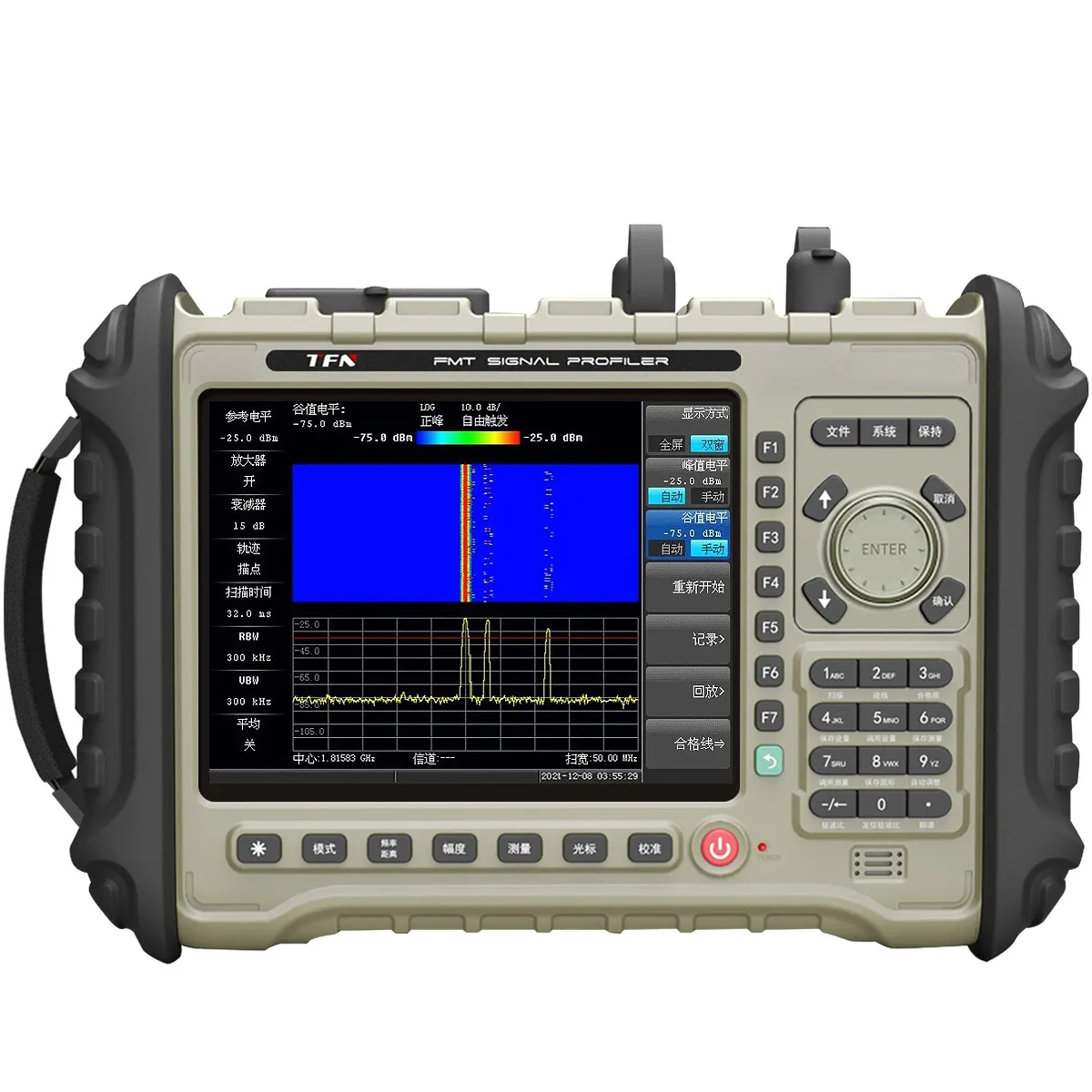

FMT715A and FMT760A are portable RF analyzers that integrates spectrum analysis, antenna and feeder testing, and interference troubleshooting.
Highlights
- Supports measurements of channel power, adjacent channel power, occupied bandwidth, phase noise, spurious emissions, etc. Dual-window spectrum display, supporting digital afterglow and spectrum graph, easily captures intermittent interference
- Adopt FDR fault location technology to accurately locate the fault point of antenna feeder line. Supports cable loss, return loss, and VSWR measurements to prevent equipment damage and signal coverage degradation
- Supports LTE/FDD/TDD base station testing, including key indicators such as ACLR, SEM, PVT, and EVM. Constellation diagram analysis, control channel power measurement, and co-channel interference testing help optimize network performanc
- Built-in GPS and map, support frequency clearance test and interference source location
- Spectrum graph recording up to 72 hours, support video playback, easy to track sudden interference
- Equipped with multiple interfaces such as USB, LAN, GPS, RF OUT, etc., supporting external devices and data transmission
- Built-in large-capacity lithium battery, typical battery life 6 hours, suitable for long-term outdoor work
Specifications
| Items/Model | FMT715A | FMT760A |
| Frequency range | 2MHz–4.4GHz | 2MHz–6GHz |
| Spectrum analysis range | 9kHz–4.4GHz | 9kHz–6GHz |
| Phase noise | < -100 dBc/Hz @10kHz offset | < -100 dBc/Hz @10kHz offset |
| Dynamic range | 80 dB | 80 dB |
| Scan points | Maximum 2065 points | Maximum 2065 points |
| Display | 6.5″ TFT LCD, 640×480 | 6.5″ TFT LCD, 640×480 |
| Battery life | > 4.5 hours (typically 6 hours) | > 4.5 hours (typically 6 hours) |
Application Scenarios
Mobile communications operators
Wireless Network Optimization Company
Radio and Television Maintenance Team
RF equipment manufacturers
Communication engineering installation and maintenance
Real Experiences with Signal Analyzers
Michael T.
“The FMT715A is perfect for field maintenance. It’s accurate, easy to use, and helps us quickly find and fix antenna and signal issues. The GPS and interference tracking functions are very helpful during site inspections.”
Sarah L.
“The FMT760A combines spectrum analysis and feeder testing in one compact device. It’s reliable, user-friendly, and saves a lot of time in daily RF testing work. Battery life and data export are also excellent.”
FAQs
What logistics options do you offer?
We provide optimized logistics solutions based on the urgency of your order, size, weight, and your location:
International Express: Suitable for samples, urgent orders, and small shipments under 22 lb. We partner with top logistics providers such as DHL, FedEx, and UPS, offering door-to-door tracking.
Air Freight: Suitable for medium to large orders or time-sensitive complete equipment, offering an effective balance between cost and speed.
Ocean Freight: Suitable for large-volume orders and the most economical shipping method. We offer a variety of trade terms, including FOB, C&F, and CIF.
What’s the lead time?
For our standard products, if there are in stock and ready for shipment, the lead time is about 7-10 days. For our optional products, the lead time is about 25-30 days.
What is the product warranty period?
We are confident in the quality and reliability of our products.
We offer a standard 12-month warranty on all instruments, starting from the date of arrival at the port of destination.
Extended warranties are also available; please contact our sales team for details.
