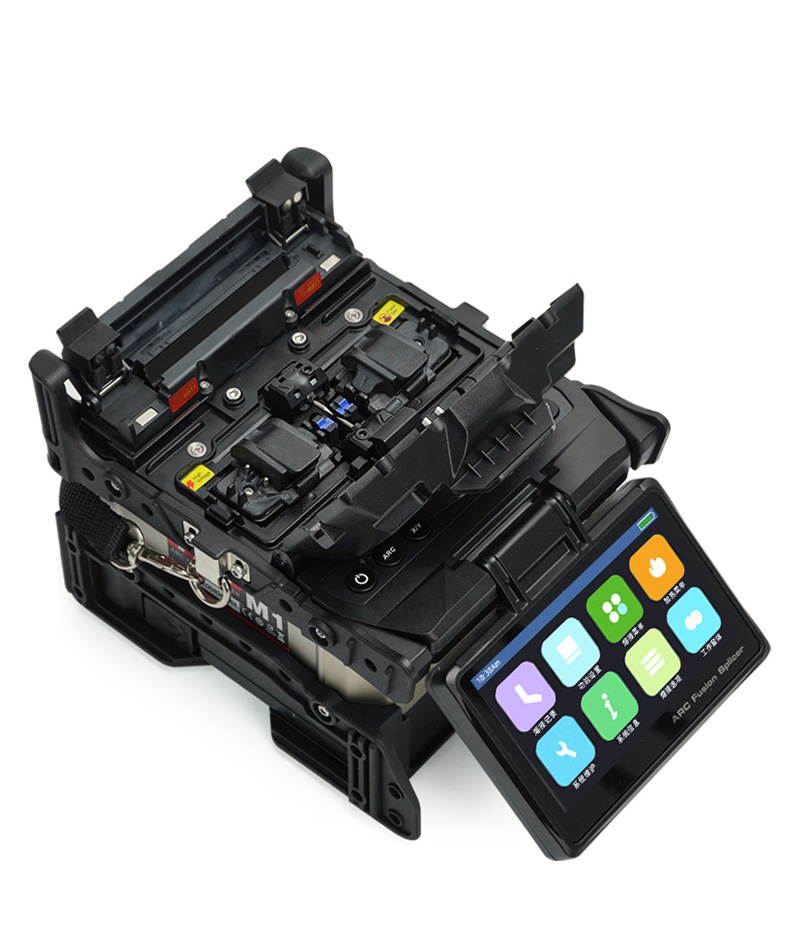

M1 Fusion Splicer

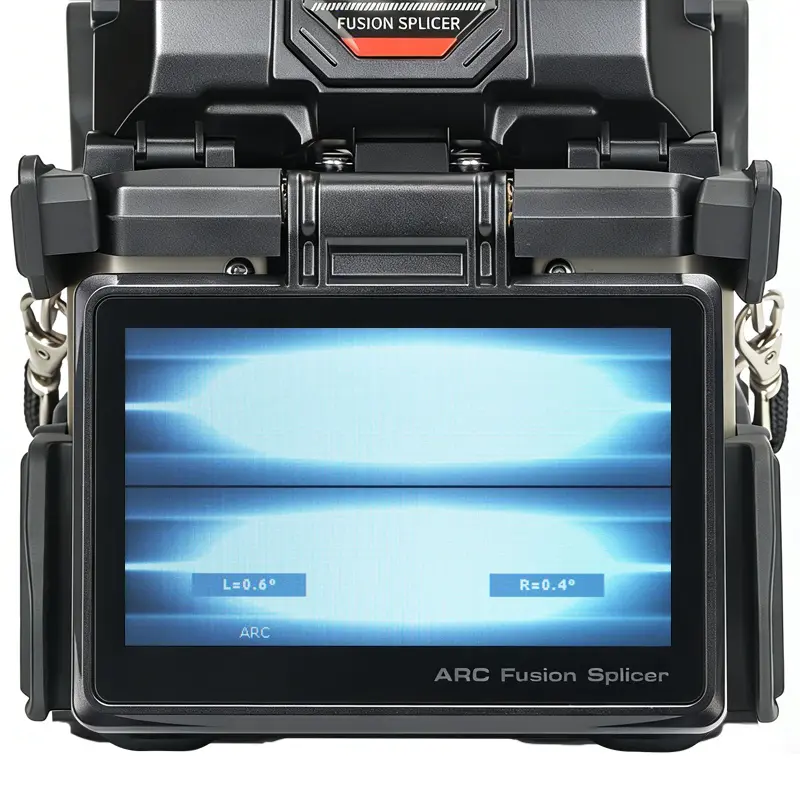

A fiber optic fusion splicer is to join two optical fibers. It generates an electric arc to melt the fiber ends, creating a low-loss, high-strength permanent connection that ensures efficient signal transmission.
Highlights
- High precision & ultra-low loss fusion splicing. The average loss is as low as 0.02 dB for single-mode and 0.01 dB for multi-mode fibers. This results in stronger signal integrity, reduced network downtime, and superior performance in long-haul and high-speed fiber networks.
- 7-second fast fusion and 18s heating significantly reduce project timelines.
- All-in-One Triple-Function Fiber Clamp. Our three-in-one fixture supports 0.25 mm, 3.0 mm, and flat indoor cables, making it compatible with pigtails, drop cables, and patch cords.

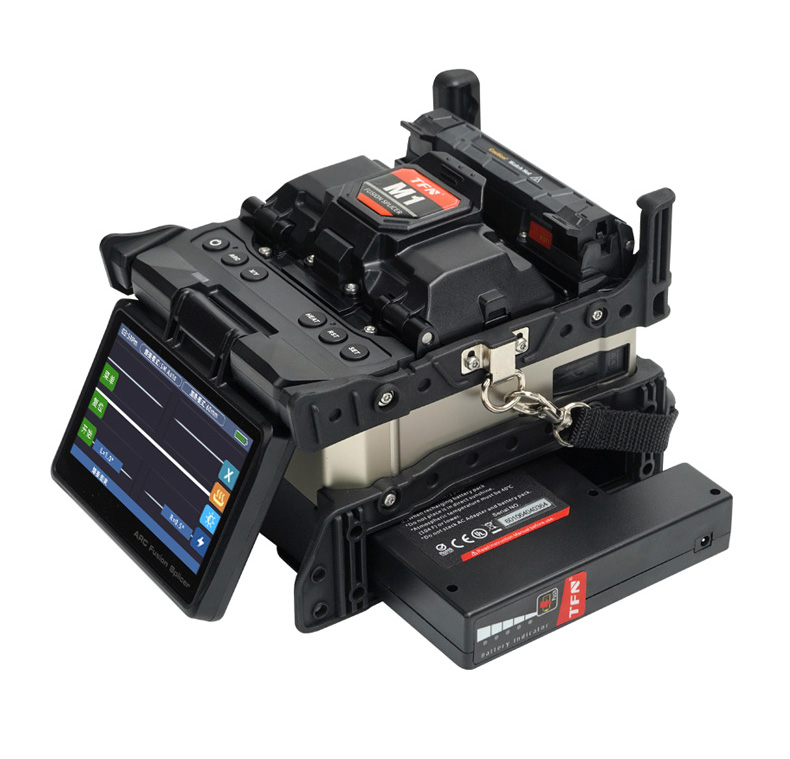

- 5200 mAh high-capacity lithium battery supports 240 splicing and heating operation. Compact body facilitates portability, meeting fieldwork demands.
- The smart fusion splicer features a 4.3-inch touchscreen, dual-camera real-time monitoring, 41 preset programs, and storage for 2000 splice records.
- Backed by a 3-year warranty with online support and loaner unit service, ensuring peace of mind and uninterrupted operations.
- M1 fusion splicer comes with a complete set of standard accessories, allowing you to start using it right out of the box.
Specifications
| Model | M1 |
| Average Fusion Loss | SM: 0.02 dB / MM: 0.01 dB / DS: 0.04 dB / NZDS: 0.04 dB / G657: 0.02 dB |
| Return Loss | >60 dB |
| Splicing Time | Standard 7 seconds (SM), FAST mode 6 seconds |
| Fits Fiber | SM/MM/NZDS/G657, 0.25 mm–3.0 mm fibers, flat indoor cables |

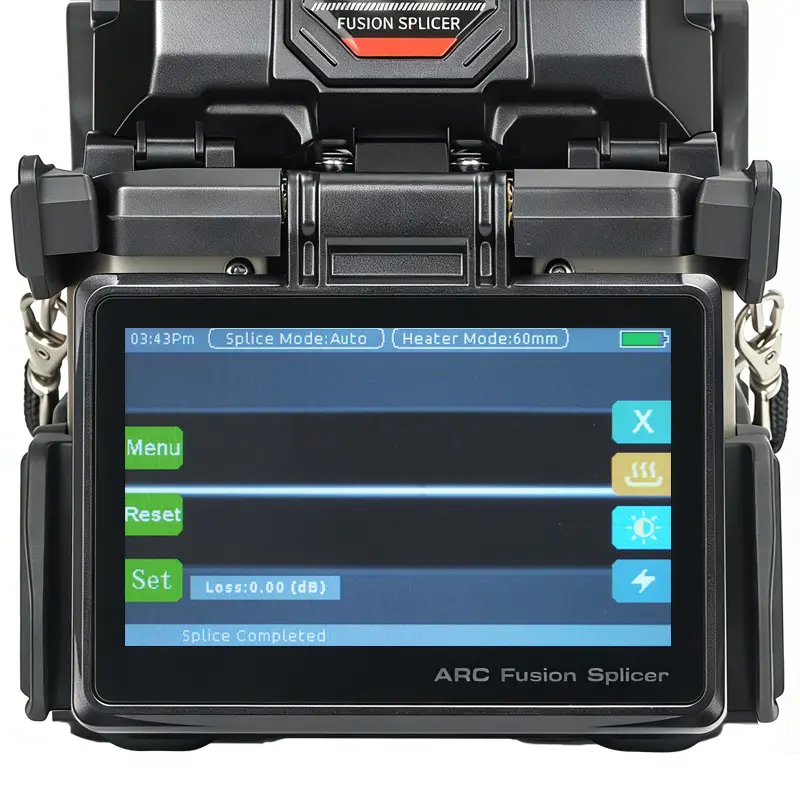

| Motors | 4 |
| Heater Heat Shrink Tubing Support | 40 mm/60 mm/SOC-3.0/SOC-0.9 |
| Battery Capacity & Runtime | 5200 mAh lithium battery, typically supports 240 welds + heating cycles |

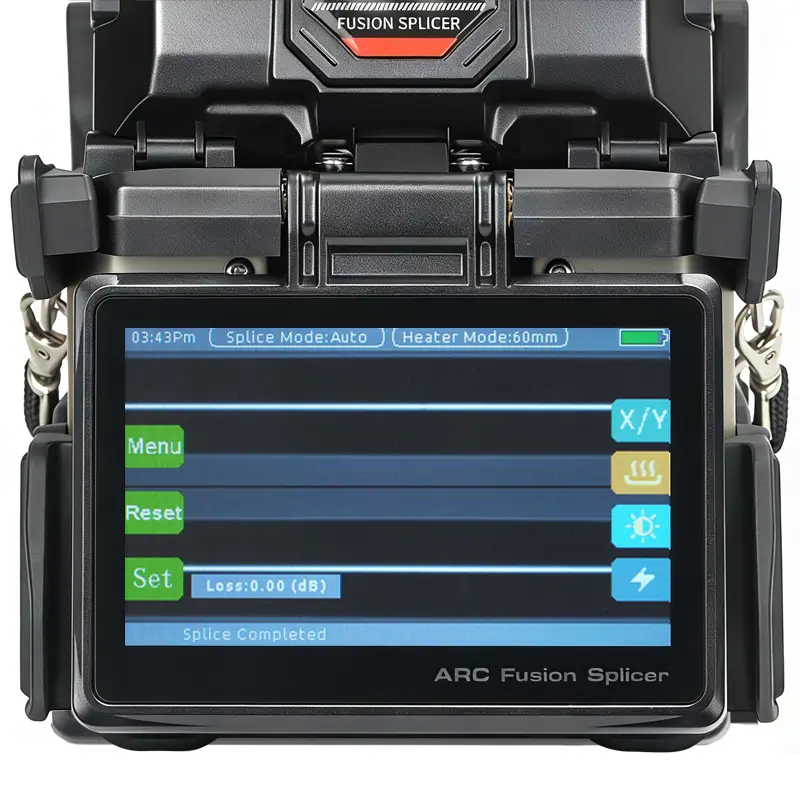

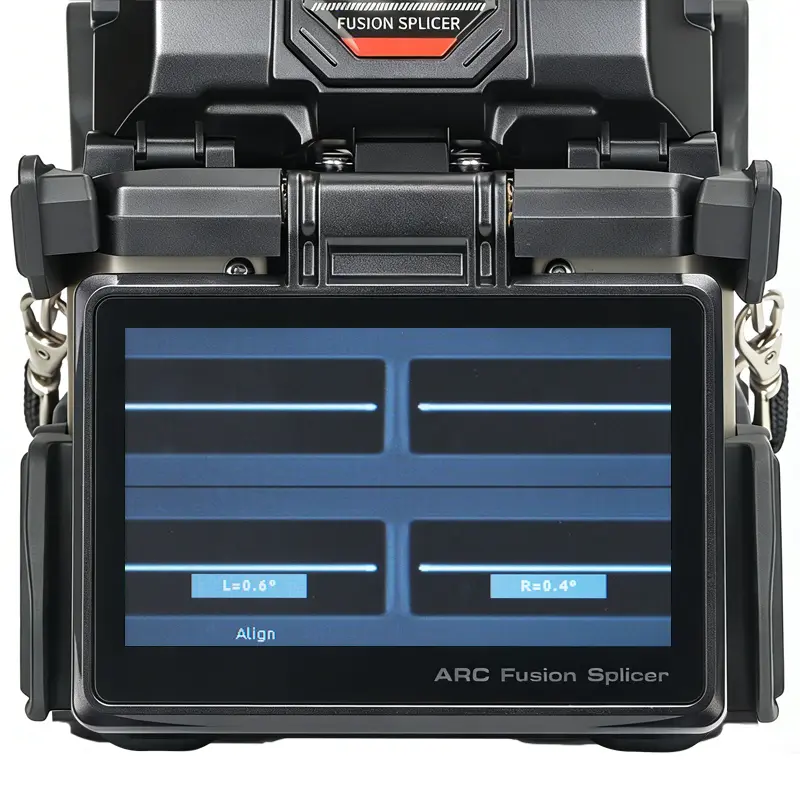

| Display and Observation | 4.3-inch touchscreen, dual cameras, 500x magnification (X/Y/X-Y modes) |
| Power Input | AC 100-240V or DC 9-14V |

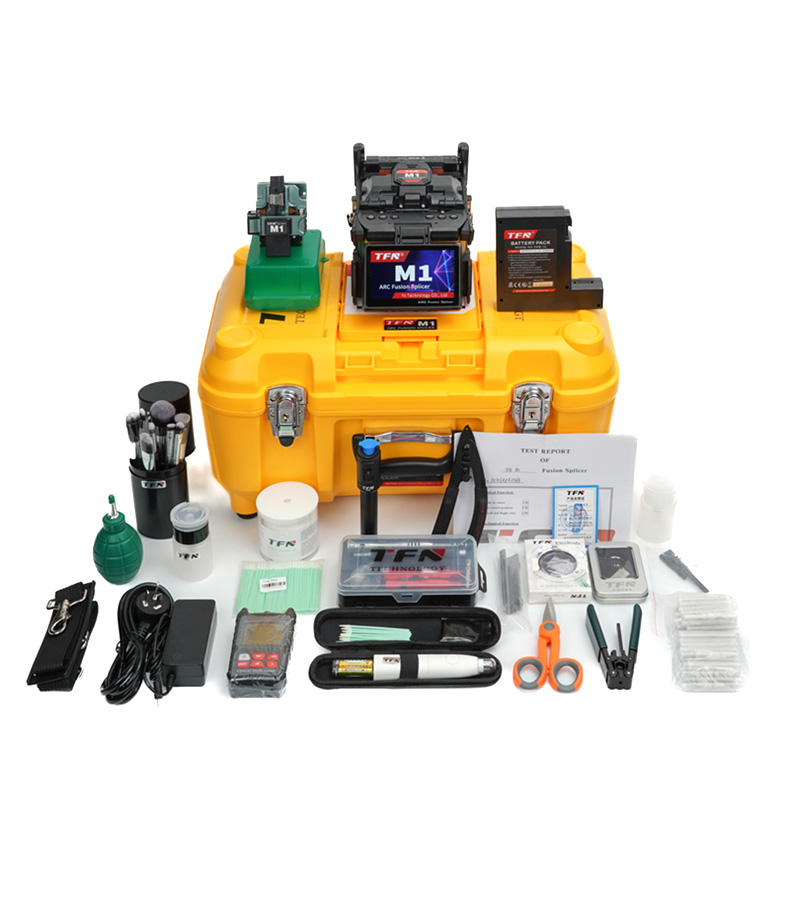

Standard accessories: the fusion splicer, fiber cleaver, fiber stripper, leather wire stripper, kevlar scissors, 2 packs of heat shrink tubing, alcohol pot, power adaptor, power cord, cooling rack, electrode rod, large-capacity battery, shoulder strap, operating instructions, carrying case.
Use Cases
- 50 km trunk line, FTTH
- Urban Line Maintenance
- Security Surveillance
- Residential Area Line Installation and Repair
Product Demo
Real Experiences with TFN Fusion Splicers
“I’m really impressed with the TFN fusion splicer. The operation is extremely simple and intuitive, even for new technicians. We’ve been using it on many fiber projects, and it delivers consistent, low-loss connections every time.”
John M.
“We had some technical questions during setup, and their team responded immediately with clear guidance. The after-sales support is professional and reliable. They cares about their customers, not just the sale.”
Mr.Chen
“The build quality of the fusion splicer is outstanding. I’ve used other brands before, but TFN’s splicer stands out for its precision and complete toolkit. It’s helped our team finish fiber installations faster and with fewer issues.”
Carlos R.
FAQs
Is product operation training provided after purchase?
Yes. We understand the importance of proper operation of professional instruments.
Basic Training: We provide a detailed English operating manual.
Online Remote Training: We can provide real-time online operation training and Q&A for you and your team via video conferencing software (such as Zoom and Teams).
On-site Training: Based on project requirements, we can arrange for our engineers to conduct in-depth on-site training (travel expenses are subject to negotiation).
Training content can be customized to your specific application scenario.
What is the lead time?
Delivery time depends on the complexity of the product and the current order status.
Standard models are usually in stock and can be shipped within 3-7 business days after receiving payment.
Custom/high-configuration models may require 2-6 weeks for production and testing.
The exact delivery time will be confirmed in writing by your sales manager after you place your order.
What is the product warranty period?
We are confident in the quality and reliability of our products.
We offer a standard 36-month warranty on all instruments, starting from the date of arrival at the port of destination.
Extended warranties are also available; please contact our sales team for details.
