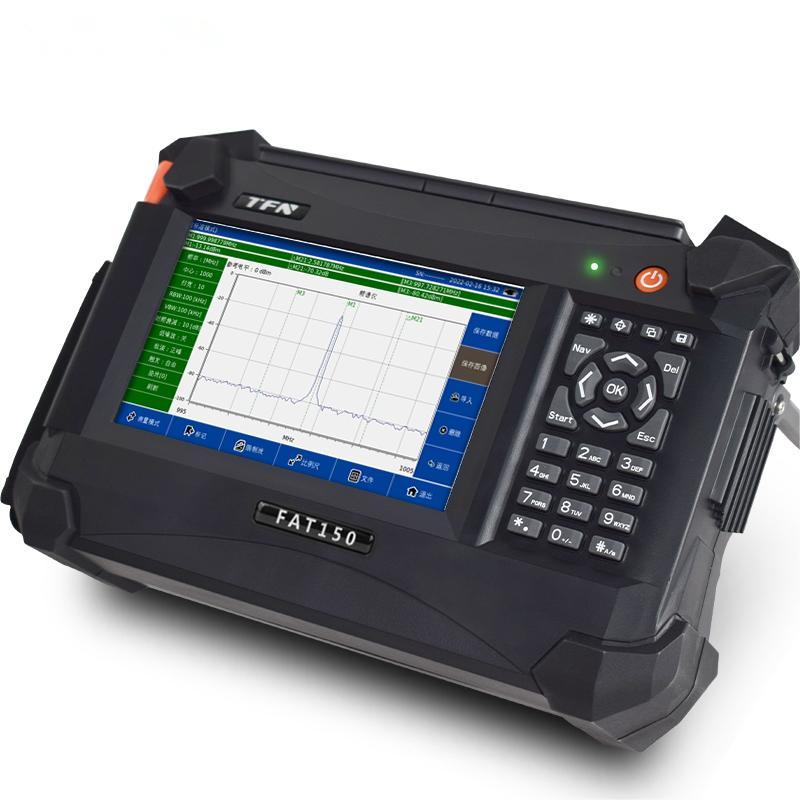

FAT150 Spectrum Analyzer
9kHz to 6GHz high-performance portable spectrum analyzer, a professional tool for 5G testing
Highlights
- DANL as low as -165dBm/Hz, capturing weak signals easily
- Low phase noise ensures signal purity and measurement accuracy
- 100 dB dynamic range for simultaneous strong/weak signal measurement
- Communication power test enables adjacent channel power (ACLR), channel power, OBW/EBW, carrier-to-noise ratio, etc.
- AM, FM, FFT, IQ demodulation available in zero-frequency mode
- Multi-trace analysis: supports 4 traces with multiple modes including maximum hold, minimum hold, power average, etc
- 7-inch capacitive touch screen for smooth and intuitive operation
- Multiple display modes: support day and night, high brightness and other modes to adapt to different environments
- Powerful file management: supports batch editing, deletion, filtering
- Battery life of 4.5 hours, meeting all-day field testing needs
Specifications
| Frequency range | 9kHz ~ 6GHz |
| Displayed Average Noise Level (DANL) | Preamplifier on: ≤-165 dBm/Hz (10MHz-2GHz) |
| Phase noise | -90 dBc/Hz @10kHz offset (typical) |
| Resolution Bandwidth (RBW) | 1Hz ~ 3MHz (1-3-10 sequence) |
| Video Bandwidth (VBW) | 1Hz ~ 3MHz (1-3-10 sequence) |
| Dynamic Range | 100 dB |
| Maximum input power | +27dBm (Continuous Wave) |
| Measurement accuracy | ±1.5dB |
| Input attenuation range | 0~55dB (5dB step) |
| Reference level range | -160dBm ~ +40dBm |
| Screen | 7-inch capacitive touch screen, 1024×600 |
| Battery life | 4.5 hours |
| Weight | 2.8kg (including battery) |
| Operating Temperature | -10℃ ~ +55℃ |
Application Scenarios
- 5G communication testing: base station installation and maintenance, network optimization
- Equipment R&D: mobile phones, IoT modules, and RF device testing
- Field signal monitoring: interference troubleshooting, signal coverage testing
- Education and research: communication principle experiments, radio frequency circuit teaching
- Production Line Testing: Wireless Product Performance Verification
