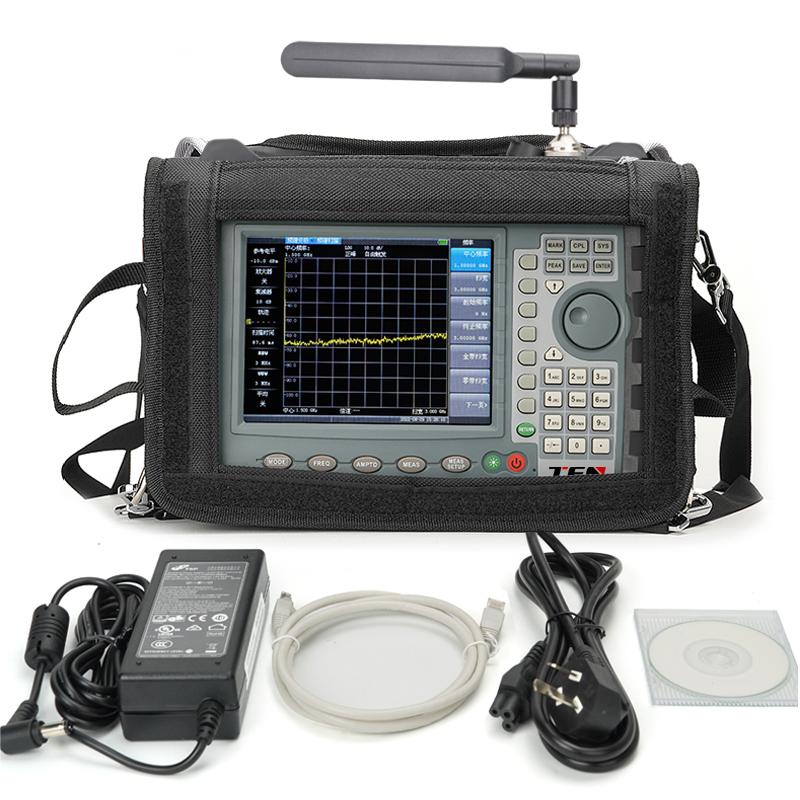

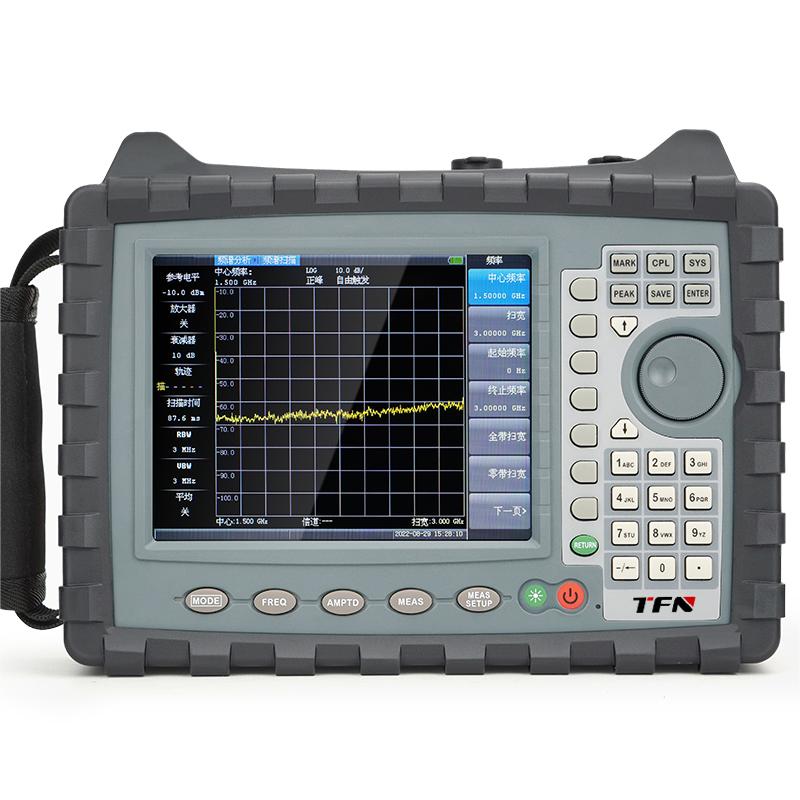

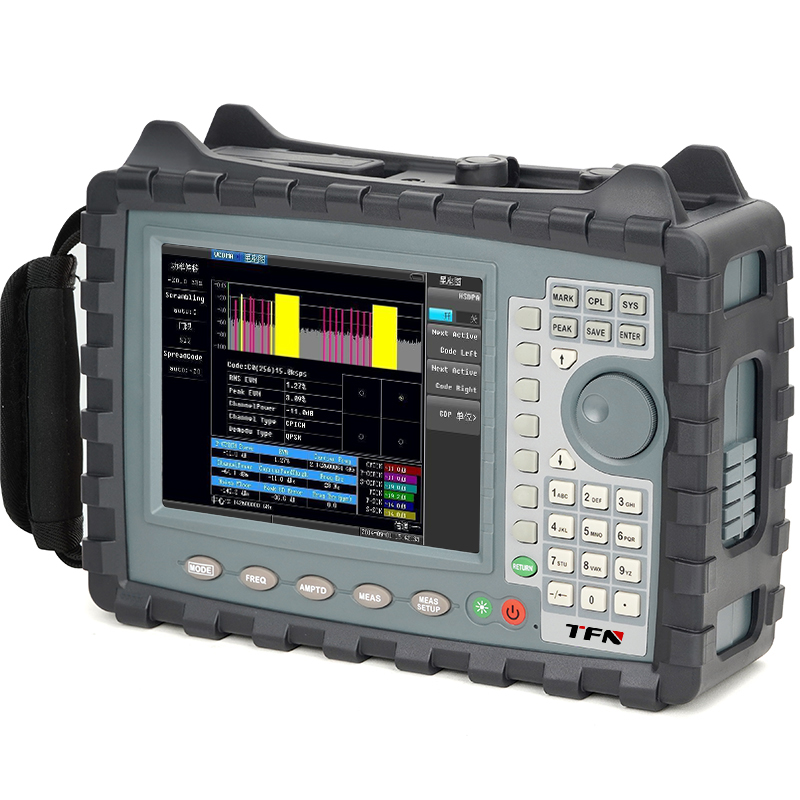

FAT130 Spectrum Analyzer
The FAT130 is a handheld RF tester with a frequency range of 9kHz to 3GHz.
Highlights
- Multiple scanning modes adapt to different test scenarios
- Supports 6 scanning tracks and 6 marking points for easy signal comparison and tracking
- ACLR testing and template editing: Supports adjacent channel leakage ratio testing, suitable for communication transmitter verification
- Field strength testing and antenna factor import: facilitate on-site electromagnetic environment monitoring and antenna calibration
- One-click harmonic analysis: Quickly identify system harmonic distortion
- FM/AM demodulation: supports signal demodulation analysis, suitable for broadcast and communication system debugging
- Dual-window spectrum function supports simultaneous display of two spectrum windows to improve analysis efficiency
- DF test function supports directional search and signal source positioning

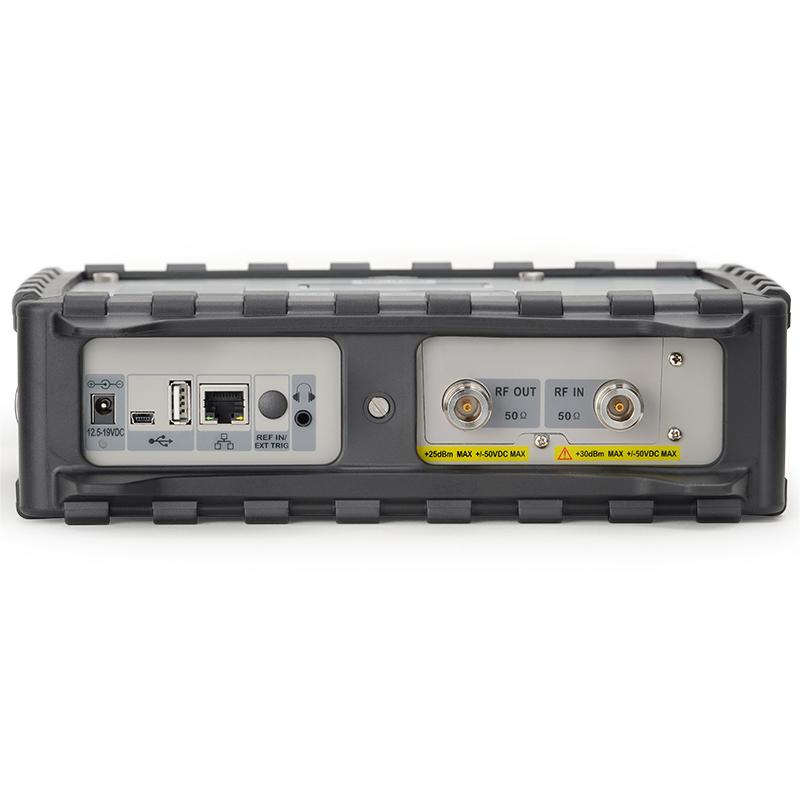

- USB, Ethernet, and headphone interface all available, enable remote control and data export
- Battery life is more than 4 hours, meeting the needs of long-term field testing
- Linux kernel system is stable and supports secondary development
Specifications
| Frequency range | 9kHz ~ 3GHz |
| Displayed Average Noise Level (DANL) | Preamplifier off: ≤145dBm (2MHz – 1GHz) ; Preamplifier on: ≤160dBm (2MHz – 1GHz) |
| Phase noise | <105dBc/Hz @100kHz offset (typical) |
| Resolution Bandwidth (RBW) | 1Hz ~ 3MHz |
| Video Bandwidth (VBW) | 1Hz ~ 3MHz |
| Preamplifier | 18 dB |
| Input attenuation range | 0 ~ 51dB (1dB step) |
| Reference level range | -100dBm ~ +30dBm |
| Screen | 5.7-inch TFT-LCD, 600×480 |
| Maximum input level | +30 dBm |
| Level accuracy | ≤±1.5dB (typical) |
| Scanning trajectory | 6 articles |
| Dispaly | 640×480 TFT color LCD touch screen |
| Weight | ＜2.5kg (including battery) |
Application Scenarios
- Communication base station maintenance: ACLR testing, transmitter performance verification
- Field signal monitoring: field strength test, interference troubleshooting, signal positioning
- Education and scientific research: communication principle experiments, radio frequency circuit testing
- Electromagnetic environment assessment: field strength distribution measurement, antenna performance test
- Production Line Testing: RF Component Performance Verification
