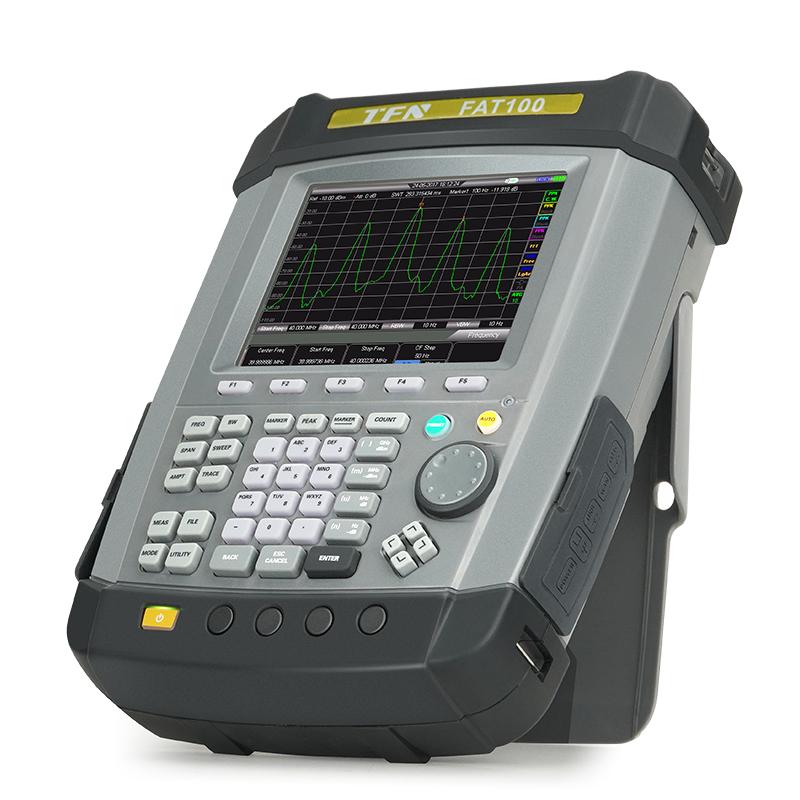

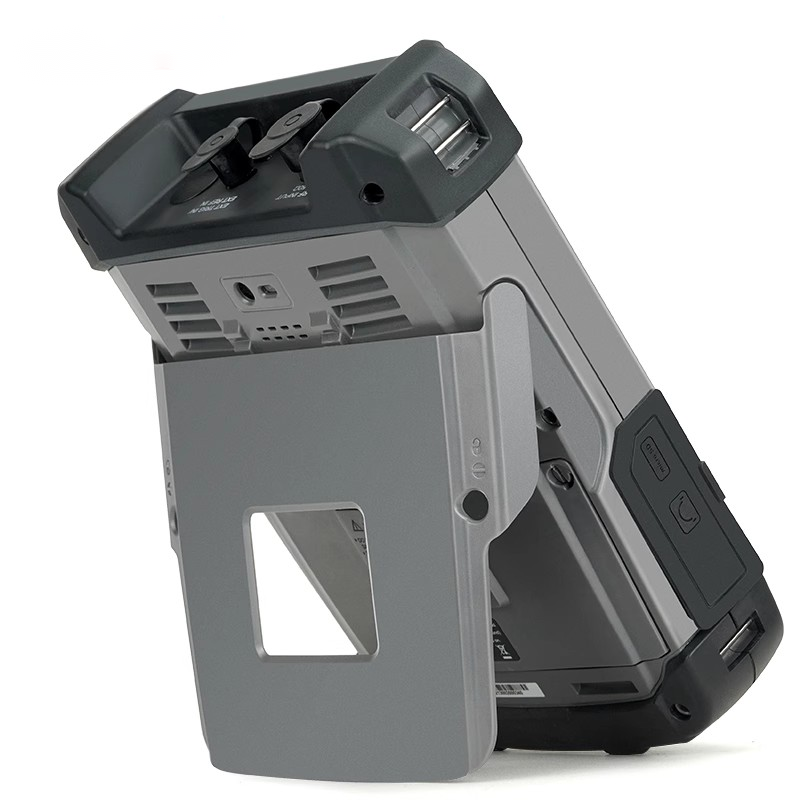

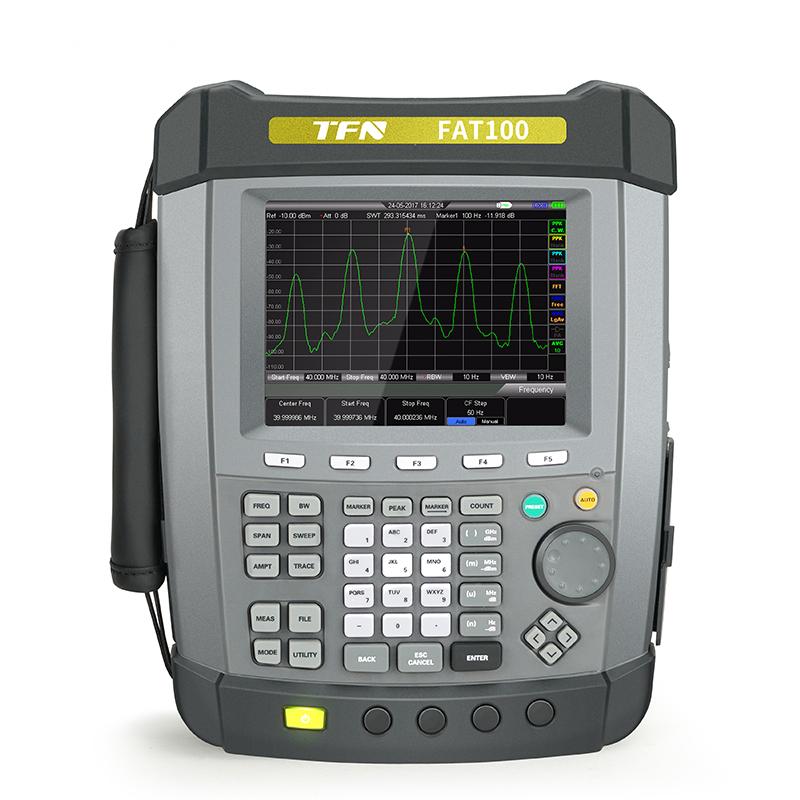

FAT100 Spectrum Analyzer

The FAT100 is a cost-effective, entry-level handheld RF tester with a frequency range of 9kHz to 4GHz.

Highlights

The displayed average noise level (DANL) is as low as 135dBm (typical), supporting weak signal detection
Low phase noise ensures signal purity and measurement accuracy
Supports full span, zero span, manual step and other scanning modes
Multiple trace modes such as clear write, maximum hold, and minimum hold, facilitating signal comparison and analysis
Multiple cursor modes such as normal, difference, and difference pair, and one-click peak search to quickly locate signal features
LAN, USB Host/Device, SD card slot are standard, supporting data export and remote control
Tracking generator option (FAT100 – B): Built-in tracking generator (5MHz1.6GHz), supports frequency response testing

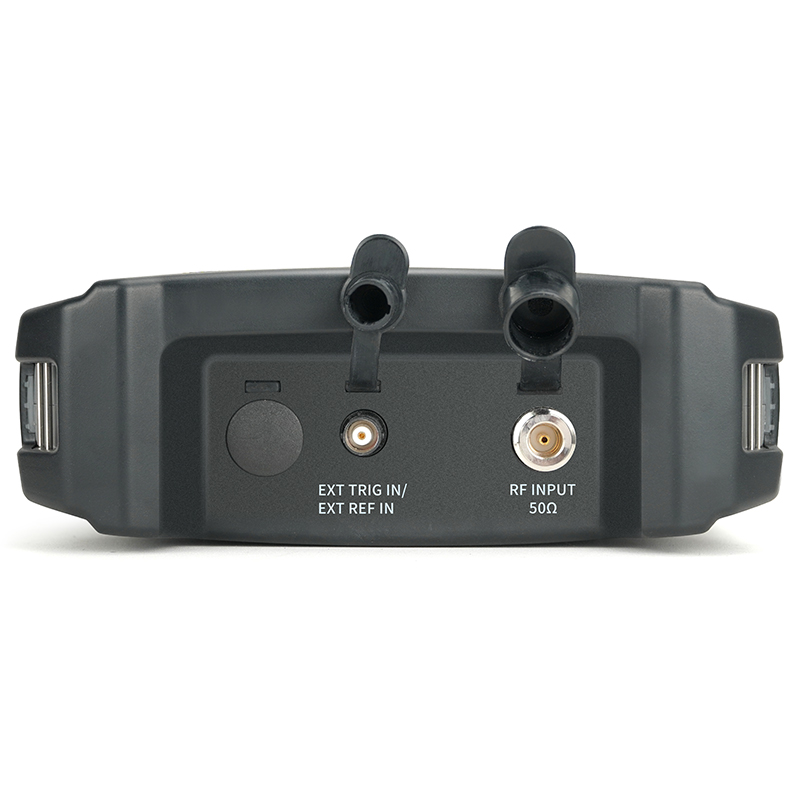

Supports 10MHz external reference signal to improve system synchronization capability
5.7-inch high-definition color LCD screen offers clear images and intuitive operation.
One-touch Auto Tune: Quickly locate the signal and optimize parameter settings.

Request a Quote

Specifications

Frequency range	9kHz ~ 1.6GHz
Displayed Average Noise Level (DANL)	-135dBm (typical value, preamplifier on)
Phase noise	-80dBc/Hz @10kHz offset
Resolution Bandwidth (RBW)	10Hz ~ 1MHz (1-3-10 sequence)
Video Bandwidth (VBW)	1Hz ~ 1MHz
Amplitude accuracy	<1.5dB
Input attenuation range	0 ~ 51dB (1dB step)
Reference level range	-100dBm ~ +30dBm
Screen	5.7-inch TFT-LCD, 600×480
Communication interface	LAN, USB Host/Device, SD card slot
power supply	DC 12-17V / AC adapter
Operating Temperature	-10℃ ~ +50℃

Application Scenarios

Educational experiments: Communication principles, RF circuit teaching
R&D debugging: wireless module and RF device performance verification
Production testing: testing of passive/active components such as filters and amplifiers
On-site maintenance: signal coverage detection, interference troubleshooting
