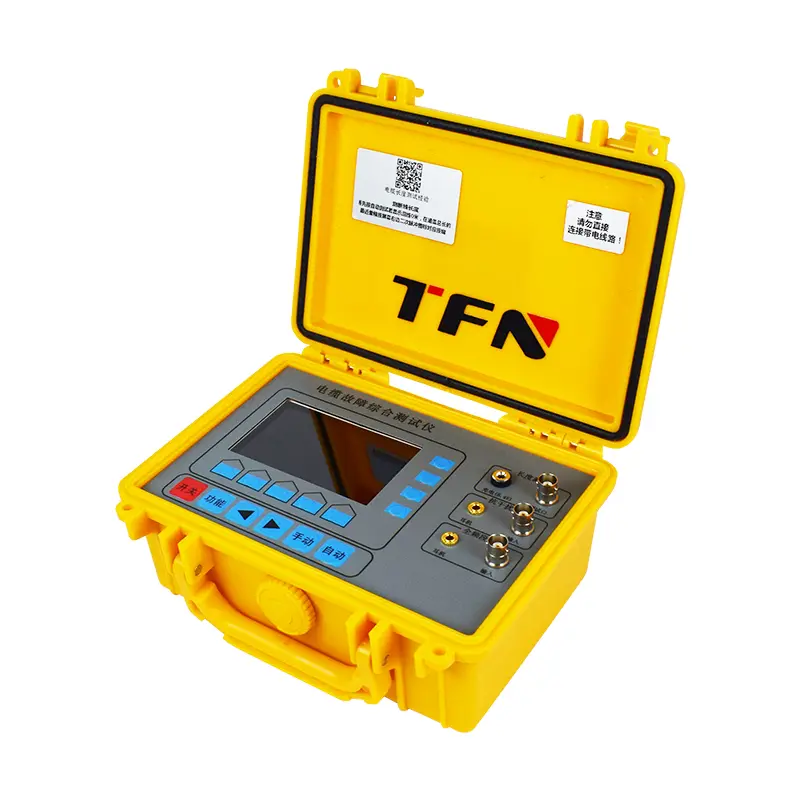

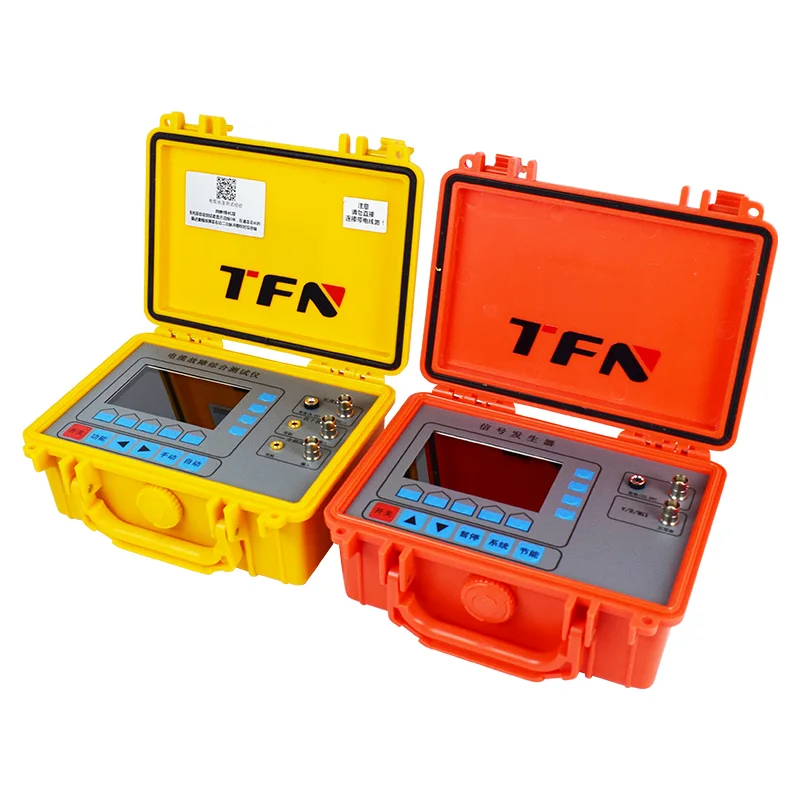

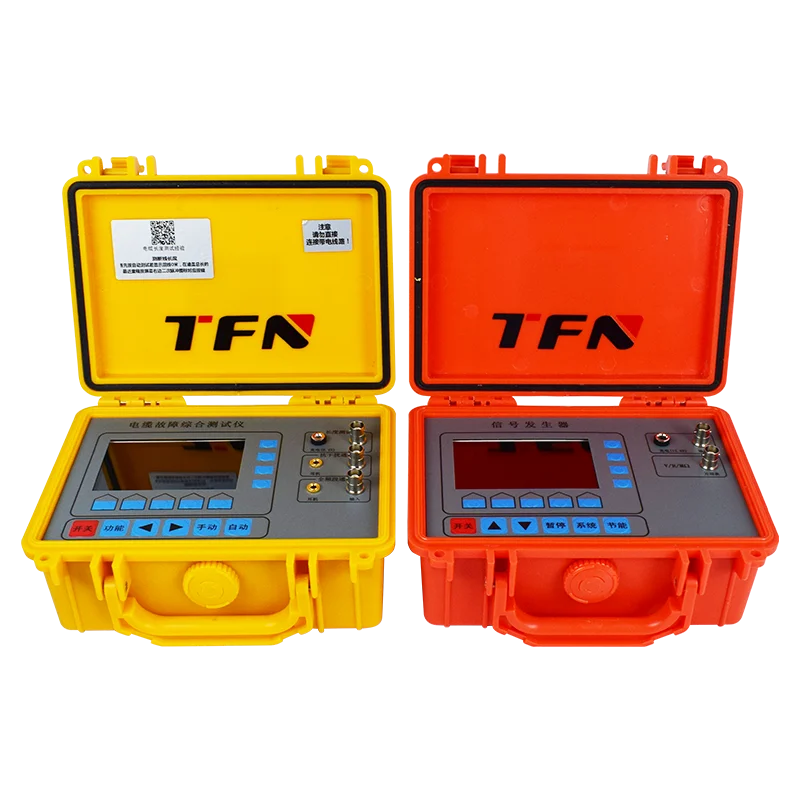

DG15M Cable Fault Tester

A multifunctional tester for complex electromagnetic environments. It integrates broken cable location, short circuits, ground leakage currents, and cable routing.

Highlights

In the power-off state, quickly determine the cable break, the distance to the short-circuit fault point and the total cable length
Accurately locate ground leakage faults caused by damaged insulation layers of buried lines (insulation resistance within 0.5 megohms)
Easily detect the path direction and buried depth of underground cables , facilitating construction and maintenance
Unique anti-interference channel uses a high-performance filtering circuit to effectively suppress power-frequency interference. Even in strong interference environments like under high-voltage lines, near transformers, and in cable trenches, the signal remains clear and stable, eliminating noise interference
Waveform comparison: It can simultaneously display and compare the waveforms of “good line” and “fault line”, and intuitively judge the fault type and location through the graphical interface, reducing dependence on operator experience
Manual test mode: supports manual setting of key parameters such as beam speed and gain to meet the in-depth customized testing needs of professional users
Built-in adjustable signal generator (adjustable amplitude, frequency and type) provides the best signal source for various test scenarios
The integrated multimeter function can directly measure voltage, loop resistance, and insulation resistance , allowing for quick on-site screening of line status in one step

Request a Quote

Use Cases

Power system: Troubleshooting of high and low voltage underground cables of 10kV and below.
Communication network: Maintenance of power cables and communication cables of tower communication base stations.
Municipal engineering: path finding and fault location of street light lines and traffic signal lines.
Agricultural irrigation: inspection and maintenance of underground cables in farmland irrigation areas.

Real Experiences with TFN Testers

Robert K.

“This device is incredibly versatile — it measures cable length, fault location, short circuits, and even the cable route and leakage points. It’s very precise and reliable, making troubleshooting much faster and easier”

Sarah L.

“I really like how easy it is to use. The results are accurate and consistent, and it helped us locate faults much faster than before. A great tool for everyday maintenance work.”

FAQs

Can DG15M be used under high-voltage lines?

Yes. This is the core advantage of the DG15M. Its high anti-interference design is specifically designed for such complex environments, ensuring signal stability.

Can armored iron cables be tested?

Yes. Whether it is armored cable or ordinary wire, DG15M can effectively test it.

What voltage level of cables can be tested?

It can test various types of cables ranging from several hundred volts to less than 10kV

What specific fault types can be detected?

It can comprehensively detect cable breakage, short circuits, and ground leakage faults, and can also detect the path of buried cables
