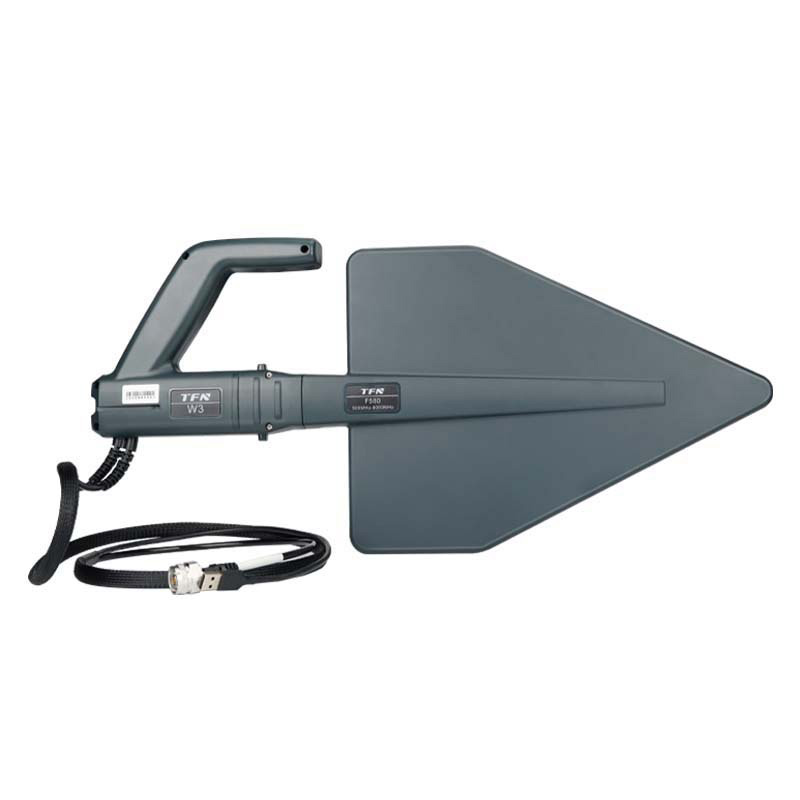

TF908 Directional Antenna System
A portable signal location and measurement device for radio monitoring, signal detection, and EMC testing, etc.
Highlights
- Four directional antennas cover from 9kHz to 8000MHz, meeting the needs of full-band signal testing
- Built-in amplifier with a typical gain of 16dB, effectively improving signal reception sensitivity
- Accurate directional positioning : cardioid linear pattern, front-to-back ratio better than 6~16dB, combined with a three-dimensional electronic compass, real-time display of the signal source direction
- The antenna and handle are lightweight, with a total weight of only 7.5kg (including packaging), suitable for field and mobile operations
- The handle integrates a “start measurement” button, which supports one-button triggering and is easy to operate
- Support USB or aviation plug power supply, SMA output interface is compatible with most test equipment
- Includes F20/F225/F250/F580 Antenna and W3 Smart Handle
Specifications
| Antenna Model | Frequency Range | Gain | Standing Wave Ratio | Polarization | Output interface |
| F20 | 9kHz–20MHz | 16 dB | <2.5 | Horizontal/Vertical | SMA 50Ω |
| F225 | 20MHz–250MHz | 16 dB | <2.5 | Horizontal/Vertical | SMA 50Ω |

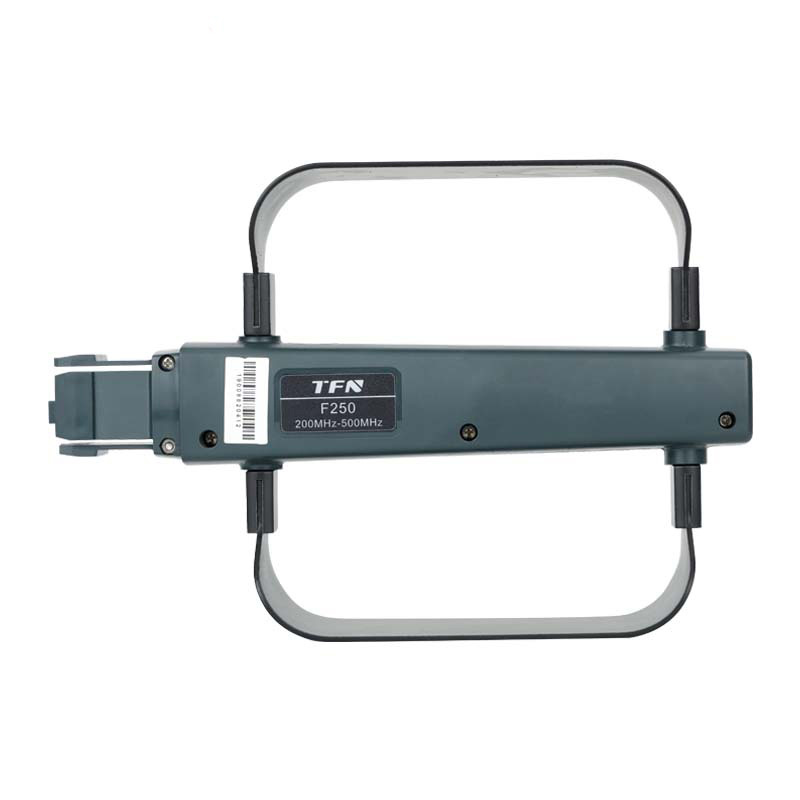

| F250 | 200MHz–500MHz | 16 dB | <2.5 | Horizontal/Vertical | SMA 50Ω |

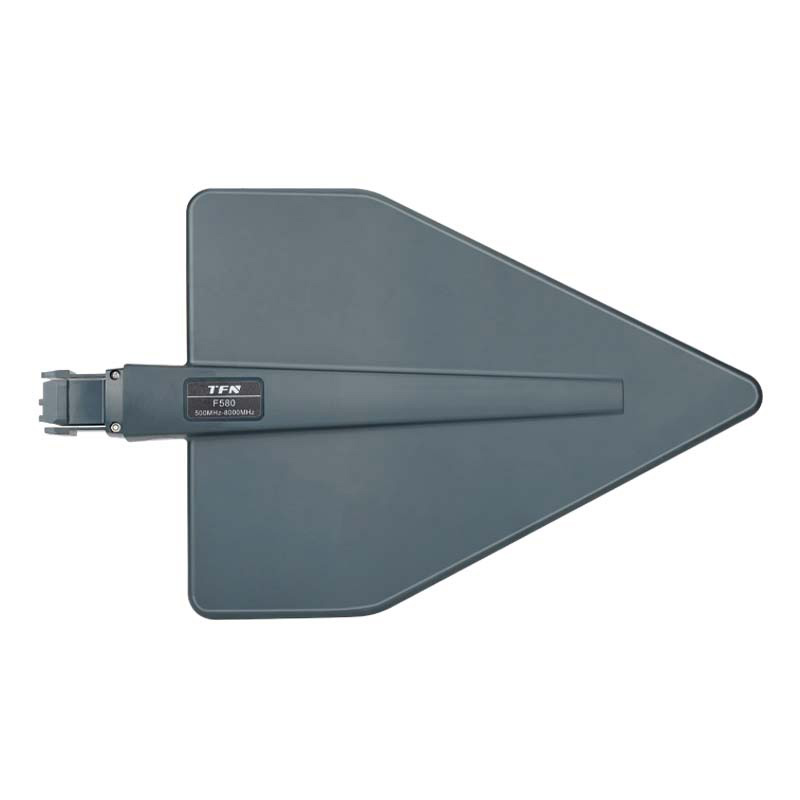

| F580 | 500MHz–8000MHz | 16 dB | <2.5 | Horizontal/Vertical | SMA 50Ω |
| W3 Smart Handle (Universal Controller) | |
| Data interface | USB 2.0 / 9-pin aviation plug |
| RF output | SMA (male) |
| Power supply | USB 5V / aviation plug 5V |
| Positioning module | Three-dimensional electronic compass |
| Power consumption | 100 mA |
Application Scenarios
- Radio Management and Spectrum Monitoring
- Signal source positioning and tracking (such as drone interference sources, illegal radio stations)
- Educational Experiments and Scientific Research Measurement
- Emergency communications and security inspections
- EMC pre-compliance testing
