150H/L Antenna Analyzers
High-performance handheld cable and antenna analyzers for maintenance and optimization of communication systems.
Highlights

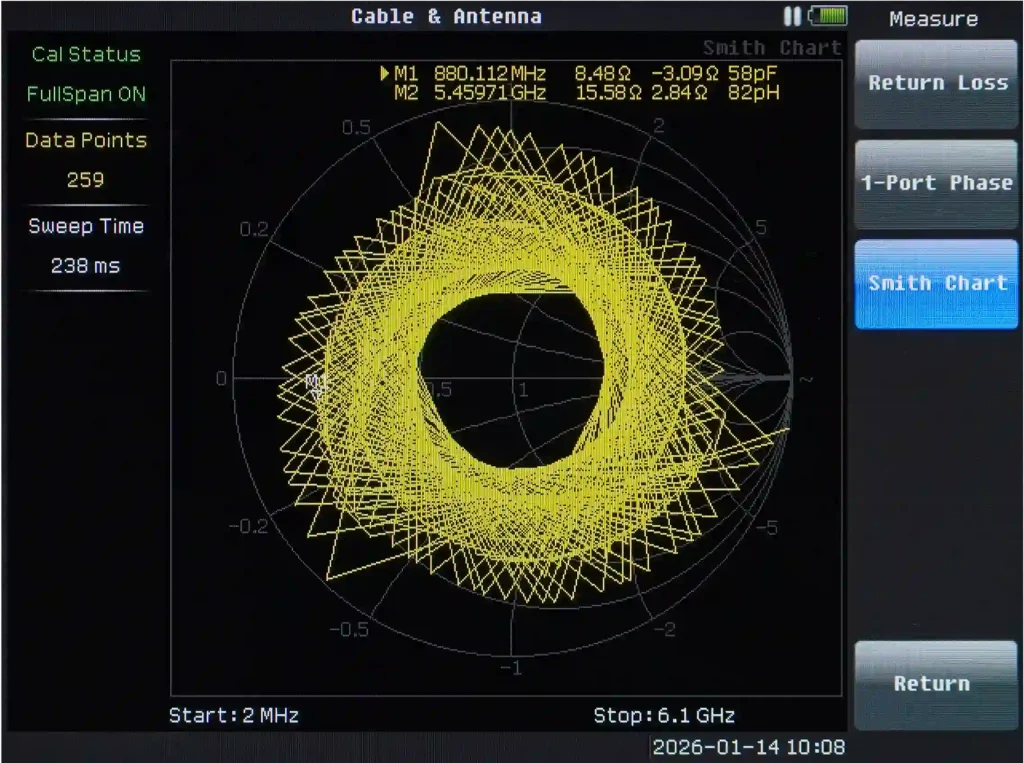

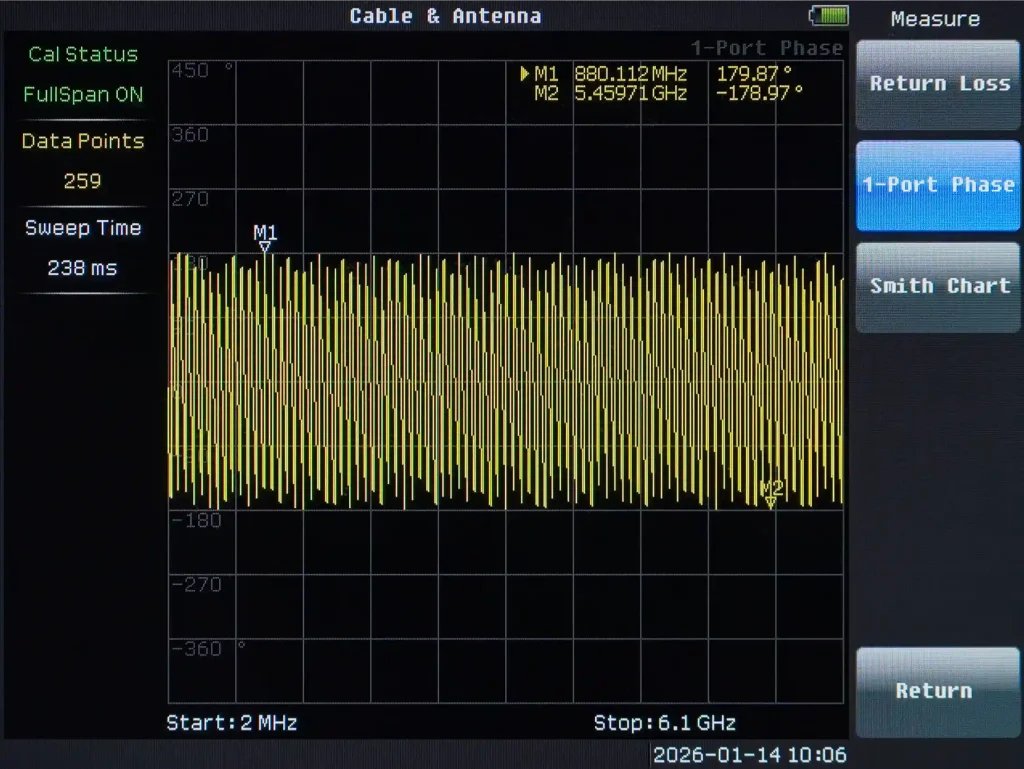

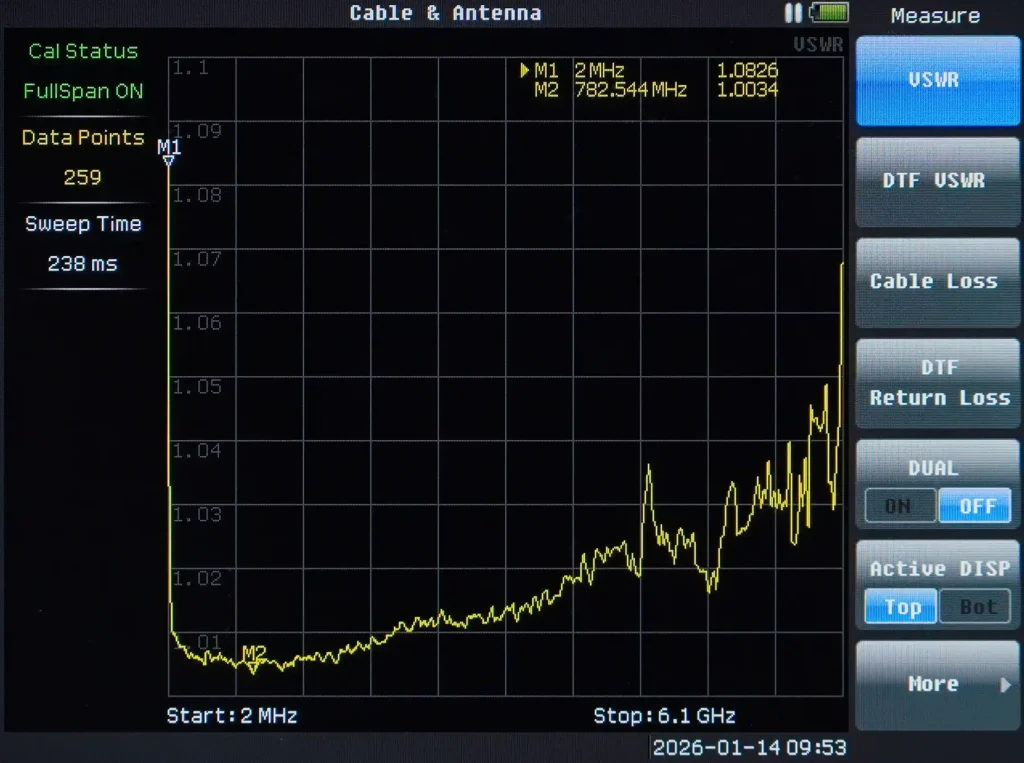

- Antenna and feeder system testing: Supports VSWR, return loss, Smith chart, phase, and Distance-to-fault location to evaluate antenna system performance.
- Optical communication testing: Equipped with a built-in OPM, fiber fault location (VFL) and USB fiber microscope inspection, making it easy to diagnose optical transmission issues.
- Power testing: Features a built-in terminal power meter and an optional external through-type power meter, enabling base station power measurements without requiring additional power supplies.
- Advanced calibration & connectivity: Integrated E-CAL electronic calibration module provides one-time calibration for all frequency bands; supports WiFi remote access and GPS location recording.
- Software support: Compatible with SITE WORKBENCH software, which enables automatic report generation and GPS information embedding.
- Rugged and reliable: Designed for harsh environments with strong RF interference resistance, impact protection, and durable construction.
Specifications
| Frequency range | 150L: 2 MHz ~ 4400 MHz 150H: 2 MHz ~ 6000 MHz |
| Number of data points | 130 / 259 / 517 / 1033 / 2065 |
| Output Level | > 0 dBm |
| Scan speed | 1 ms/point (return loss) |
| Directionality | < -42 dB (after mechanical calibration) |
| Maximum input power | +27 dBm |
| Battery life | > 8 hours |
| Operating temperature | -30 °C ~ +60 °C |
| Weight | 2 kg |
Application Scenarios
- Telecommunications operators: base station installation, inspection and maintenance
- Engineering contractor: indoor distribution system, wireless coverage project
- Research and teaching units: Communication principles teaching, radio frequency experiments
- Production testing: Antenna and feeder factory testing
