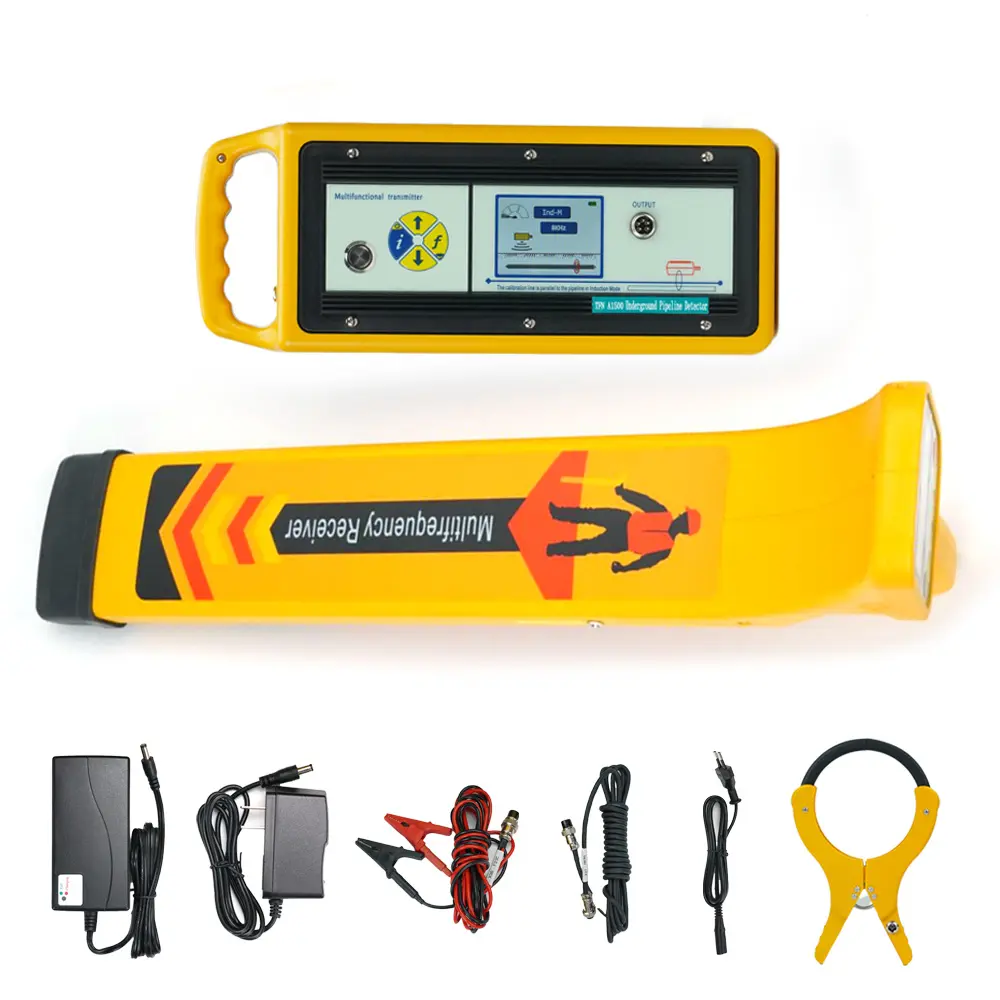

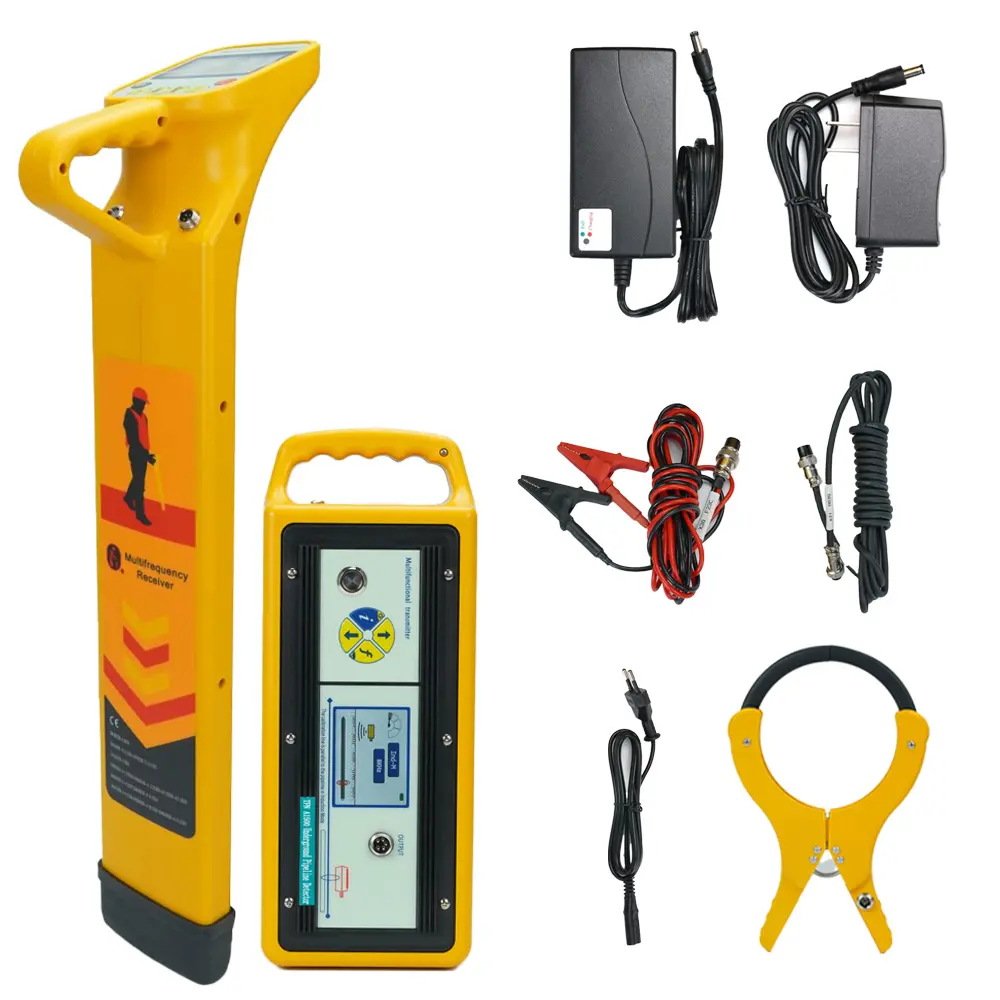

A1500 Underground Pipeline Locator

It onsists of a high-performance transmitter and an intelligent receiver, enabling accurate underground pipeline location for clear visibility.

Highlights

Advanved chips enables precise location, depth, and direction of underground pipelines. ≤5% error at depths≤3 meters; ≤10% error at depths >3 meters
Large power dynamic range, suitable for small signal reception and high power stimulus testing
Multiple signal application methods: The transmitter supports induction, direct connection, and clamp coupling methods to adapt to various complex site conditions.
Multi-Frequency Operating Mode: Provides a variety of active frequencies and a 50Hz power frequency, enabling optimal detection for pipelines of varying materials and depths.
Intelligent Reception and Display: The receiver features multiple positioning modes, including Peak, Wide, and Valley, along with left and right arrows for clear guidance. The large, high-contrast color LCD screen (transmitter color, receiver large) displays depth and signal strength in real time, providing intuitive readings.
10W transmitter output power, resulting in stronger signals and improved penetration, enabling detection depths exceeding 6 meters.

Request a Quote

Specifications

Transmitter
Output Power	10W
Output Voltage	60V
Output Current	1A
Operating Frequency	577Hz, 815Hz, 8kHz, 33kHz, 65.5kHz, 82kHz, 133kHz (can output three frequencies simultaneously)
Power Supply	Lithium-ion Battery Pack
Operating Time	≥5 hours (10W),≥8 hours (5W),≥12 hours (1W)
Display	Color LCD

Receiver
Positioning Accuracy	±5% (0-3m depth), ±10% (>3m depth)
Detection Depth	0-6m and above
Receiving Frequency	50Hz, 577Hz, 815Hz, 8kHz, 33kHz, 65.5kHz, 82kHz, 133kHz
Gain Control	Auto/Manual, 0-100dB
Locating Modes	Peak, Wide Peak, Valley
Power Supply	Lithium-ion Battery Pack
Operating Time	≥8 hours
Display	Large, high-contrast LCD

Application Scenarios

The TFN A1500 is widely used in the following fields:

Municipal Construction: Water, Drain, and Gas Pipeline Construction and Maintenance

Power Systems: Underground Cable Path Finding and Fault Location

Telecommunications Engineering: Laying and Inspection of Optical and Telecommunication Cables

Petrochemical Engineering: Underground Pipeline Network Survey and Management in Industrial Plants

Railway and Rail Transit: Underground Facility Safety Survey

Construction: Pre-construction Underground Pipeline Survey to Ensure Construction Safety
