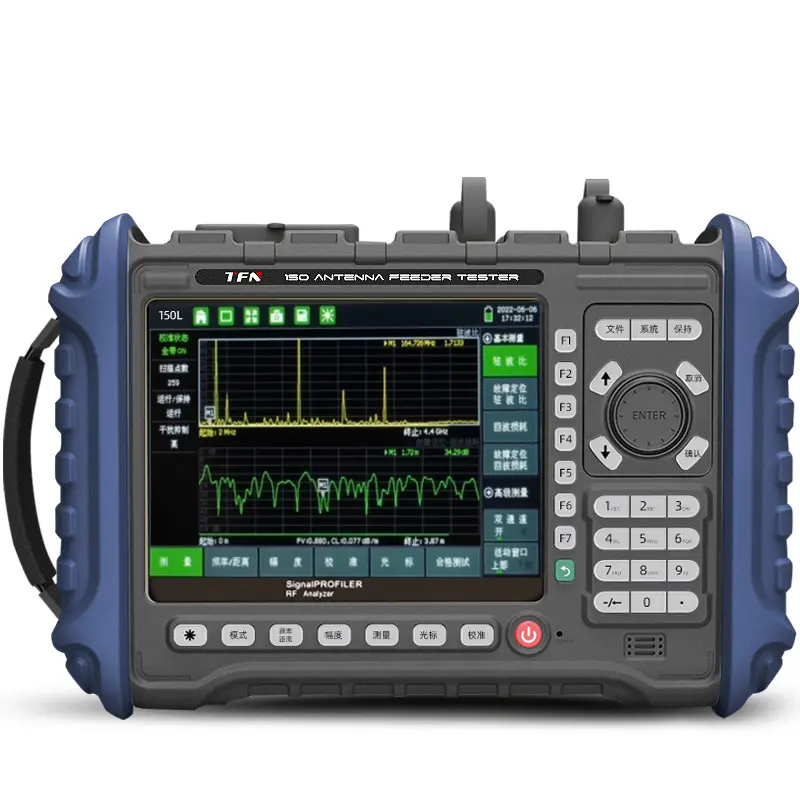

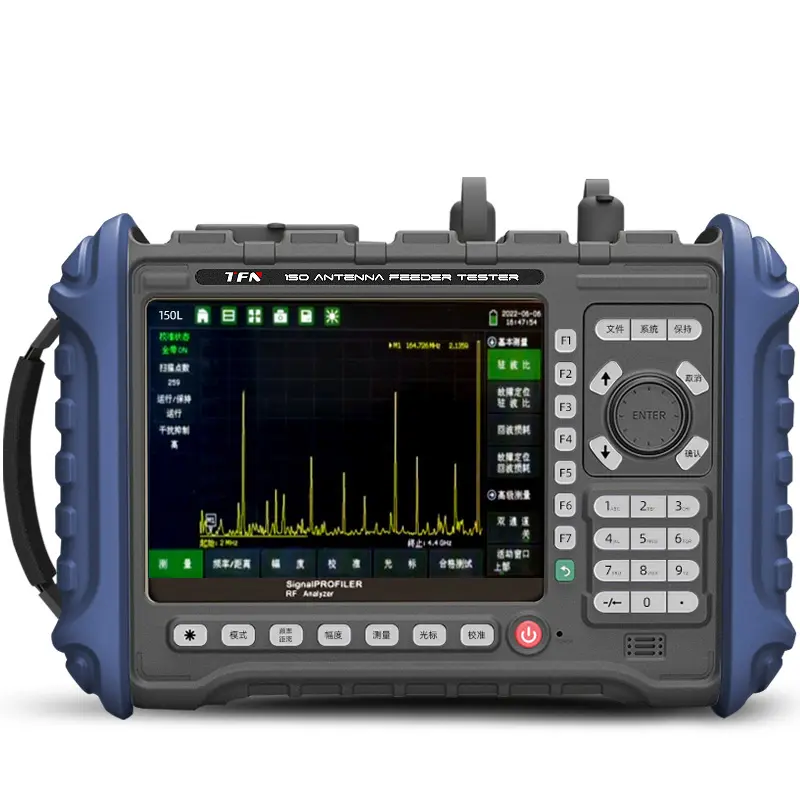

150H/L Antenna Analyzers

High-performance portable devices for maintenance and optimization of modern communication base stations.

Highlights

Antenna and feeder system testing: Including standing wave ratio (VSWR), return loss, Smith chart, phase, DTF fault location, etc., to accurately judge the status of the antenna and feeder system.
Optical communication testing capabilities: Built-in OPM, support for fiber fault location (VFL), and USB fiber optic magnifier detection, easily addressing optical transmission link problems.
Built-in terminal power meter, optional external through-type power meter, supports base station power testing without additional power supply.
Built-in E-CAL electronic calibration module, one-time calibration applies to all frequency bands; supports WiFi remote access and GPS geographic information recording.
Supporting SITE WORKBENCH software, which supports automatic report generation and GPS information embedding
Rugged and durable design, anti-RF interference, impact resistance, adaptable to harsh working environments

Request a Quote

Specifications

Frequency range	150L: 2MHz ~ 4400MHz 150H: 2MHz ~ 6000MHz
Number of data points	130 / 259 / 517 / 1033 / 2065
Output Level	> 0dBm
Scan speed	1ms/point (return loss)
Directionality	< -42dB (after mechanical calibration)
Maximum input power	+27 dBm
Battery life	> 8 hours
Operating temperature	-30°C ~ +60°C
Weight	2 kg

150H Download

Application Scenarios

Telecommunications operators: base station installation, inspection and maintenance
Engineering contractor: indoor distribution system, wireless coverage project
Research and teaching units: Communication principles teaching, radio frequency experiments
Production testing: Antenna and feeder product factory testing
